QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Seat Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

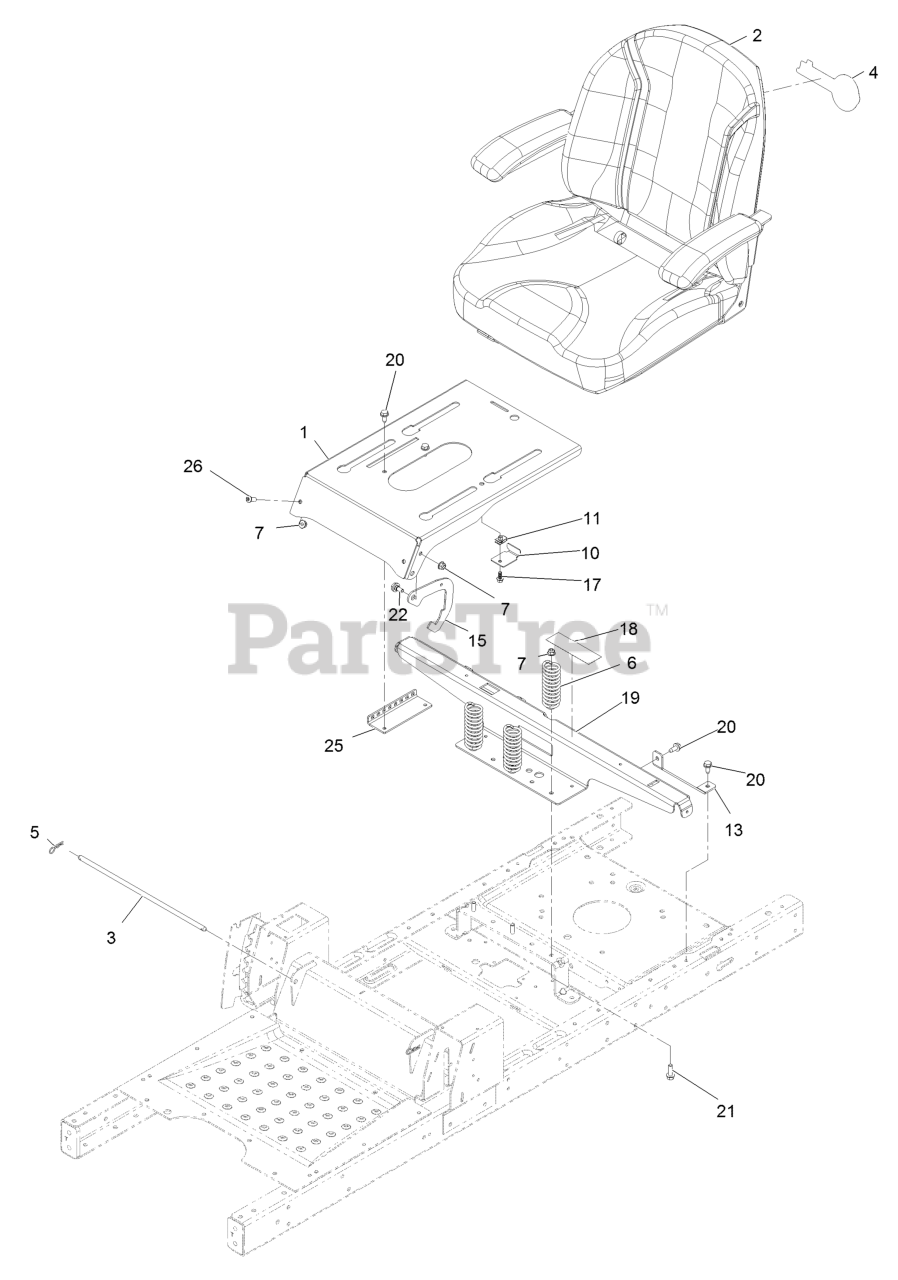

Seat Assembly Parts Diagram

  • Title

1

Exmark 133-4341-03

136-5571-03
(Superseded to 136-5571-03)

$63.99

$

Usually ships in 3-6 days

0

2

Exmark 131-4148

SEAT ASM, EXMARK
(Superseded to 142-8124)

$718.99

$

Usually ships in 3-6 days

0

3

Exmark 119-3433

ROD-PIVOT, NARROW

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6971

DECAL-EXMARK LOGO

$7.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 10706-9

Nut-Retainer-Panel 1/4-20

$2.99

$

In Stock, Qty 20+

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 132-9353

LATCH-SEAT
(Superseded to 138-7250)

$8.49

$

In Stock, only 1 left!

0

17

Exmark 99-6810

SCREW-HHF

$3.49

$

In Stock, only 2 left!

0

18

Exmark 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 131-1040-03

SUPPORT-POD

$102.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

22

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 12

0

25

Exmark 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0
