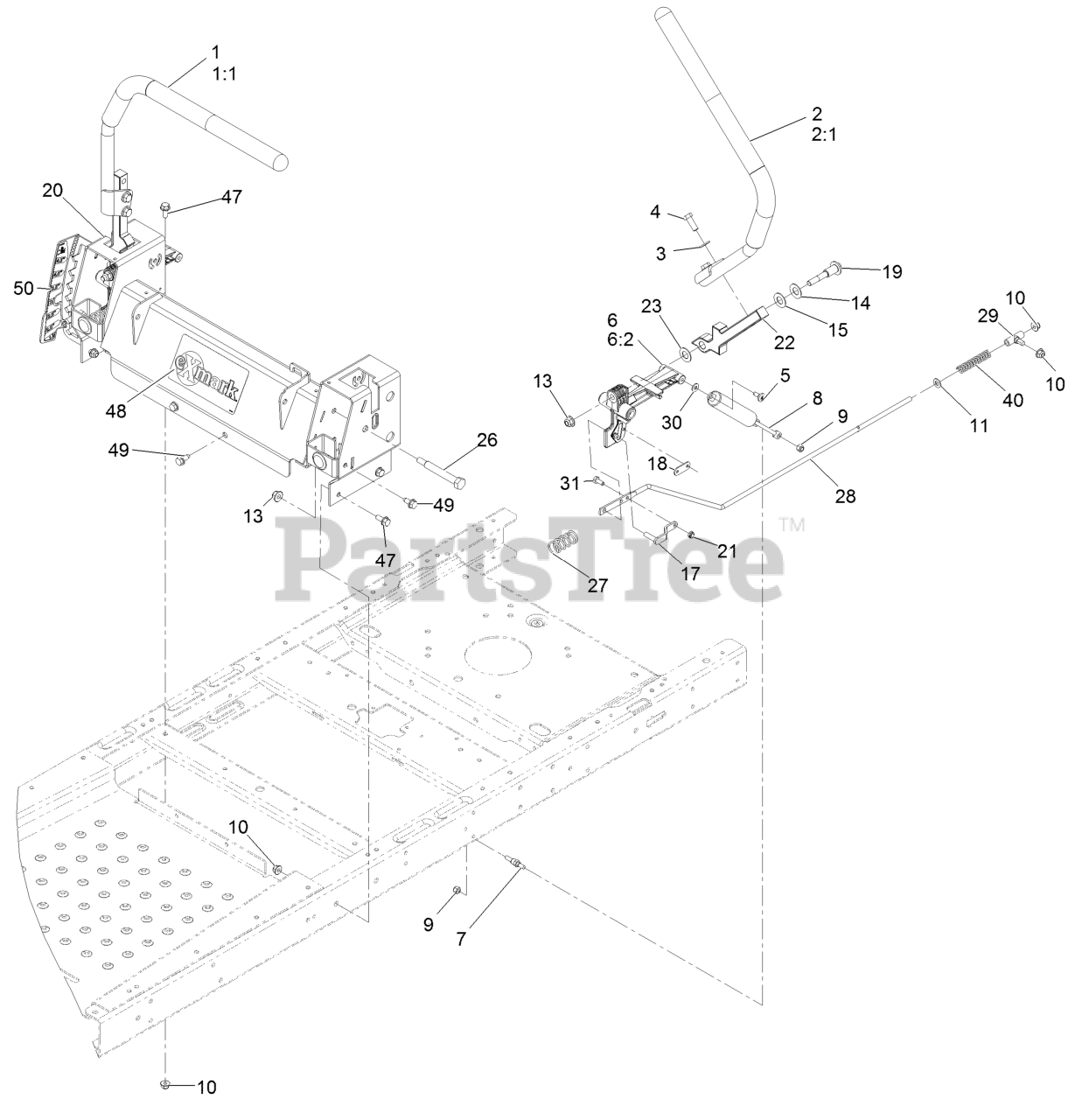

QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 315000000 - 315999999) (2015) Motion Control Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 121-0731

HANDLE-CONTROL, RH

$72.99

$

In Stock, only 2 left!

0

1:1

Exmark 121-0726

GRIP

$14.99

$

In Stock, only 4 left!

0

2

Exmark 121-0730

HANDLE-CONTROL, LH

$72.99

$

In Stock, only 4 left!

0

2:1

Exmark 121-0726

GRIP

$14.99

$

In Stock, only 4 left!

0

3

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Exmark 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

6

Exmark 119-3470

ACTUATOR ARM ASM

$26.99

$

In Stock, only 1 left!

0

6:2

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

7

Exmark 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 2 left!

0

8

Exmark 131-0964

DAMPER

$79.99

$

In Stock, only 3 left!

0

9

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

15

Exmark 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

17

Exmark 119-3303

121-1753
(Superseded to 121-1753)

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 119-8948

PLATE-STOP, HYDRO

$2.99

$

Usually ships in 3-6 days

0

19

Exmark 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 7

0

20

Exmark 131-1093-03

Control Box ASM

$

$

Not available

21

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Exmark 115-5098-05

133-9299-05
(Superseded to 133-9299-05)

$47.99

$

In Stock, Qty 6

0

23

Exmark 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

26

Exmark 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

27

Exmark 119-8876

SPRING-RETURN

$2.99

$

In Stock, Qty 8

0

28

Exmark 117-5388

ROD-HYDRO
(Superseded to 138-7217)

$12.99

$

In Stock, only 2 left!

0

29

Exmark 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$12.99

$

In Stock, only 1 left!

0

30

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

47

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 16

0

48

Exmark 116-4219

DECAL

$15.99

$

In Stock, only 1 left!

0

49

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

50

Exmark 119-8871

DECAL-HOC

$5.49

$

Usually ships in 3-6 days
