QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 315000000 - 315999999) (2015) Fuel System Engine Assembly No. 121-0412 Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

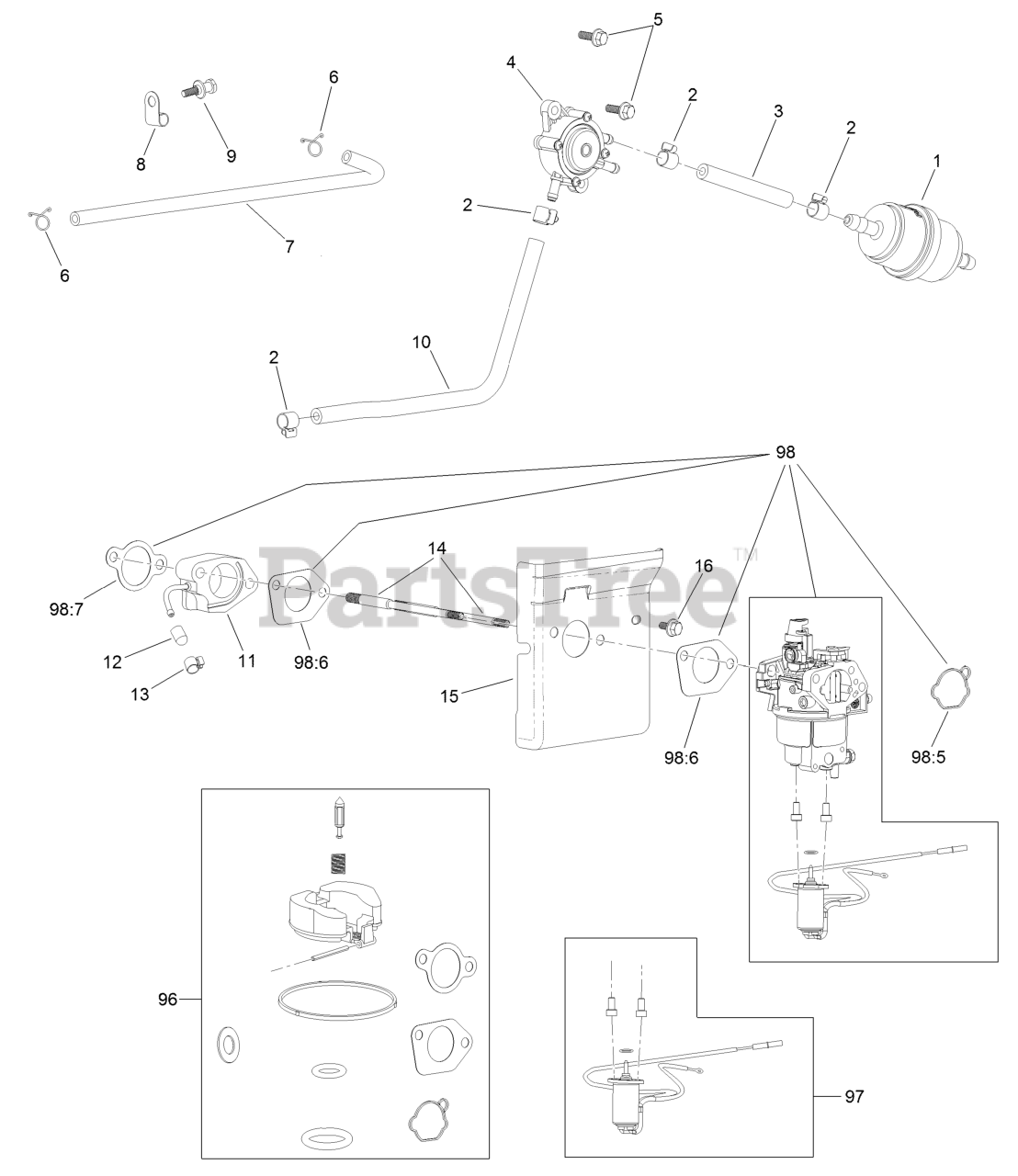

Fuel System Engine Assembly No. 121-0412 Parts Diagram

  • Title
1

Exmark 127-9204

133-1563
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

2

Exmark 120-4251

CLAMP-FUEL LINE
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 120-4371

LINE-FUEL

$6.49

$

Usually ships in 3-6 days

0

4

Exmark 120-4353

PUMP-PULSE, FUEL
(Superseded to 139-0685)

$79.99

$

Usually ships in 3-6 days

0

5

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

6

Exmark 121-0114

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 120-4372

LINE-PULSE
(Superseded to 136-7830)

$7.99

$

In Stock, only 1 left!

0

8

Exmark 120-4287

CLAMP-J

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 120-4217

SCREW-SHOULDER, HH

$7.99

$

In Stock, only 3 left!

0

10

Exmark 120-4370

LINE-FUEL

$15.99

$

Usually ships in 3-6 days

0

11

Exmark 127-9181

INSULATOR-CARBURETOR
(Superseded to 136-7835)

$6.99

$

Usually ships in 3-6 days

0

12

Exmark 127-9189

CAP-SEAL

$2.99

$

In Stock, only 1 left!

0

13

Exmark 127-9187

CLAMP-HOSE

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 120-4202

STUD-MOUNT, CARBURETOR

$7.99

$

In Stock, only 1 left!

0

15

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

96

Exmark 127-9194

CARB REPAIR KIT WITH GASK

$28.99

$

In Stock, only 1 left!

0

97

Exmark 127-9190

SOLENOID KIT

$45.99

$

In Stock, only 1 left!

0

98

Exmark 127-9183

136-7826
(Superseded to 136-7826)

$124.99

$

In Stock, only 1 left!

0

98:5

Exmark 127-9185

GASKET-CARBURETOR

$5.49

$

In Stock, only 1 left!

0

98:6

Exmark 120-4247

GASKET-CARBURETOR

$2.99

$

In Stock, Qty 8

0

98:7

Exmark 120-4250

GASKET-CARBURETOR

$2.99

$

In Stock, Qty 8

0

99

Exmark 121-4243

HIGH ALTITUDE KIT-1P92

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
