QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 315000000 - 315999999) (2015) Fuel Delivery Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

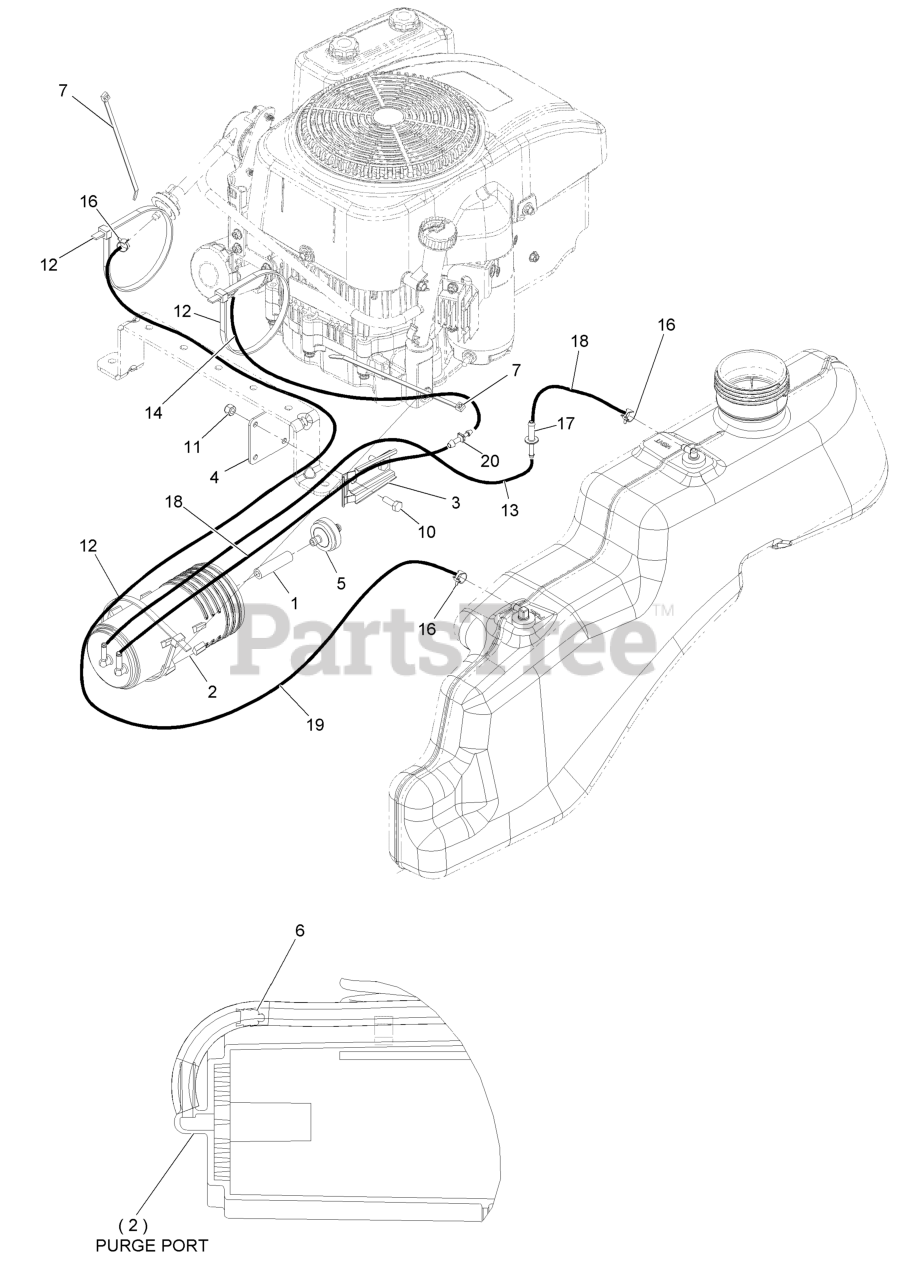

Fuel Delivery Assembly Parts Diagram

  • Title

1

Exmark 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

2

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

Usually ships in 3-6 days

0

3

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

4

Exmark 119-8992-03

PLATE-ADAPTER

$9.49

$

Usually ships in 3-6 days

0

5

Exmark 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, Qty 12

0

6

Exmark 120-2038

CARTRIDGE-VALVE, CHECK

$45.99

$

Usually ships in 3-6 days

0

7

Exmark 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

10

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Exmark 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

13

Exmark 1-213003

1-213131
(Superseded to 1-213131)

$

$

Not available

14

Exmark 51-3212

HOSE-FUEL

$15.99

$

In Stock, only 2 left!

0

16

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Exmark 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, only 1 left!

0

18

Exmark 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

19

Exmark 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

20

Exmark 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0
