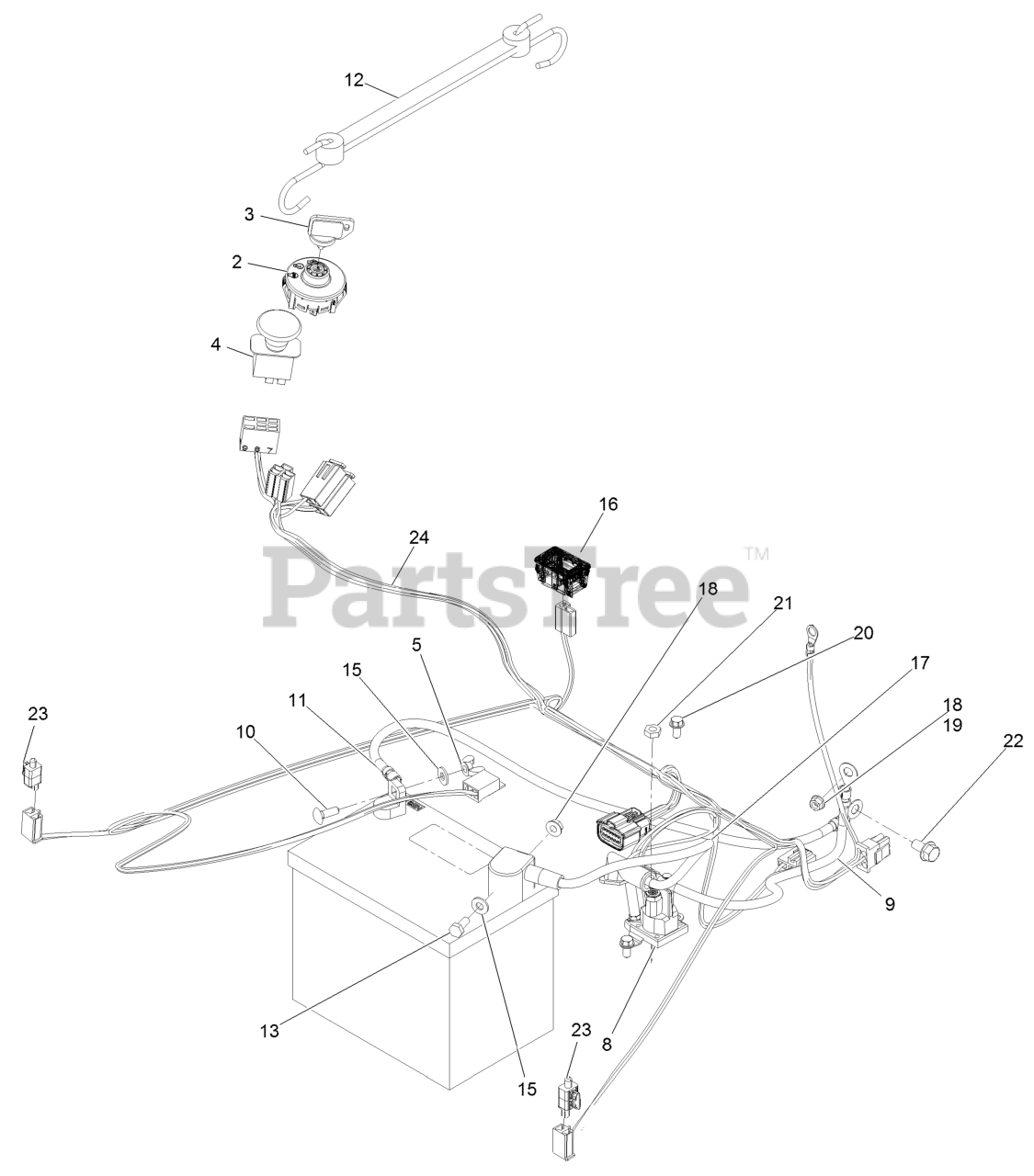

QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 315000000 - 315999999) (2015) Electrical Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

Electrical Assembly Parts Diagram

  • Title

1

Exmark 105-1692

BATTERY

$

$

Not available

2

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$35.99

$

In Stock, Qty 20+

0

3

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

4

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

5

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

8

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

9

Exmark 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

In Stock, only 4 left!

0

10

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Exmark 119-8899

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0

12

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Exmark 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

17

Exmark 119-8897

CABLE-BATTERY, RED

$22.99

$

In Stock, only 1 left!

0

18

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0
