QTS452CEM34200 - Exmark 34" Quest S-Series Zero-Turn Mower, Exmark 452 (SN: 315000000 - 315999999) (2015) Deck Lift Assembly Parts Diagram

34" Quest S-Series Zero-Turn Mower, Exmark 452

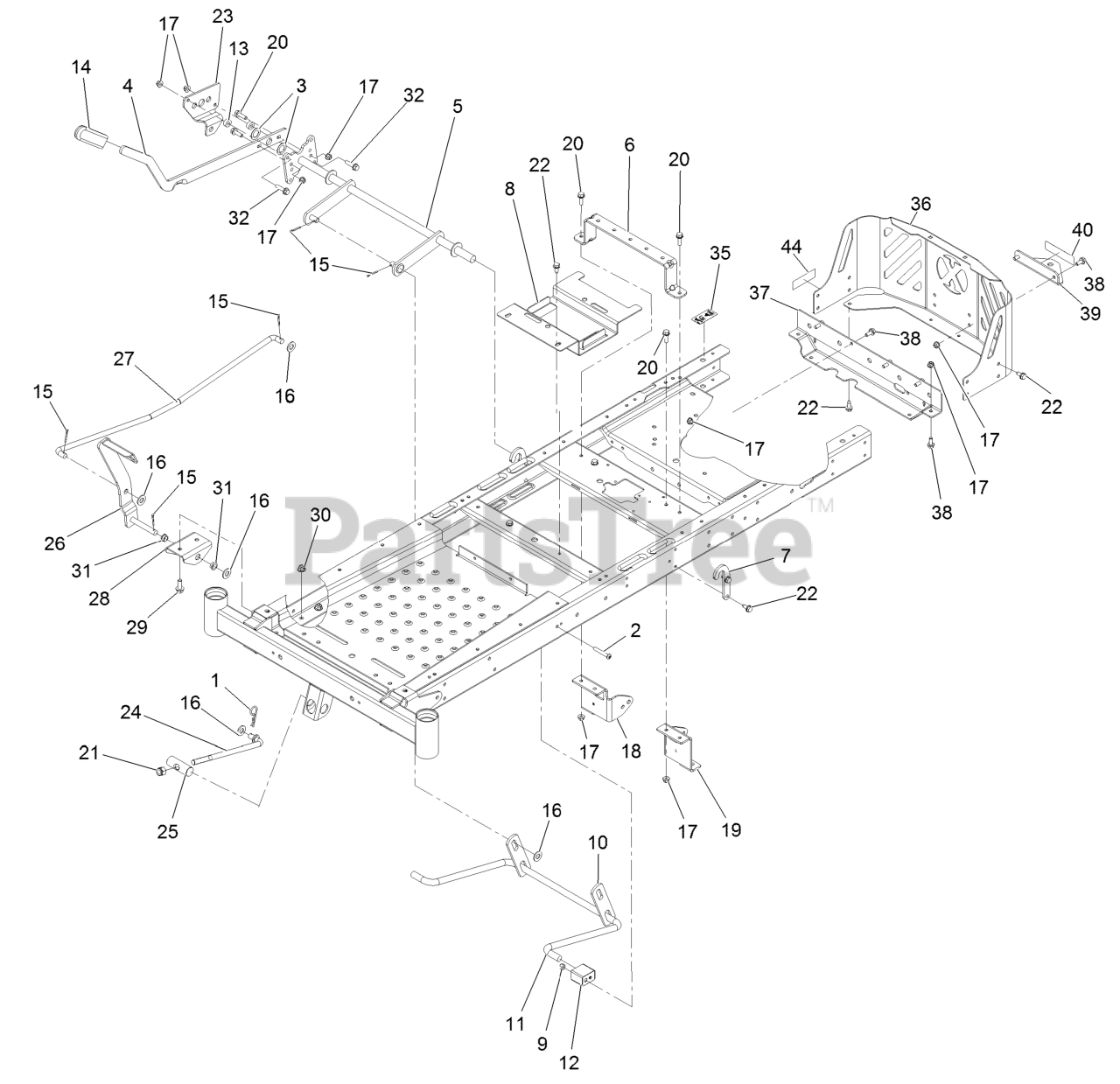

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

2

Exmark 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 20+

0

3

Exmark 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

4

Exmark 119-3427-03

LEVER-LIFT

$25.99

$

In Stock, only 1 left!

0

5

Exmark 117-7346-03

132-6872-03
(Superseded to 132-6872-03)

$59.99

$

In Stock, only 1 left!

0

6

Exmark 119-3435-03

BRACE-SEAT, REAR (NARROW)

$21.99

$

Usually ships in 3-6 days

0

7

Exmark 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

8

Exmark 131-0914-03

BRACKET-BATTERY
(Superseded to 135-0507-03)

$27.99

$

Usually ships in 3-6 days

0

9

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 16

0

11

Exmark 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$35.99

$

In Stock, Qty 10

0

12

Exmark 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, Qty 19

0

13

Exmark 121-1759

SPACER

$2.99

$

In Stock, only 1 left!

0

14

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

15

Exmark 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 131-0901-01

MOUNT-HYDRO, FRONT (RH)
(Superseded to 137-7020-01)

$15.99

$

Usually ships in 3-6 days

0

19

Exmark 131-0902-01

MOUNT-HYDRO, FRONT (LH)
(Superseded to 139-3211-01)

$15.99

$

In Stock, only 1 left!

0

20

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

23

Exmark 131-3933

PLATE-FOOTLIFT

$17.99

$

In Stock, only 1 left!

0

24

Exmark 131-3945

ROD-MOUNT, DECK

$43.99

$

In Stock, Qty 11

0

25

Exmark 119-8810

PIN-PIVOT

$17.99

$

In Stock, Qty 20+

0

26

Exmark 120-2276-03

PEDAL

$75.99

$

Usually ships in 3-6 days

0

27

Exmark 120-2242

ROD-FOOTLIFT

$23.99

$

Usually ships in 3-6 days

0

28

Exmark 120-2294-03

BRACKET-FOOTLIFT

$13.99

$

Usually ships in 3-6 days

0

29

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

30

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

32

Exmark 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

35

Exmark 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

36

Exmark 131-1019-03

GUARD-ENGINE, NARROW

$123.99

$

Usually ships in 3-6 days

0

37

Exmark 130-6950-01

CROSSMEMBER-REAR, NARROW

$41.99

$

Usually ships in 3-6 days

0

38

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

39

Exmark 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 2 left!

0

40

Exmark 131-4036

DECAL

$2.99

$

In Stock, only 3 left!

0

44

Exmark 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
