QTE735KC502 - Exmark 50" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) Seat Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kohler KT735

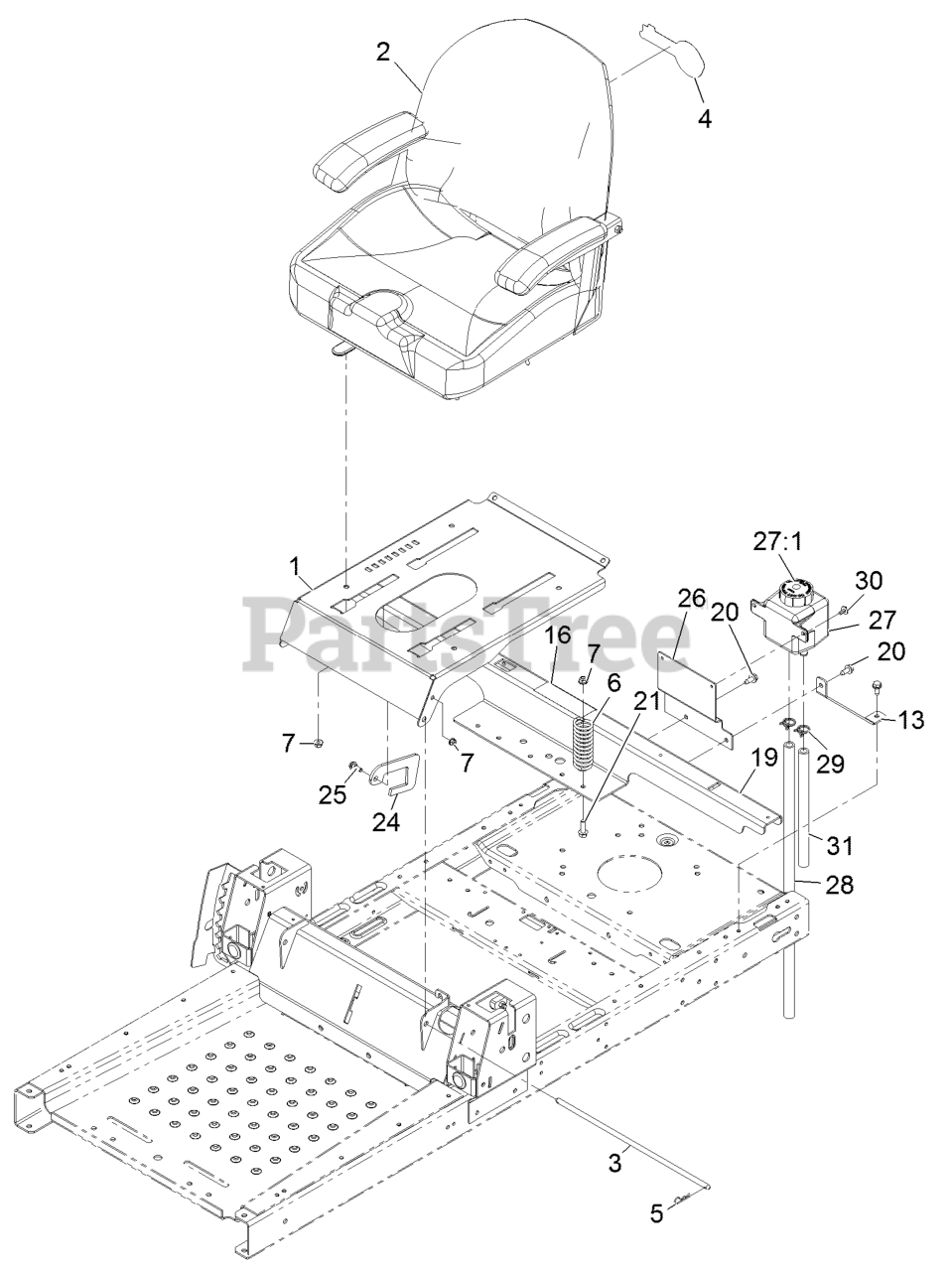

Seat Assembly Parts Diagram

  • Title

1

Exmark 119-3390-03

PAN-SEAT

$100.99

$

Usually ships in 3-6 days

0

2

Exmark 121-5670

SEAT ASM

$

$

Not available

3

Exmark 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5464

DECAL

$16.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 119-3414-03

SUPPORT-POD
(Superseded to 131-1039-03)

$124.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

24

Exmark 120-5512

STOP-SEAT

$20.99

$

Usually ships in 3-6 days

0

25

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 20+

0

26

Exmark 120-7970-03

MOUNT-TANK

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

27:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

28

Exmark 121-2951

HOSE-OVERFLOW

$9.49

$

Usually ships in 3-6 days

0

29

Exmark 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

30

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

31

Exmark 121-2952

HOSE-OVERFLOW

$5.49

$

Usually ships in 3-6 days

0
