QTE735KC501 - Exmark 50" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) Seat Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Kohler KT735

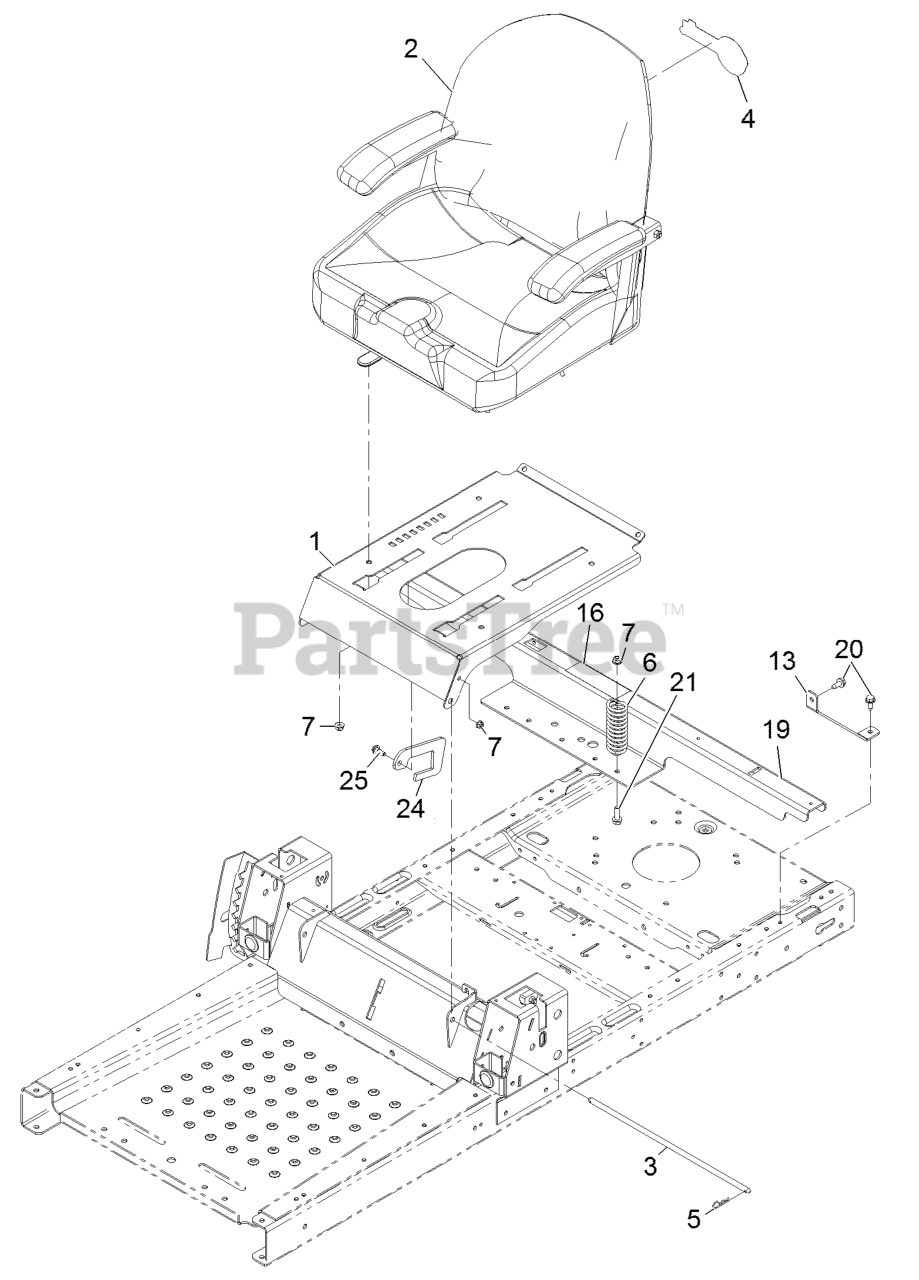

Seat Assembly Parts Diagram

  • Title

1

Exmark 119-3390-03

PAN-SEAT

$108.99

$

Usually ships in 3-6 days

0

2

Exmark 121-5670

SEAT ASM

$683.99

$

Usually ships in 3-6 days

0

3

Exmark 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

4

Exmark 120-5464

DECAL

$15.99

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 119-3414-03

SUPPORT-POD
(Superseded to 131-1039-03)

$120.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

24

Exmark 120-5512

STOP-SEAT

$18.99

$

Usually ships in 3-6 days

0

25

Exmark 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0
