QTE735KC421 - Exmark 42" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) Deck Lift Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kohler KT735

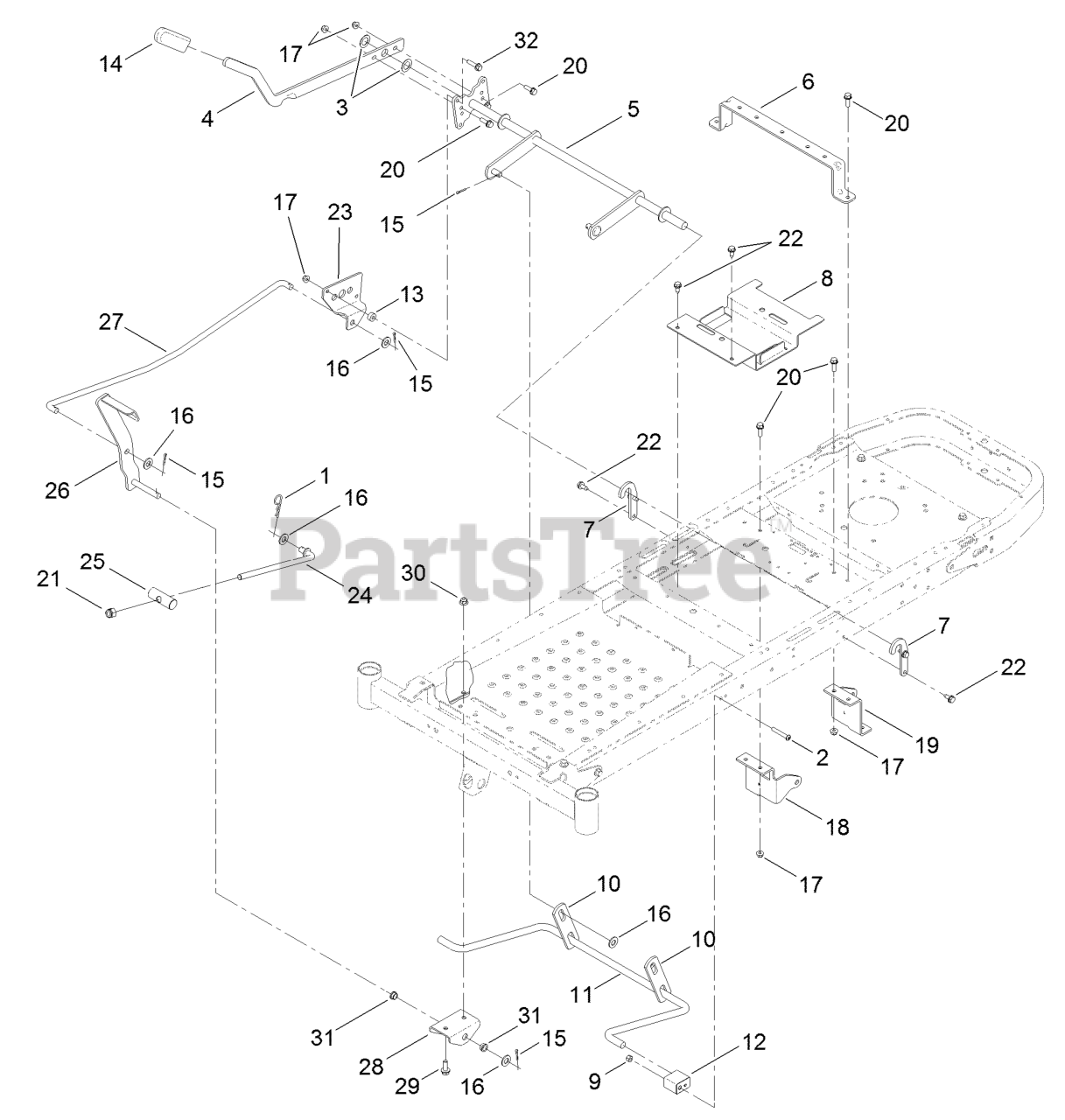

Deck Lift Assembly Parts Diagram

  • Title
1

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

2

Exmark 120-5499

SCREW-HSBH

$2.99

$

In Stock, Qty 17

0

3

Exmark 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

4

Exmark 119-3427-03

LEVER-LIFT

$25.99

$

Usually ships in 3-6 days

0

5

Exmark 117-7346-03

132-6872-03
(Superseded to 132-6872-03)

$53.99

$

Usually ships in 3-6 days

0

6

Exmark 119-3435-03

BRACE-SEAT, REAR (NARROW)

$21.99

$

Usually ships in 3-6 days

0

7

Exmark 119-8875

BRACKET-LIFT
(Superseded to 138-7233)

$6.49

$

In Stock, only 3 left!

0

8

Exmark 119-3406-03

BRACKET-BATTERY
(Superseded to 135-0507-03)

$27.99

$

Usually ships in 3-6 days

0

9

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Exmark 108-7840

LINK-LIFT
(Superseded to 138-7235)

$7.99

$

In Stock, Qty 8

0

11

Exmark 108-7839

ARM-LIFT, REAR
(Superseded to 138-7234)

$35.99

$

In Stock, only 4 left!

0

12

Exmark 108-7845

BLOCK-PIVOT

$17.99

$

In Stock, only 2 left!

0

13

$2.99

$

In Stock, only 1 left!

0

14

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

15

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

18

Exmark 119-8861-01

MOUNT-HYDRO, FRONT (RH)

$19.99

$

Usually ships in 3-6 days

0

19

Exmark 119-8862-01

131-0902-01
(Superseded to 139-3211-01)

$14.99

$

In Stock, only 1 left!

0

20

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

21

Exmark 3296-19

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

22

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 16

0

23

Exmark 120-2275

PLATE-FOOTLIFT

$33.99

$

Usually ships in 3-6 days

0

24

Exmark 104-8047

131-3945
(Superseded to 131-3945)

$43.99

$

In Stock, only 2 left!

0

25

Exmark 119-8810

PIN-PIVOT

$17.99

$

In Stock, only 2 left!

0

26

Exmark 120-2276-01

PEDAL ASM

$75.99

$

Usually ships in 3-6 days

0

27

Exmark 120-2242

ROD-FOOTLIFT

$23.99

$

Usually ships in 3-6 days

0

28

Exmark 120-2294-01

BRACKET-FOOTLIFT

$13.99

$

Usually ships in 3-6 days

0

29

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

30

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

31

Exmark 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

32

Exmark 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0
