QTE735KC421 - Exmark 42" Quest E-Series Zero-Turn Mower, Kohler KT735 (SN: 314000000 - 314999999) (2014) 42 Inch Deck Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kohler KT735

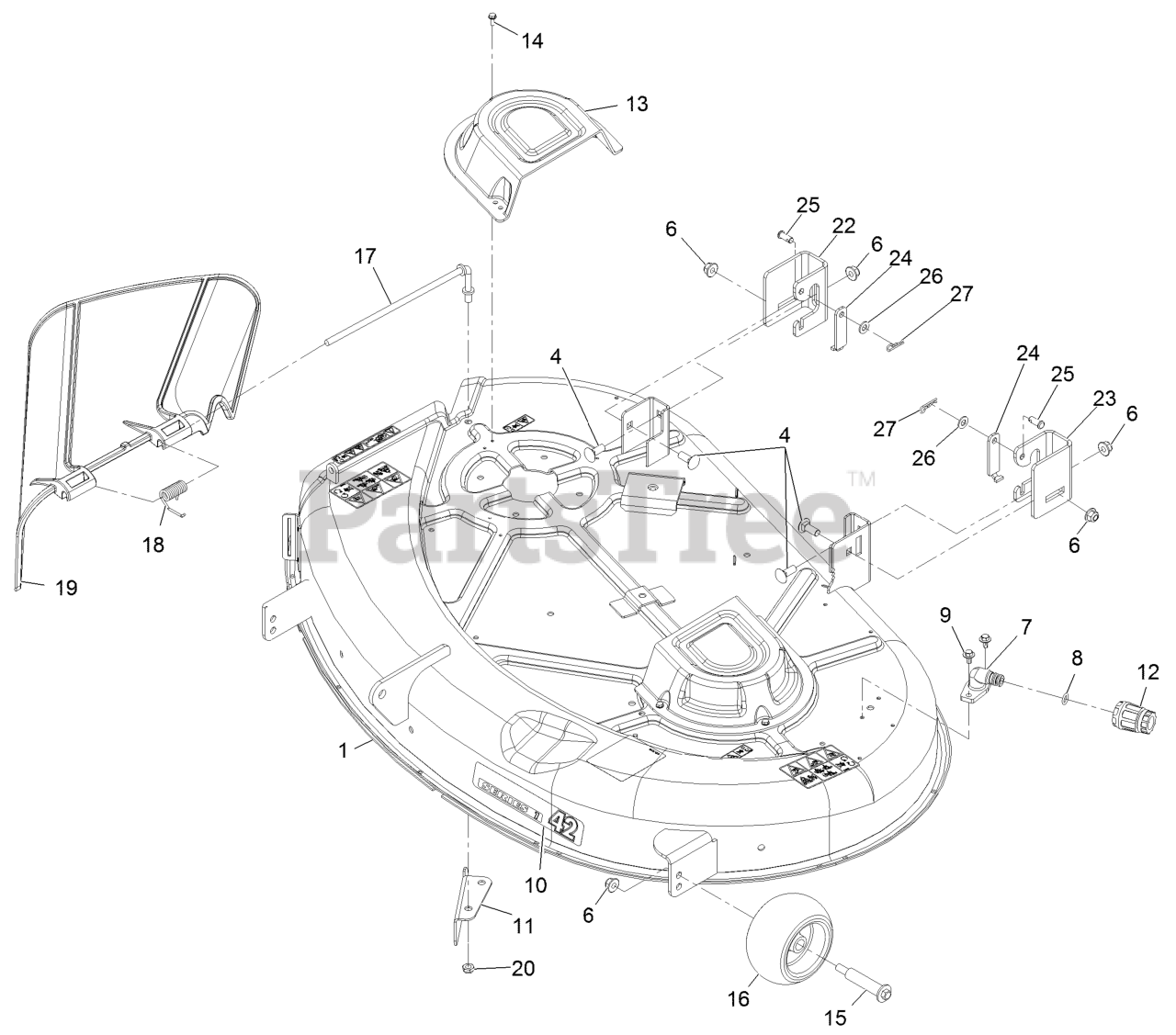

42 Inch Deck Assembly Parts Diagram

  • Title

1

Exmark 119-8840

42 INCH DECK AND DECAL AS

$1003.99

$

Usually ships in 3-6 days

0

4

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

6

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

10

Exmark 126-1769

DECAL-SERIES 1 - 42

$

$

Not available

11

Exmark 112-3983-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

12

Exmark 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

13

Exmark 108-7889

COVER-BELT

$34.99

$

In Stock, only 2 left!

0

14

Exmark 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

15

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

16

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

17

Exmark 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 5

0

18

Exmark 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

19

Exmark 112-3951

DEFLECTOR

$62.99

$

In Stock, Qty 20+

0

20

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

22

Exmark 130-6888

BRACKET - HANGER, RR

$49.99

$

In Stock, only 1 left!

0

23

Exmark 130-6890

BRACKET - HANGER, LR

$49.99

$

Usually ships in 3-6 days

0

24

Exmark 130-6891

LINK - DECK RETENTION

$9.99

$

In Stock, only 2 left!

0

25

Exmark 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 10

0

26

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
