QTE708GEM50200 - Exmark 50" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 316000000 - 399999999) (2016) Seat Assembly Parts Diagram

50" Quest E-Series Zero-Turn Mower, Exmark 708

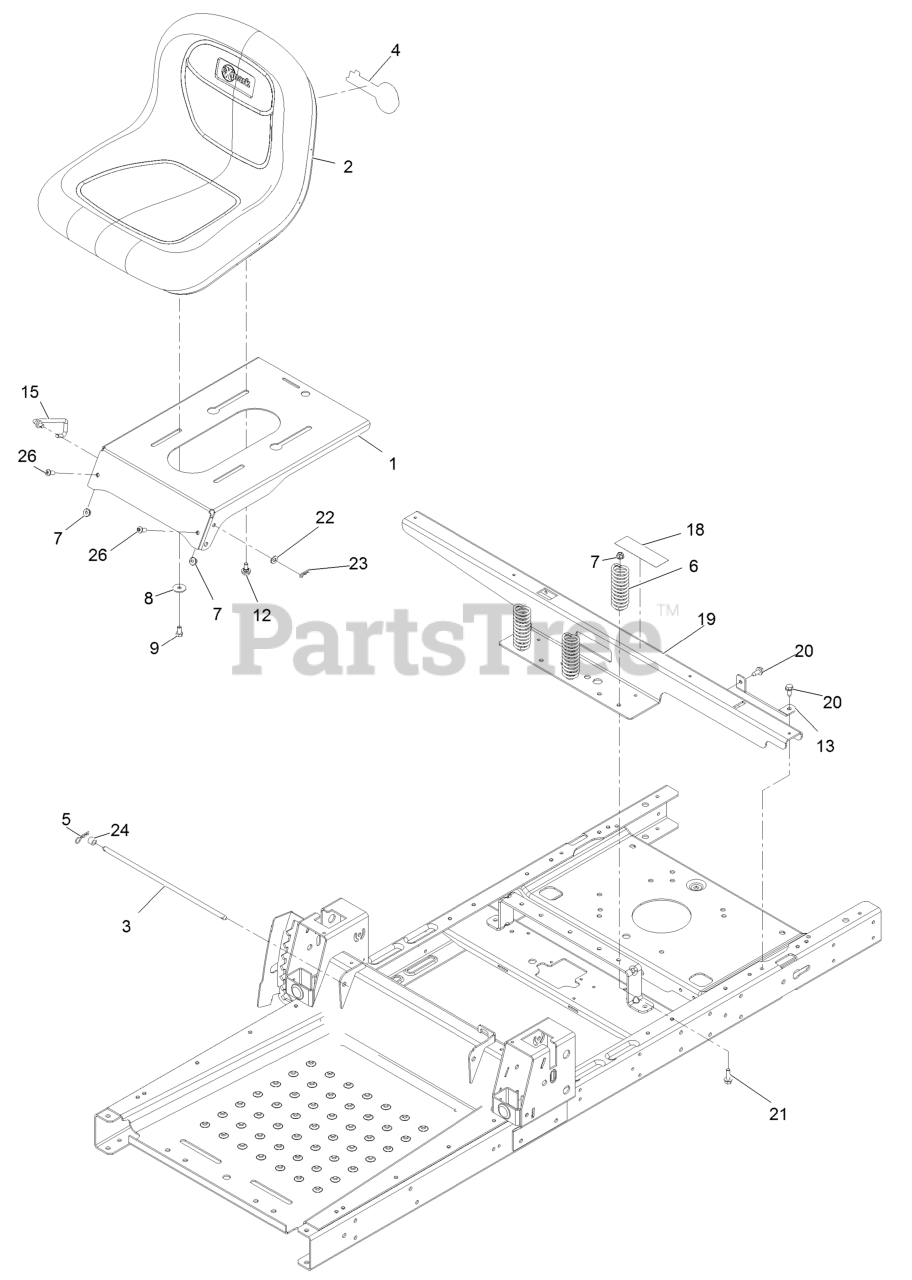

Seat Assembly Parts Diagram

  • Title

1

Exmark 131-4037-03

PAN-SEAT

$74.99

$

Usually ships in 3-6 days

0

2

Exmark 132-9365

SEAT-15 IN

$

$

Not available

3

Exmark 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

4

Exmark 126-6971

DECAL-EXMARK LOGO

$7.49

$

Usually ships in 3-6 days

0

5

Exmark 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 92-7054

SPRING-COMPRESSION

$20.99

$

In Stock, Qty 10

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

9

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

12

Exmark 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, only 3 left!

0

13

Exmark 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

15

Exmark 119-8972

STOP-SEAT

$7.99

$

Usually ships in 3-6 days

0

18

Exmark 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 131-1039-03

SUPPORT-POD, WIDE

$120.99

$

Usually ships in 3-6 days

0

20

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

21

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

22

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

26

Exmark 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0
