QTE708GEM50200 - Exmark 50" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 316000000 - 399999999) (2016) RH Hydro Transaxle Assembly No. 119-3351 Parts Diagram

50" Quest E-Series Zero-Turn Mower, Exmark 708

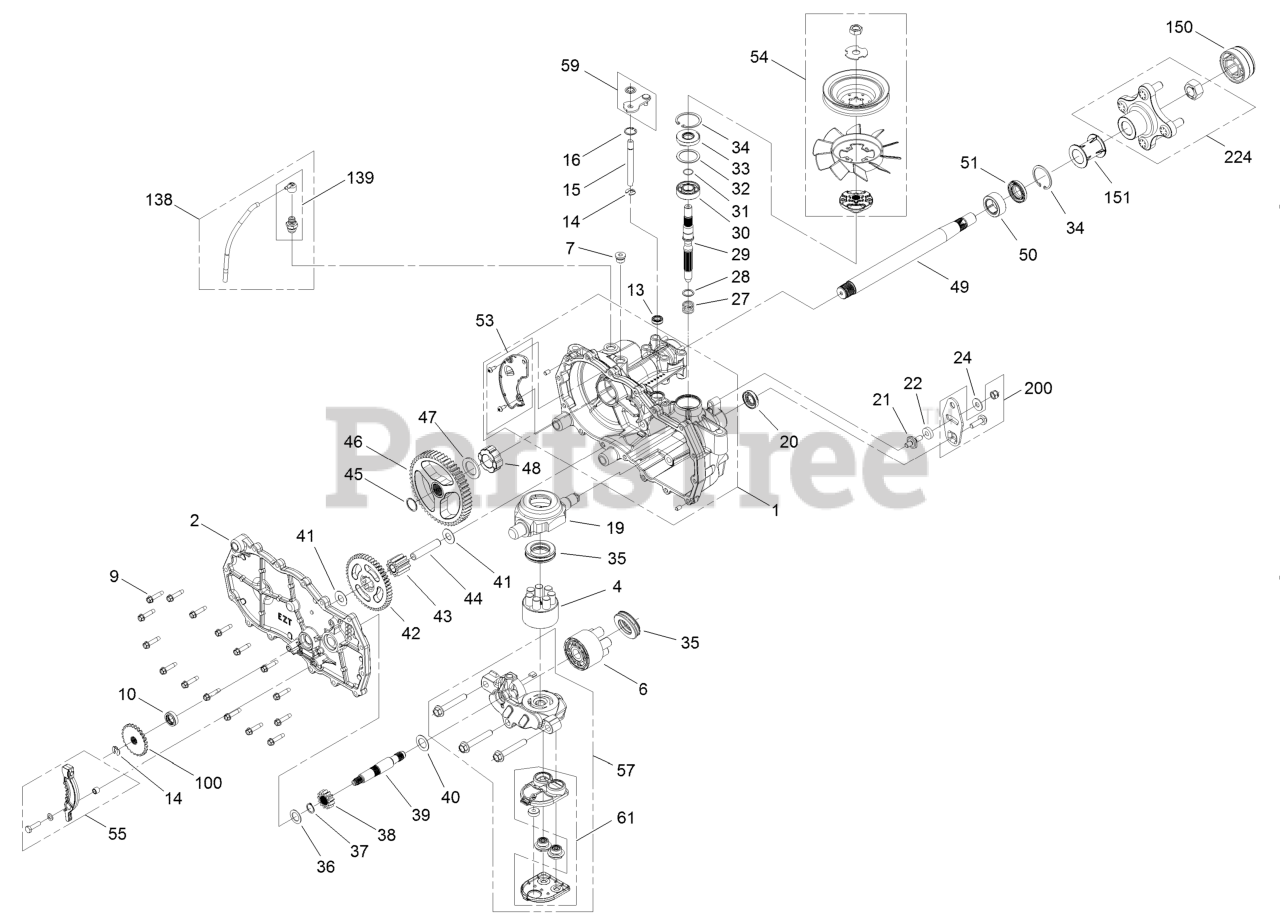

RH Hydro Transaxle Assembly No. 119-3351 Parts Diagram

  • Title

1

Exmark 106-8674

MAIN HOUSING ASM

$909.99

$

Usually ships in 3-6 days

0

2

Exmark 106-8675

SIDE ASM

$719.99

$

Usually ships in 3-6 days

0

4

Exmark 110-8561

PUMP BLOCK ASM

$383.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

7

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$27.99

$

In Stock, only 1 left!

0

9

Exmark 104-5305

SCREW-HHF
(Superseded to 117-5359)

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 104-5347

SEAL-OIL

$22.99

$

Usually ships in 3-6 days

0

13

Exmark 106-8676

SEAL-LIP
(Superseded to 139-7497)

$7.49

$

Usually ships in 3-6 days

0

14

Exmark 106-8677

RING-RETAINING, EXTERNAL

$9.49

$

In Stock, only 2 left!

0

15

Exmark 106-8678

ROD-BYPASS

$59.99

$

Usually ships in 3-6 days

0

16

Exmark 106-8679

RING-RETAINING, INTERNAL

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 104-5304

SWASHPLATE-TRUNNION

$206.99

$

Usually ships in 3-6 days

0

20

Exmark 104-5313

SEAL-LIP

$26.99

$

In Stock, Qty 7

0

21

Exmark 104-2116

STUD

$41.99

$

Usually ships in 3-6 days

0

22

Exmark 112-9853

PUCK-FRICTION

$8.49

$

In Stock, only 2 left!

0

24

Exmark 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

27

Exmark 120-5537

94-1936
(Superseded to 94-1936)

$8.99

$

Usually ships in 3-6 days

0

28

Exmark 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 104-5306

SHAFT-INPUT

$392.99

$

Usually ships in 3-6 days

0

30

Exmark 104-5311

BEARING-BALL

$46.99

$

In Stock, Qty 5

0

31

Exmark 104-5307

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

32

Exmark 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

33

Exmark 104-5310

SEAL-LIP

$38.99

$

In Stock, only 2 left!

0

34

Exmark 104-5309

RING-RETAINING

$13.99

$

In Stock, only 2 left!

0

35

Exmark 94-6922

BEARING-THRUST

$66.99

$

In Stock, only 2 left!

0

36

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

37

Exmark 104-5340

RING-RETAINING

$8.49

$

Usually ships in 3-6 days

0

38

Exmark 104-5316

GEAR-PINNION, 13T

$35.99

$

Usually ships in 3-6 days

0

39

Exmark 106-8683

SHAFT-MOTOR

$303.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5360

WASHER

$8.49

$

Usually ships in 3-6 days

0

41

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

42

Exmark 104-5317

GEAR-10T/48T

$204.99

$

Usually ships in 3-6 days

0

43

Exmark 104-5318

GEAR-JACKSHAFT, 10T

$93.99

$

Usually ships in 3-6 days

0

44

Exmark 104-5329

PIN-JACKSHAFT

$119.99

$

Usually ships in 3-6 days

0

45

Exmark 112-9854

RING-SPIRAL, RETAINING

$5.49

$

Usually ships in 3-6 days

0

46

Exmark 112-9855

GEAR-52T, BULL

$168.99

$

Usually ships in 3-6 days

0

47

Exmark 112-9856

WASHER

$8.99

$

Usually ships in 3-6 days

0

48

Exmark 112-9857

BEARING-SLEEVE

$20.99

$

In Stock, only 1 left!

0

49

Exmark 120-7104

SHAFT-AXLE

$194.99

$

Usually ships in 3-6 days

0

50

Exmark 112-9859

BUSHING-AXLE

$15.99

$

Usually ships in 3-6 days

0

51

Exmark 112-9860

SEAL-LIP

$22.99

$

Usually ships in 3-6 days

0

52

Exmark 106-8686

SEAL KIT

Note: Not illustrated

$199.99

$

Usually ships in 3-6 days

0

53

Exmark 106-8687

EXPANSION PLATE KIT

$76.99

$

Usually ships in 3-6 days

0

54

Exmark 120-7105

Fan Pulley Kit

$

$

Not available

55

Exmark 106-8688

BRAKE ARM KIT

$41.99

$

In Stock, Qty 20+

0

57

Exmark 112-9862

CENTER SECTION FILTER KIT

$581.99

$

Usually ships in 3-6 days

0

58

Exmark 104-2147

SEALANT

Note: Not illustrated

$115.99

$

Usually ships in 3-6 days

0

59

Exmark 107-2489

BYPASS ARM KIT

$87.99

$

Usually ships in 3-6 days

0

61

Exmark 114-1634

FILTER KIT

$46.99

$

In Stock, only 3 left!

0

100

Exmark 106-8694

DISC-BRAKE, COG

$63.99

$

In Stock, Qty 14

0

138

Exmark 112-9866

BREATHER KIT

$52.99

$

In Stock, only 2 left!

0

139

Exmark 114-1635

BREATHER ASM

$46.99

$

In Stock, only 1 left!

0

150

Exmark 115-5057

COVER-NUT, AXLE

$19.99

$

Usually ships in 3-6 days

0

151

Exmark 120-7109

TUBE-AXLE

$14.99

$

Usually ships in 3-6 days

0

200

Exmark 117-5362

CONTROL ARM KIT

$31.99

$

Usually ships in 3-6 days

0

224

Exmark 120-7110

109-5939
(Superseded to 109-5939)

$109.99

$

In Stock, Qty 5

0
