QTE708GEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Blower Housing Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

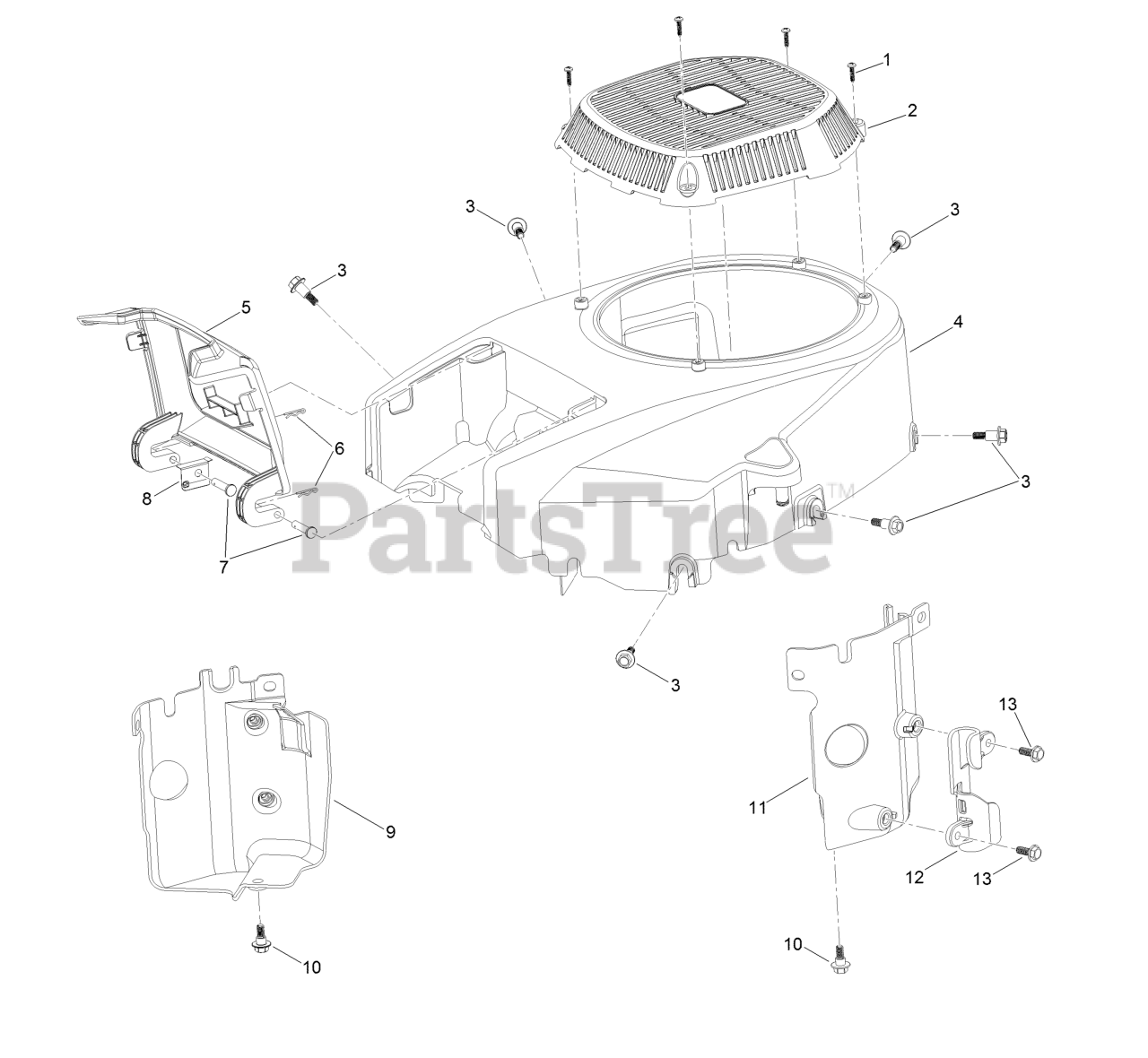

Blower Housing Assembly Parts Diagram

  • Title

1

Exmark 133-1571

SCREW-PPH, PLASTIC

$1.49

$

In Stock, only 2 left!

0

2

Exmark 127-9045

COVER-FAN

$23.99

$

In Stock, only 1 left!

0

3

Exmark 127-9196

SCREW-SHOULDER, HWH

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 133-1572

SHROUD-ENGINE

$

$

Not available

5

Exmark 127-9046

DOOR-FILTER, AIR

$15.99

$

In Stock, only 1 left!

0

6

Exmark 127-9280

PIN-HAIR

$1.49

$

In Stock, Qty 5

0

7

Exmark 127-9282

PIN

$2.99

$

In Stock, only 2 left!

0

8

Exmark 127-9281

PLATE-SPRING

$8.99

$

Usually ships in 3-6 days

0

9

Exmark 127-9049

BAFFLE-AIR, LEFT

$20.99

$

Usually ships in 3-6 days

0

10

Exmark 120-4210

SCREW-SHOULDER, HHF

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 127-9048

BAFFLE-AIR, RIGHT

$20.99

$

Usually ships in 3-6 days

0

12

Exmark 127-9287

CLEAT-HOSE

$7.99

$

Usually ships in 3-6 days

0

13

Exmark 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0
