QTE708GEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 708 (SN: 315000000 - 315999999) (2015) Piston and Cylinder Head Assembly Engine Assembly No. 127-9041 Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 708

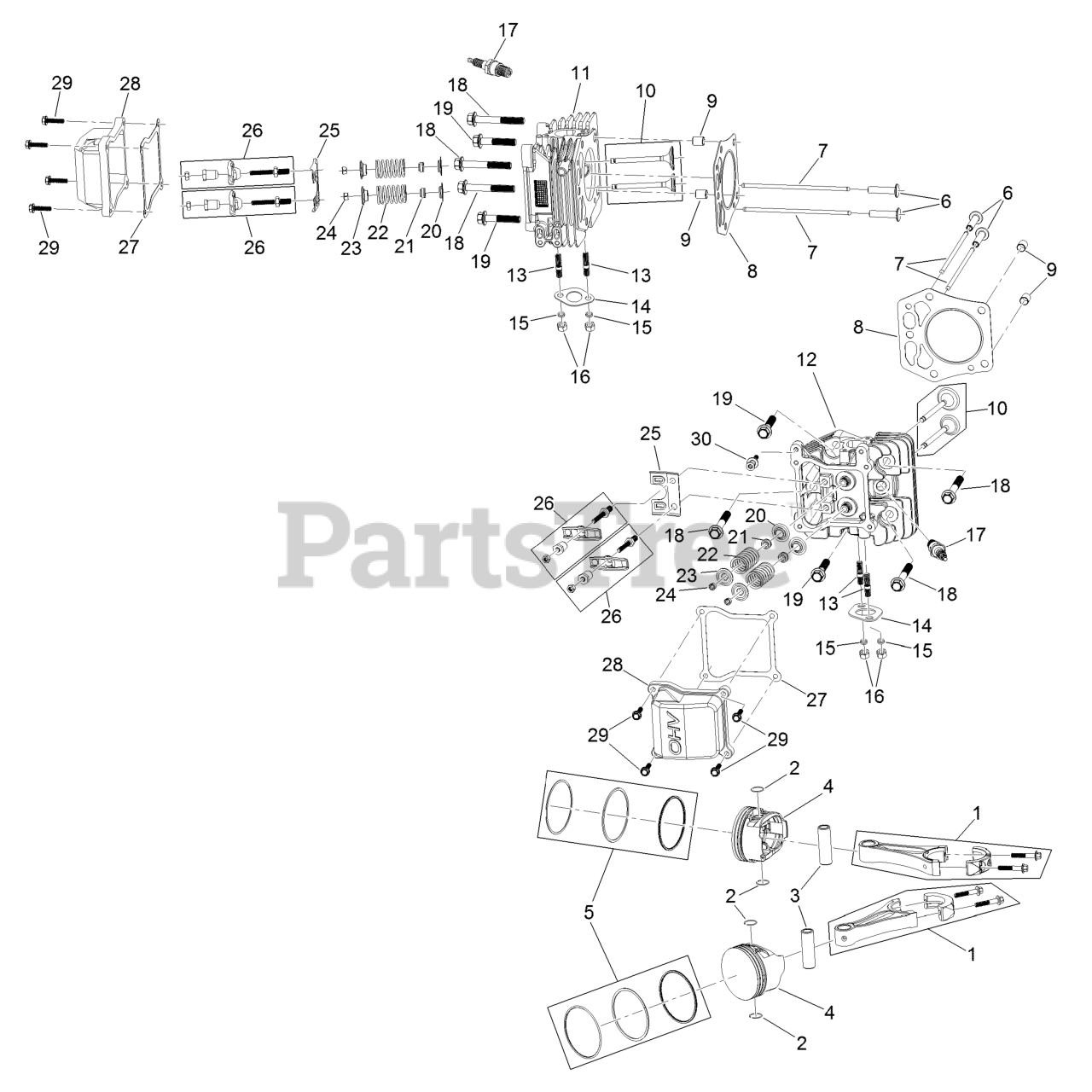

Piston and Cylinder Head Assembly Engine Assembly No. 127-9041 Parts Diagram

  • Title
1

Exmark 127-9256

CONNECTING ROD ASM

$46.99

$

In Stock, Qty 5

0

2

Exmark 127-9258

CLIP-PIN, PISTON

$1.49

$

In Stock, Qty 20+

0

3

Exmark 127-9257

PIN-PISTON

$9.99

$

In Stock, only 2 left!

0

4

$39.99

$

In Stock, Qty 5

0

5

Exmark 127-9260

PISTON RING SET

$20.99

$

In Stock, Qty 16

0

6

Exmark 127-9224

LIFTER-VALVE

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 127-9225

ROD-PUSH

$7.99

$

In Stock, Qty 20+

0

8

Exmark 127-9226

GASKET-HEAD, CYLINDER

$12.99

$

In Stock, Qty 20+

0

9

Exmark 127-9227

PIN-DOWEL

$1.49

$

In Stock, Qty 8

0

10

Exmark 127-9228

VALVE SET

$35.99

$

In Stock, only 3 left!

0

11

Exmark 127-9229

HEAD-CYLINDER
(Superseded to 133-9802)

$156.99

$

Usually ships in 3-6 days

0

12

Exmark 127-9254

HEAD-CYLINDER
(Superseded to 133-9804)

$156.99

$

Usually ships in 3-6 days

0

13

$1.99

$

Usually ships in 3-6 days

0

14

Exmark 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 20+

0

15

Exmark 127-9279

WASHER-LOCK, SPLIT

$2.99

$

Usually ships in 3-6 days

0

16

$1.49

$

Usually ships in 3-6 days

0

17

Exmark 81-3250

SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

18

Exmark 127-9231

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 127-9232

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

20

Exmark 120-4303

SEAT-SPRING, VALVE

$7.99

$

In Stock, Qty 8

0

21

Exmark 120-4304

SEAL-STEM, VALVE

$18.99

$

In Stock, Qty 12

0

22

Exmark 120-4305

SPRING-VALVE

$6.49

$

In Stock, only 2 left!

0

23

Exmark 120-4306

RETAINER-SPRING, VALVE

$11.99

$

In Stock, only 1 left!

0

24

Exmark 120-4307

KEEPER-VALVE

$8.49

$

In Stock, only 2 left!

0

25

Exmark 127-9233

PLATE-GUIDE, PUSH ROD

$6.49

$

In Stock, Qty 12

0

26

Exmark 127-9294

136-7881
(Superseded to 136-7881)

$12.99

$

In Stock, Qty 20+

0

27

Exmark 127-9295

GASKET-VALVE COVER

$9.49

$

In Stock, Qty 20+

0

28

Exmark 127-9050

COVER-VALVE

$39.99

$

In Stock, only 1 left!

0

29

Exmark 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

30

Exmark 120-4214

SCREW-SHOULDER, HH

$2.99

$

Usually ships in 3-6 days

0
