QTE651KA421 - Exmark 42" Quest E-Series Zero-Turn Mower, Kawasaki FR651V (SN: 314000000 - 314999999) (2014) Hydro Transaxle Drive And Rear Wheel Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Kawasaki FR651V

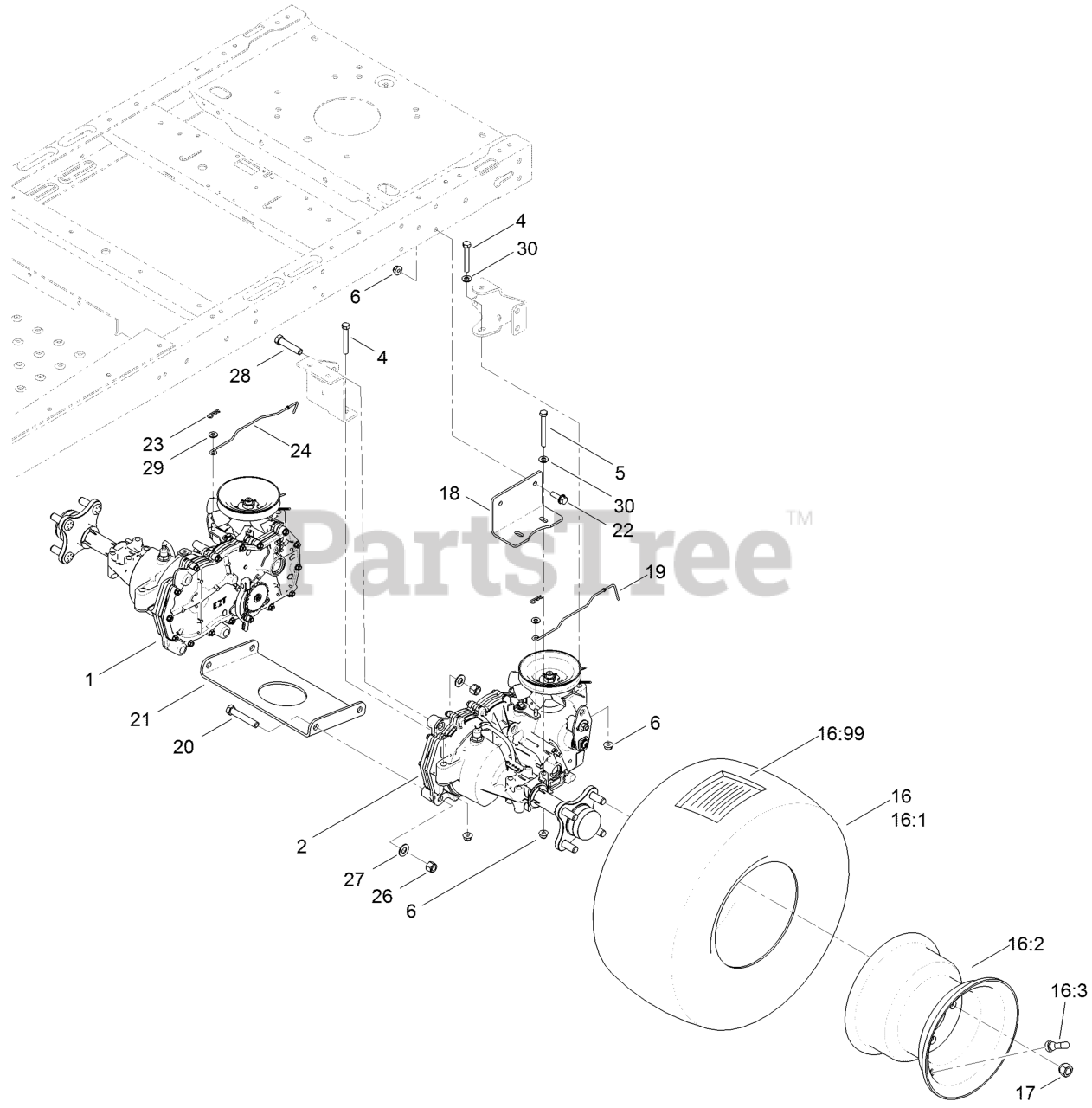

Hydro Transaxle Drive And Rear Wheel Assembly Parts Diagram

  • Title

1

Exmark 119-3331

RH HYDRO TRANSAXLE ASM

$1472.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3330

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

4

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 120-5523

4 PLY WHEEL AND TIRE ASM

$244.99

$

In Stock, only 1 left!

0

16:1

Exmark 119-8907

TIRE-4 PLY

$176.99

$

Usually ships in 3-6 days

0

16:2

Exmark 107-2475

WHEEL

$77.99

$

In Stock, only 2 left!

0

16:3

Exmark 232-27

Stem-Valve

$

$

Not available

16:99

Exmark 107-2491

TUBE-TIRE

$83.99

$

In Stock, only 2 left!

0

17

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

18

Exmark 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

19

Exmark 121-2971

ROD-BYPASS, LH

$9.49

$

Usually ships in 3-6 days

0

20

Exmark 324-10

SCREW-HH

$2.49

$

In Stock, Qty 15

0

21

Exmark 119-3339-03

PLATE-CROSS, HYDRO

$25.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 121-0752

ROD-BYPASS, RH

$41.99

$

Usually ships in 3-6 days

0

26

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

29

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
