QTE651KA421 - Exmark 42" Quest E-Series Zero-Turn Mower, Kawasaki FR651V (SN: 314000000 - 314999999) (2014) Engine And Muffler Assembly Parts Diagram
42" Quest E-Series Zero-Turn Mower, Kawasaki FR651V

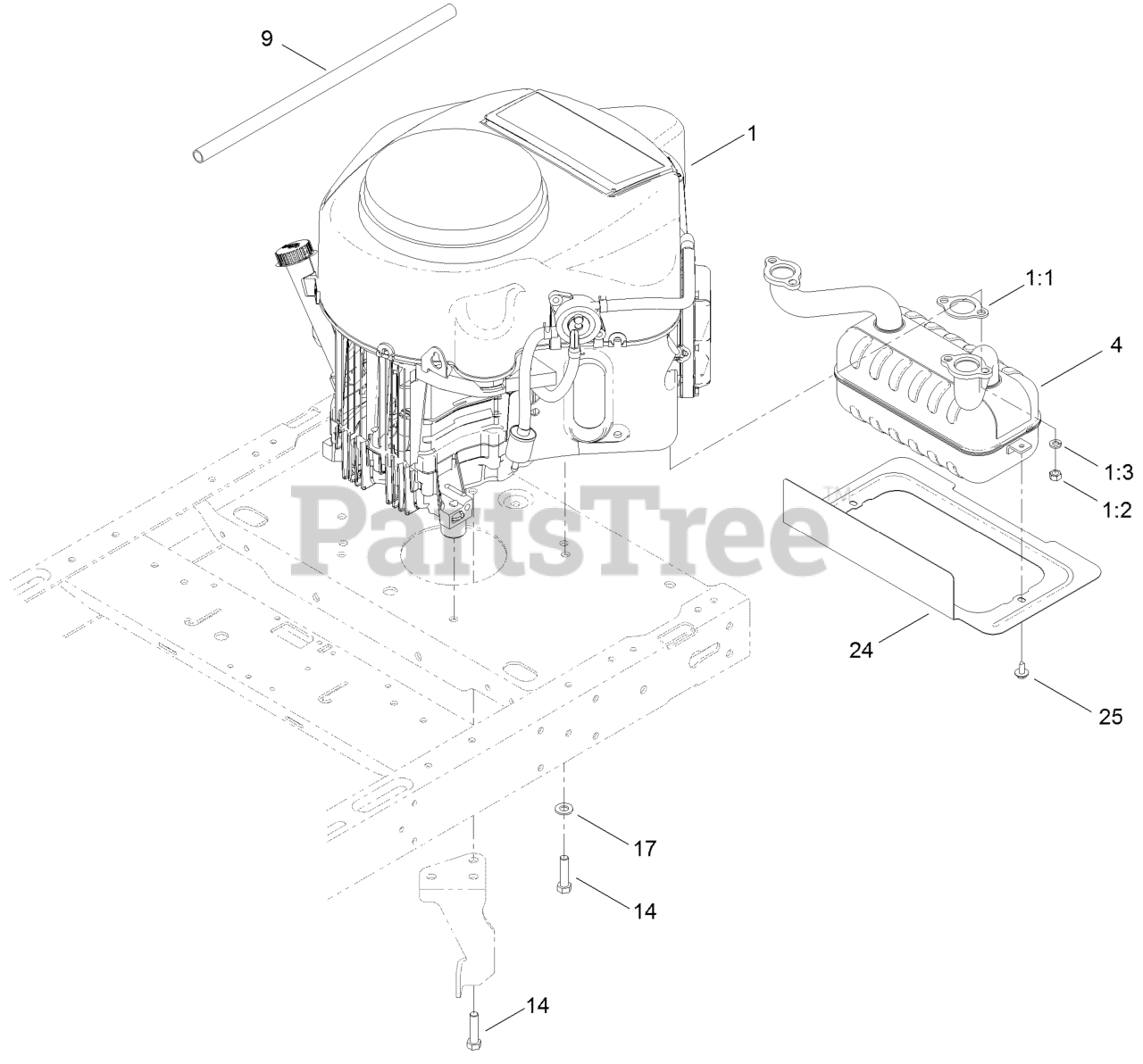

Engine And Muffler Assembly Parts Diagram
1
Engine-Kawasaki, Fr651v-_s06-R
Note: Not serviced separately, Obtain parts from www.kawpowerepc.com
$
$
Not available
Exmark 1-653313
GASKET-EXHAUST
$4.99
$
Usually ships in 3-6 days
Exmark 114-3549
NUT
$1.99
$
In Stock, Qty 20+
Exmark 114-3550
WASHER-LOCK
$1.49
$
In Stock, Qty 6
Exmark 117-7256
MUFFLER-KAWASAKI
$224.99
$
In Stock, only 1 left!
Exmark 106-7022
TUBE-DRAIN, OIL
$9.49
$
In Stock, only 1 left!
Exmark 323-50
BOLT-HH
$1.49
$
In Stock, Qty 17
Exmark 3256-24
WASHER-FLAT
$0.99
$
In Stock, Qty 16
Exmark 121-2973-03
SHIELD-HEAT
$34.99
$
Usually ships in 3-6 days
Exmark 46-8560
SCREW-HHFTF
$1.99
$
In Stock, only 4 left!
