QTE452CEM42200 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Main Frame Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

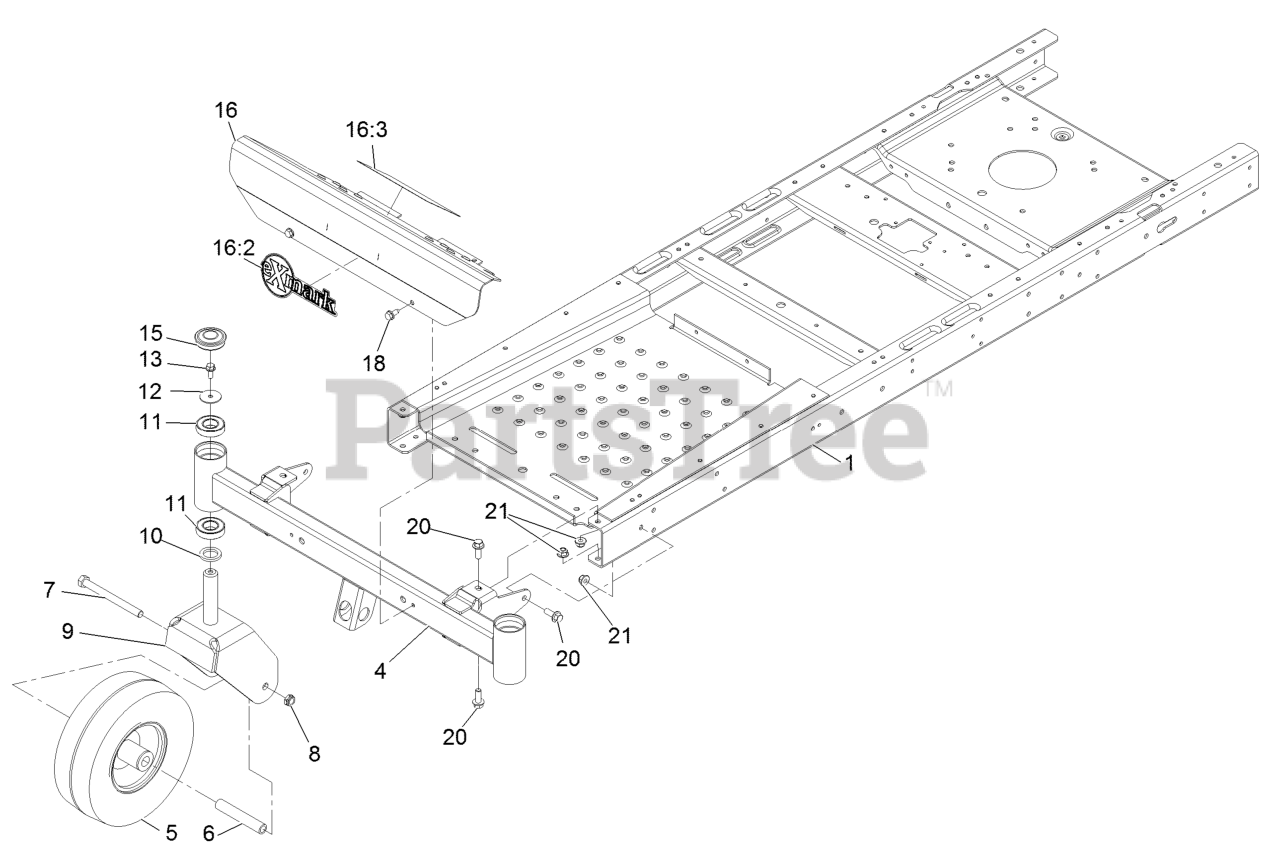

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 127-3444-01

FRAME ASM

$468.99

$

Usually ships in 3-6 days

0

4

Exmark 125-1742-01

AXLE-FRONT, NARROW

$319.99

$

Usually ships in 3-6 days

0

5

Exmark 130-0736

CASTER WHEEL ASM

$87.99

$

In Stock, only 2 left!

0

6

Exmark 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

7

Exmark 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

8

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

9

Exmark 120-2266-01

FORK-CASTER

$181.99

$

In Stock, only 1 left!

0

10

Exmark 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

11

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

13

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

15

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 15

0

16

Exmark 133-1158

FOOTREST ASM

$172.99

$

Usually ships in 3-6 days

0

16:2

Exmark 126-6969

DECAL-EXMARK LOGO

$7.99

$

In Stock, Qty 17

0

16:3

Exmark 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

20

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

21

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
