QTE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 400000000 - 402082299) (2017) Electrical Assembly Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

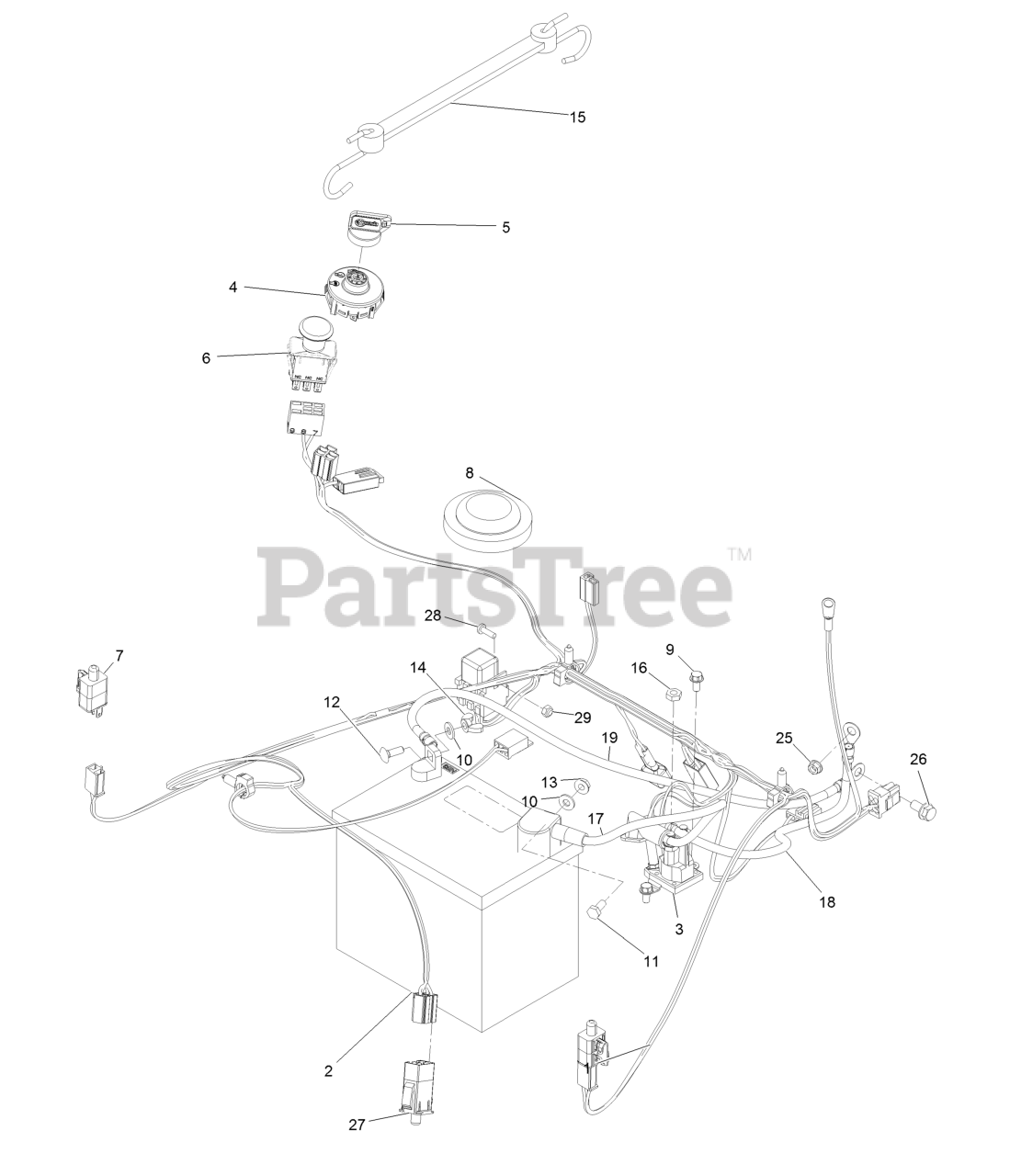

Electrical Assembly Parts Diagram

  • Title

1

Exmark 135-0482

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$230.99

$

Usually ships in 3-6 days

0

2

Exmark 105-1692

BATTERY

$

$

Not available

3

Exmark 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

4

Exmark 117-2221

137-4100
(Superseded to 137-4100)

$35.99

$

In Stock, Qty 20+

0

5

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

6

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

7

Exmark 110-6765

SWITCH

$13.99

$

In Stock, only 3 left!

0

8

Exmark 100-3524

SWITCH-SEAT

$62.99

$

In Stock, only 4 left!

0

9

Exmark 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

14

Exmark 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

15

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

16

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

17

Exmark 119-8897

CABLE-BATTERY, RED

$22.99

$

In Stock, only 1 left!

0

18

Exmark 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

In Stock, only 4 left!

0

19

Exmark 119-8899

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0

25

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

26

Exmark 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

27

Exmark 104-3338

SWITCH-DELTA

$54.99

$

Usually ships in 3-6 days

0

28

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
