QTE452CEM42100 - Exmark 42" Quest E-Series Zero-Turn Mower, Exmark 452 (SN: 316000000 - 399999999) (2016) Left Hand Hydro Transaxle Assembly No. 119-3330 Parts Diagram

42" Quest E-Series Zero-Turn Mower, Exmark 452

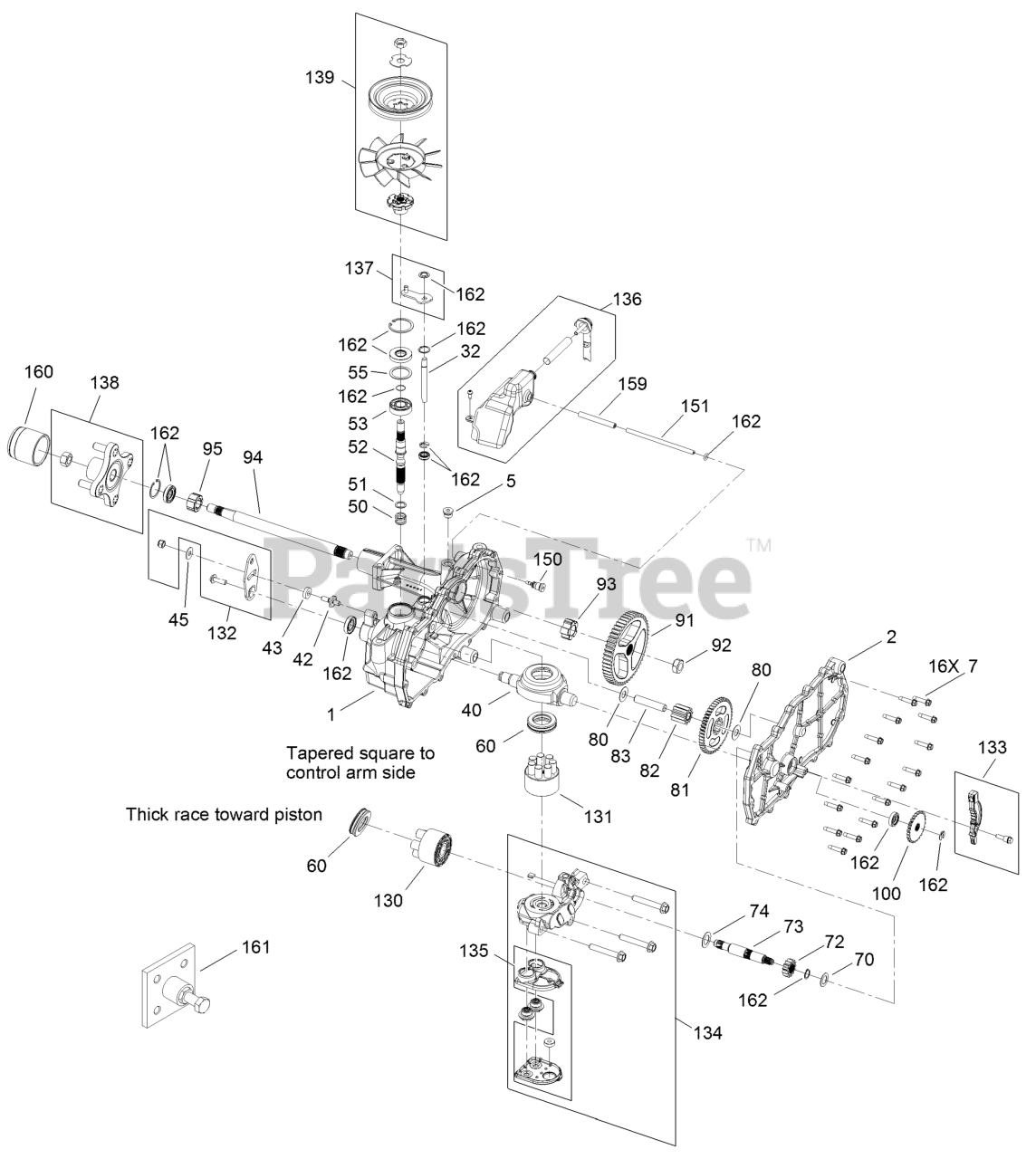

Left Hand Hydro Transaxle Assembly No. 119-3330 Parts Diagram

  • Title

1

Exmark 120-5532

MAIN HOUSING ASM

$962.99

$

Usually ships in 3-6 days

0

2

Exmark 120-5534

HOUSING SIDE KIT

$282.99

$

Usually ships in 3-6 days

0

5

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

7

Exmark 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

13

Exmark 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

32

Exmark 106-8678

ROD-BYPASS

$55.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

42

Exmark 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

43

Exmark 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

45

Exmark 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

50

Exmark 120-5537

94-1936
(Superseded to 94-1936)

$8.49

$

Usually ships in 3-6 days

0

51

Exmark 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

52

Exmark 104-5306

SHAFT-INPUT

$370.99

$

Usually ships in 3-6 days

0

53

Exmark 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

55

Exmark 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

60

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

70

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

72

Exmark 104-5316

GEAR-PINNION, 13T

$33.99

$

Usually ships in 3-6 days

0

73

Exmark 106-8683

SHAFT-MOTOR

$286.99

$

Usually ships in 3-6 days

0

74

Exmark 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

81

Exmark 104-5317

GEAR-10T/48T

$192.99

$

Usually ships in 3-6 days

0

82

Exmark 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

83

Exmark 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

91

Exmark 120-5539

GEAR-BULL

$99.99

$

Usually ships in 3-6 days

0

92

Exmark 104-2142

NUT-HJ

$12.99

$

Usually ships in 3-6 days

0

93

Exmark 115-8314

BUSHING-INBOARD

$9.49

$

Usually ships in 3-6 days

0

94

Exmark 120-5540

SHAFT-AXLE

$134.99

$

Usually ships in 3-6 days

0

95

Exmark 120-5541

BEARING-SLEEVE

$12.99

$

Usually ships in 3-6 days

0

100

Exmark 106-8694

DISC-BRAKE, COG

$60.99

$

In Stock, Qty 5

0

130

Exmark 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

131

Exmark 110-8561

PUMP BLOCK ASM

$383.99

$

Usually ships in 3-6 days

0

132

Exmark 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

133

Exmark 106-8688

BRAKE ARM KIT

$41.99

$

In Stock, Qty 20+

0

134

Exmark 112-9861

CENTER SECTION FILTER KIT

$581.99

$

Usually ships in 3-6 days

0

135

Exmark 114-1634

FILTER KIT

$46.99

$

Usually ships in 3-6 days

0

136

Exmark 121-5730

RH EXPANSION TANK KIT

$101.99

$

Usually ships in 3-6 days

0

137

Exmark 120-5549

BYPASS KIT

$44.99

$

Usually ships in 3-6 days

0

138

Exmark 121-5731

HUB KIT

$197.99

$

Usually ships in 3-6 days

0

139

Exmark 121-5729

FAN PULLEY KIT

$116.99

$

In Stock, only 1 left!

0

150

Exmark 104-5349

FITTING-SAE

$69.99

$

Usually ships in 3-6 days

0

151

Exmark 115-8302

HOSE

$6.99

$

Usually ships in 3-6 days

0

159

Exmark 121-5728

CASE-TUBE

$6.99

$

Usually ships in 3-6 days

0

160

Exmark 125-0041

CAP-AXLE

$33.99

$

Usually ships in 3-6 days

0

161

Exmark 114-8467

DISCONTINUED
(Superseded to 130-8482)

$422.99

$

Usually ships in 3-6 days

0

162

Exmark 120-7103

SEAL AND RING KIT

$30.99

$

In Stock, only 2 left!

0
