QT24KA501 - Exmark 50" Quest Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Hydro Transaxle Drive and Rear Wheel Assembly Parts Diagram

50" Quest Zero-Turn Mower, 24hp Kawasaki

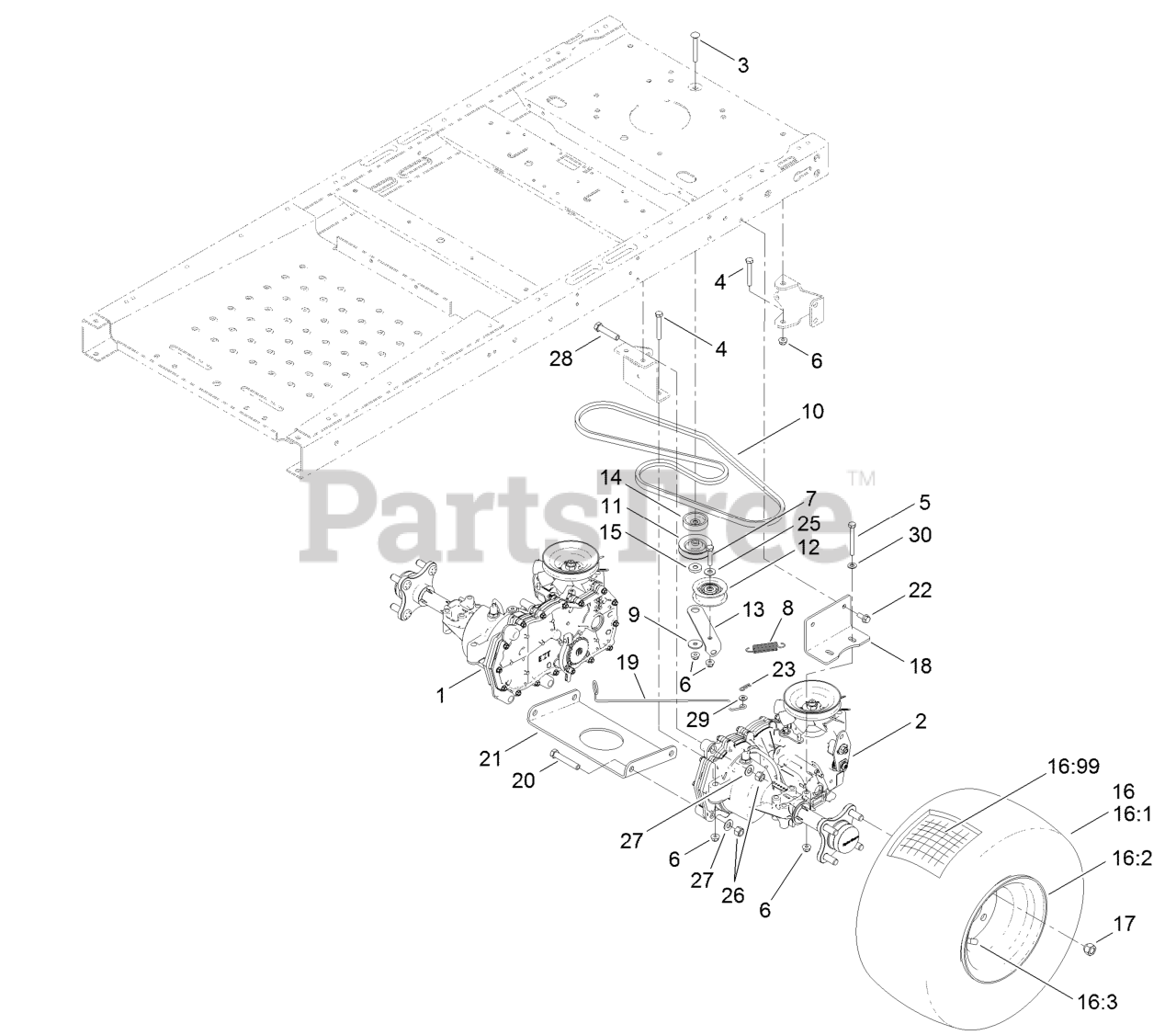

Hydro Transaxle Drive and Rear Wheel Assembly Parts Diagram

  • Title

1

Exmark 119-3351

RH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3350

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

3

Exmark 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 20+

0

4

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 20+

0

9

Exmark 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

10

Exmark 119-3321

V-BELT
(Superseded to 119-3321-SL)

$35.99

$

Usually ships in 3-6 days

0

11

Exmark 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 20+

0

12

Exmark 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 20+

0

13

Exmark 119-3326

ARM-IDLER
(Superseded to 138-7276)

$6.49

$

In Stock, Qty 20+

0

14

Exmark 119-3353

SPACER

$11.99

$

In Stock, Qty 20+

0

15

Exmark 119-3327

SPACER-ARM, IDLER

$3.99

$

In Stock, Qty 20+

0

16

Exmark 119-8908

4 PLY WHEEL AND TIRE ASM

$272.99

$

Usually ships in 3-6 days

0

16:1

Exmark 119-8909

TIRE-4 PLY

$212.99

$

Usually ships in 3-6 days

0

16:2

Exmark 217-60

RIM

$124.99

$

Usually ships in 3-6 days

0

16:3

Exmark 232-27

Stem-Valve

$

$

Not available

16:99

Exmark 232-37

TUBE

$33.99

$

In Stock, only 1 left!

0

17

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

18

Exmark 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

19

Exmark 119-3464

ROD-BYPASS

$9.99

$

Usually ships in 3-6 days

0

20

Exmark 324-10

SCREW-HH

$2.49

$

In Stock, Qty 15

0

21

Exmark 119-3342-03

PLATE-CROSS, HYDRO

$28.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

27

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Exmark 324-8

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
