QT24KA501 - Exmark 50" Quest Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) Engine, Muffler and Clutch Assembly Parts Diagram

50" Quest Zero-Turn Mower, 24hp Kawasaki

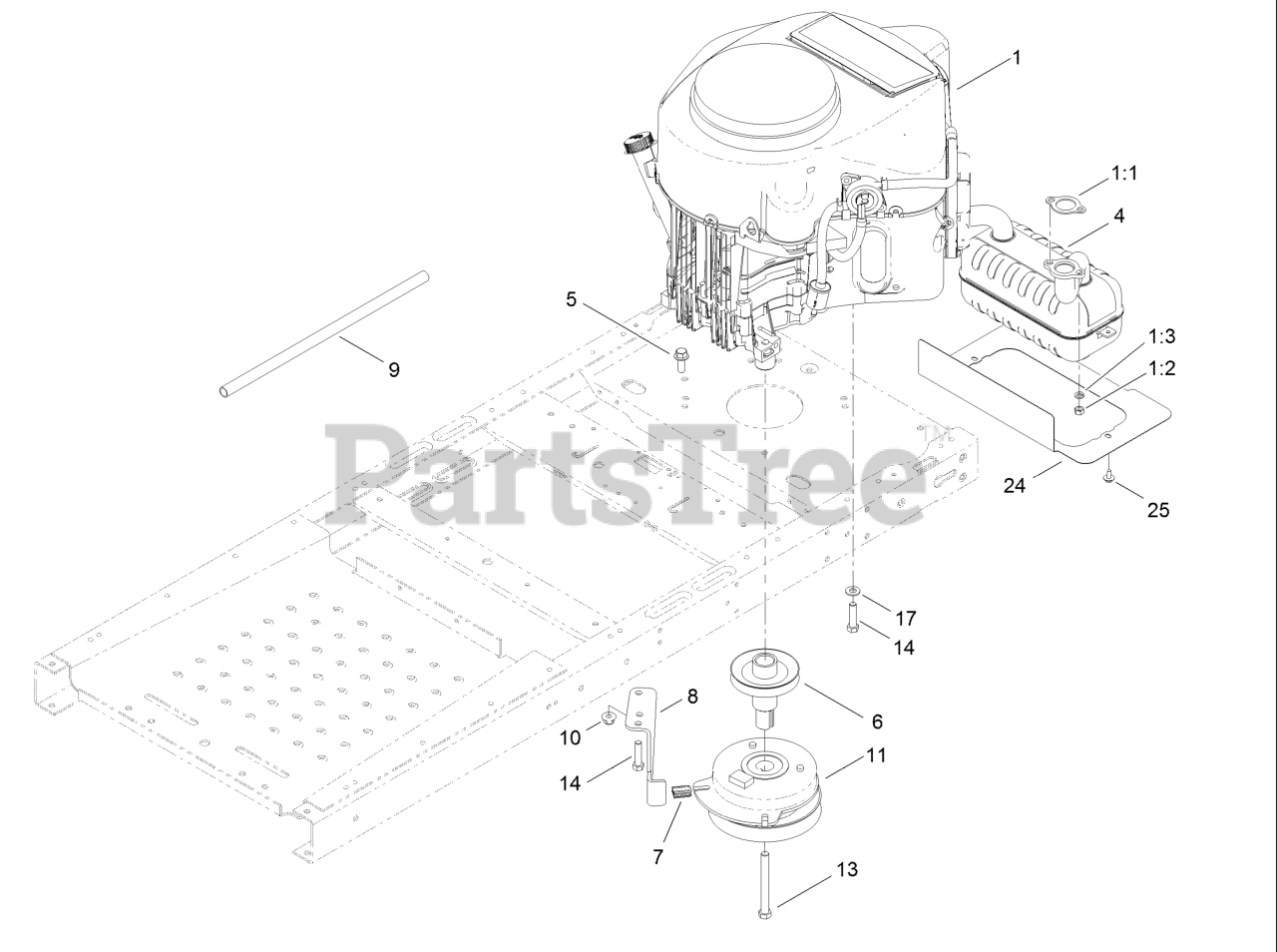

Engine, Muffler and Clutch Assembly Parts Diagram

  • Title

1

Engine-Kawasaki, Fr691v-As07-R

Note: Not serviced separately\nObtain parts from www.kawpowerepc.com

$

$

Not available

1:1

Exmark 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

Exmark 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Exmark 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

4

Exmark 117-7256

MUFFLER-KAWASAKI

$224.99

$

In Stock, only 1 left!

0

5

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

6

Exmark 119-3318

PULLEY-ENGINE

$172.99

$

In Stock, only 1 left!

0

7

Exmark 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 8

0

8

Exmark 119-8885

STOP-CLUTCH
(Superseded to 137-7000)

$12.99

$

In Stock, only 1 left!

0

9

Exmark 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 110-6766

CLUTCH-ELECTRIC, PTO

$573.99

$

Usually ships in 3-6 days

0

13

Exmark 3212-17

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

14

Exmark 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

17

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

24

Exmark 119-8976-03

121-2973-03
(Superseded to 121-2973-03)

$34.99

$

Usually ships in 3-6 days

0

25

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!
