QT24KA501 - Exmark 50" Quest Zero-Turn Mower, 24hp Kawasaki (SN: 920000 - 999999) (2011) 50 Inch Deck Assembly Parts Diagram

50" Quest Zero-Turn Mower, 24hp Kawasaki

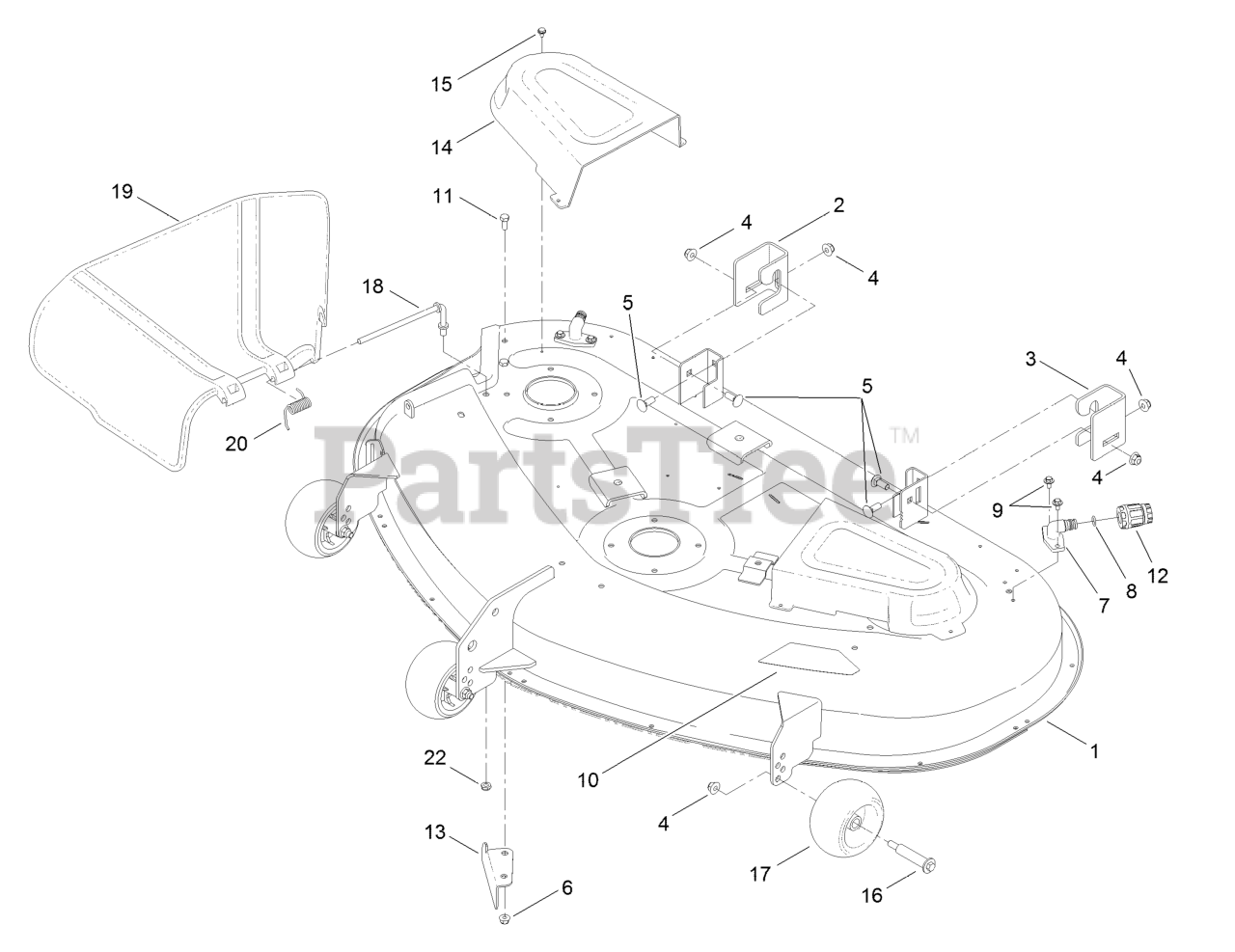

50 Inch Deck Assembly Parts Diagram

  • Title

1

Exmark 119-8841

50 INCH DECK AND DECAL AS

$1198.99

$

Usually ships in 3-6 days

0

2

Exmark 119-3494

131-4138
(Superseded to 131-4138)

$13.99

$

In Stock, only 2 left!

0

3

Exmark 119-3496

BRACKET-HANGER, LH

$12.99

$

In Stock, Qty 10

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 95-2747

133-9289
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

8

Exmark 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Exmark 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

10

Exmark 117-1223

DECAL

$12.99

$

In Stock, only 4 left!

0

11

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

12

Exmark 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

13

Exmark 112-3983-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

14

Exmark 108-7890

COVER-BELT

$21.99

$

In Stock, only 2 left!

0

15

Exmark 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Exmark 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

17

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

18

Exmark 112-3950

ROD-PIVOT

$19.99

$

In Stock, only 1 left!

0

19

Exmark 108-7895

DEFLECTOR

$67.99

$

In Stock, Qty 20+

0

20

Exmark 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

22

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0
