QT22KA421 - Exmark 42" Quest Zero-Turn Mower, 22hp Kawasaki (SN: 920000 - 999999) (2011) Left Hand Hydro Transaxle Assembly No. 119-3330 Parts Diagram

42" Quest Zero-Turn Mower, 22hp Kawasaki

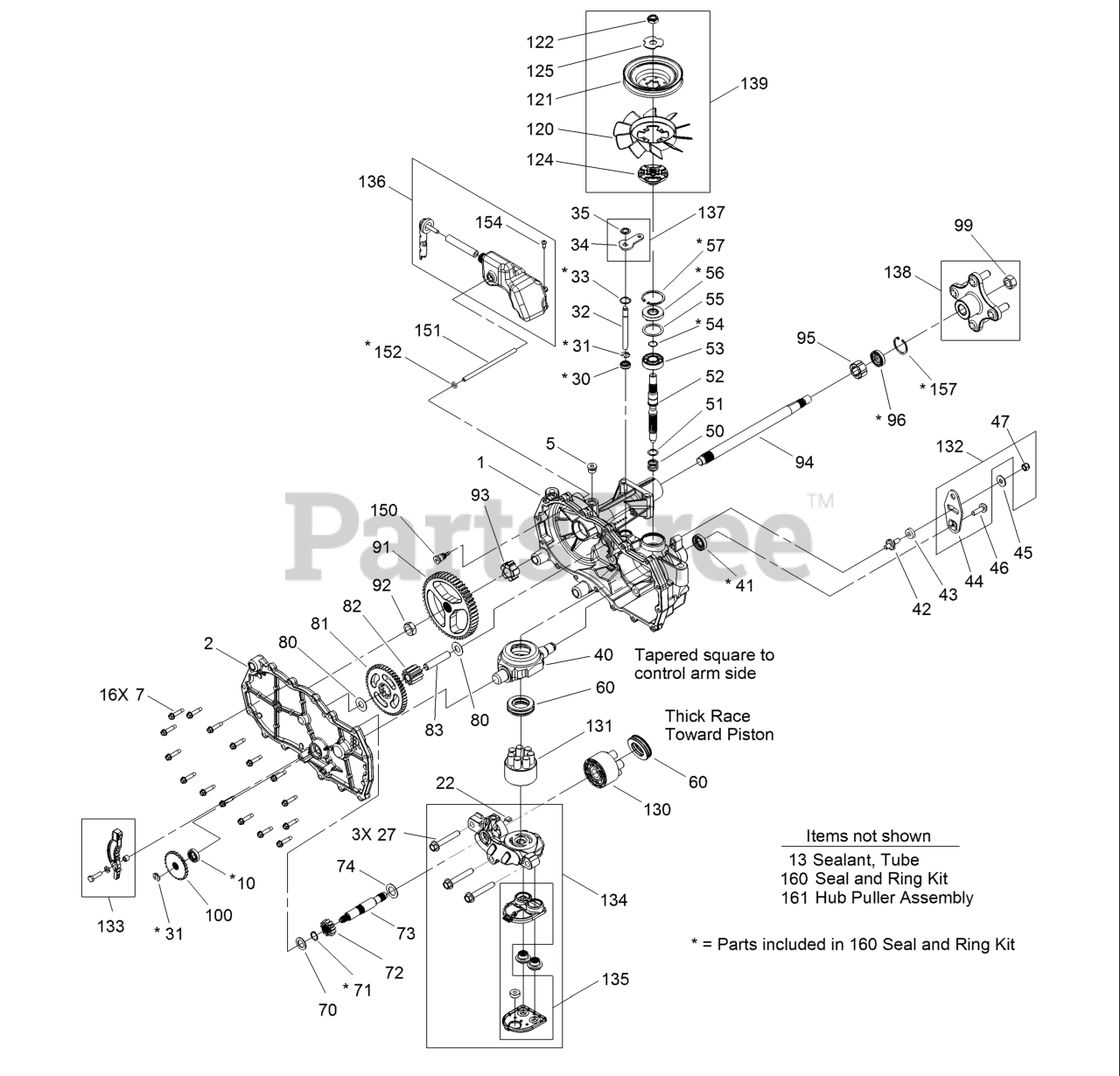

Left Hand Hydro Transaxle Assembly No. 119-3330 Parts Diagram

  • Title

1

Exmark 120-5532

MAIN HOUSING ASM

$939.99

$

Usually ships in 3-6 days

0

2

Exmark 120-5534

HOUSING SIDE KIT

$275.99

$

Usually ships in 3-6 days

0

5

Exmark 104-2189

PLUG-THREAD, STRAIGHT

$25.99

$

In Stock, only 2 left!

0

7

Exmark 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Exmark 120-5535

120-7103
(Superseded to 120-7103)

$29.99

$

Usually ships in 3-6 days

0

13

Exmark 104-2147

SEALANT

Note: Not illustrated

$110.99

$

Usually ships in 3-6 days

0

22

Exmark 114-1680

PLATE-BYPASS

$6.99

$

Usually ships in 3-6 days

0

27

Exmark 120-5536

BOLT-HEX FLANGE

$

$

Not available

30

Exmark 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

31

Exmark 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

32

Exmark 106-8678

ROD-BYPASS

$54.99

$

Usually ships in 3-6 days

0

33

Exmark 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

34

Exmark 107-2490

ARM-BYPASS

$56.99

$

Usually ships in 3-6 days

0

35

Exmark 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

40

Exmark 104-5304

SWASHPLATE-TRUNNION

$193.99

$

Usually ships in 3-6 days

0

41

Exmark 104-5313

SEAL-LIP

$23.99

$

In Stock, only 1 left!

0

42

Exmark 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

43

Exmark 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

44

Exmark 106-8747

ARM-CONTROL

$36.99

$

Usually ships in 3-6 days

0

45

Exmark 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

46

Exmark 107-2488

SCREW

$13.99

$

In Stock, only 1 left!

0

47

Exmark 105-1872

NUT
(Superseded to 105-1872)

$13.99

$

Usually ships in 3-6 days

0

50

Exmark 120-5537

94-1936
(Superseded to 94-1936)

$8.49

$

Usually ships in 3-6 days

0

51

Exmark 120-5538

WASHER

$5.49

$

Usually ships in 3-6 days

0

52

Exmark 104-5306

SHAFT-INPUT

$367.99

$

Usually ships in 3-6 days

0

53

Exmark 104-5311

BEARING-BALL

$43.99

$

In Stock, Qty 5

0

54

Exmark 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

55

Exmark 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

56

Exmark 104-5310

SEAL-LIP

$34.99

$

In Stock, only 1 left!

0

57

Exmark 104-5309

RING-RETAINING

$13.99

$

In Stock, only 1 left!

0

60

Exmark 94-6922

BEARING-THRUST

$61.99

$

In Stock, only 3 left!

0

70

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

71

Exmark 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

72

Exmark 104-5316

GEAR-PINNION, 13T

$31.99

$

Usually ships in 3-6 days

0

73

Exmark 106-8683

SHAFT-MOTOR

$283.99

$

Usually ships in 3-6 days

0

74

Exmark 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Exmark 119-5541

Washer
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

81

Exmark 104-5317

GEAR-10T/48T

$188.99

$

Usually ships in 3-6 days

0

82

Exmark 104-5318

GEAR-JACKSHAFT, 10T

$85.99

$

Usually ships in 3-6 days

0

83

Exmark 104-5329

PIN-JACKSHAFT

$111.99

$

Usually ships in 3-6 days

0

91

Exmark 120-5539

GEAR-BULL

$96.99

$

Usually ships in 3-6 days

0

92

Exmark 104-2142

NUT-HJ

$12.99

$

Usually ships in 3-6 days

0

93

Exmark 115-8314

BUSHING-INBOARD

$9.49

$

Usually ships in 3-6 days

0

94

Exmark 120-5540

SHAFT-AXLE

$133.99

$

Usually ships in 3-6 days

0

95

Exmark 120-5541

BEARING-SLEEVE

$12.99

$

Usually ships in 3-6 days

0

96

Exmark 120-5542

120-7103
(Superseded to 120-7103)

$29.99

$

Usually ships in 3-6 days

0

99

Exmark 120-5543

121-5731
(Superseded to 121-5731)

$193.99

$

Usually ships in 3-6 days

0

100

Exmark 106-8694

DISC-BRAKE, COG

$59.99

$

Usually ships in 3-6 days

0

120

Exmark 120-5544

121-5729
(Superseded to 121-5729)

$113.99

$

In Stock, only 1 left!

0

121

Exmark 120-5545

Pulley

$

$

Not available

122

Exmark 105-1875

NUT-LOCK

$7.99

$

Usually ships in 3-6 days

0

124

Exmark 120-5546

121-5729
(Superseded to 121-5729)

$113.99

$

In Stock, only 1 left!

0

125

Exmark 107-9122

WASHER-SLOTTED
(Superseded to 116-9708)

$5.49

$

In Stock, only 1 left!

0

130

Exmark 103-2666

CYLINDER BLOCK KIT

$488.99

$

Usually ships in 3-6 days

0

131

Exmark 110-8561

PUMP BLOCK ASM

$344.99

$

Usually ships in 3-6 days

0

132

Exmark 117-5362

CONTROL ARM KIT

$28.99

$

In Stock, only 1 left!

0

133

Exmark 106-8688

BRAKE ARM KIT

$37.99

$

Usually ships in 3-6 days

0

134

Exmark 112-9861

CENTER SECTION FILTER KIT

$523.99

$

Usually ships in 3-6 days

0

135

Exmark 114-1634

FILTER KIT

$42.99

$

Usually ships in 3-6 days

0

136

Exmark 120-5548

121-5730
(Superseded to 121-5730)

$98.99

$

Usually ships in 3-6 days

0

137

Exmark 107-2489

BYPASS ARM KIT

$80.99

$

Usually ships in 3-6 days

0

138

Exmark 120-7101

121-5731
(Superseded to 121-5731)

$193.99

$

Usually ships in 3-6 days

0

139

Exmark 105-1928

121-5729
(Superseded to 121-5729)

$113.99

$

In Stock, only 1 left!

0

150

Exmark 104-5349

FITTING-SAE

$67.99

$

Usually ships in 3-6 days

0

151

Exmark 115-8302

HOSE

$6.49

$

Usually ships in 3-6 days

0

152

Exmark 104-5361

O-RING

$8.49

$

Usually ships in 3-6 days

0

154

Exmark 120-7100

BOLT-SELF TAPPING

$

$

Not available

157

Exmark 120-7102

121-5729
(Superseded to 121-5729)

$113.99

$

In Stock, only 1 left!

0

160

Exmark 120-7103

SEAL AND RING KIT

Note: Not illustrated

$29.99

$

Usually ships in 3-6 days

0

161

Exmark 114-8467

DISCONTINUED
(Superseded to 130-8482)

Note: Not illustrated

$256.99

$

Usually ships in 3-6 days

0
