QT13068KVSYA - Generac 130kW Home Standby Generator (SN: 5883374 - 5883374) (2010) C5 Cooling System Fan Drive (0H2836) Parts Diagram

130kW Home Standby Generator

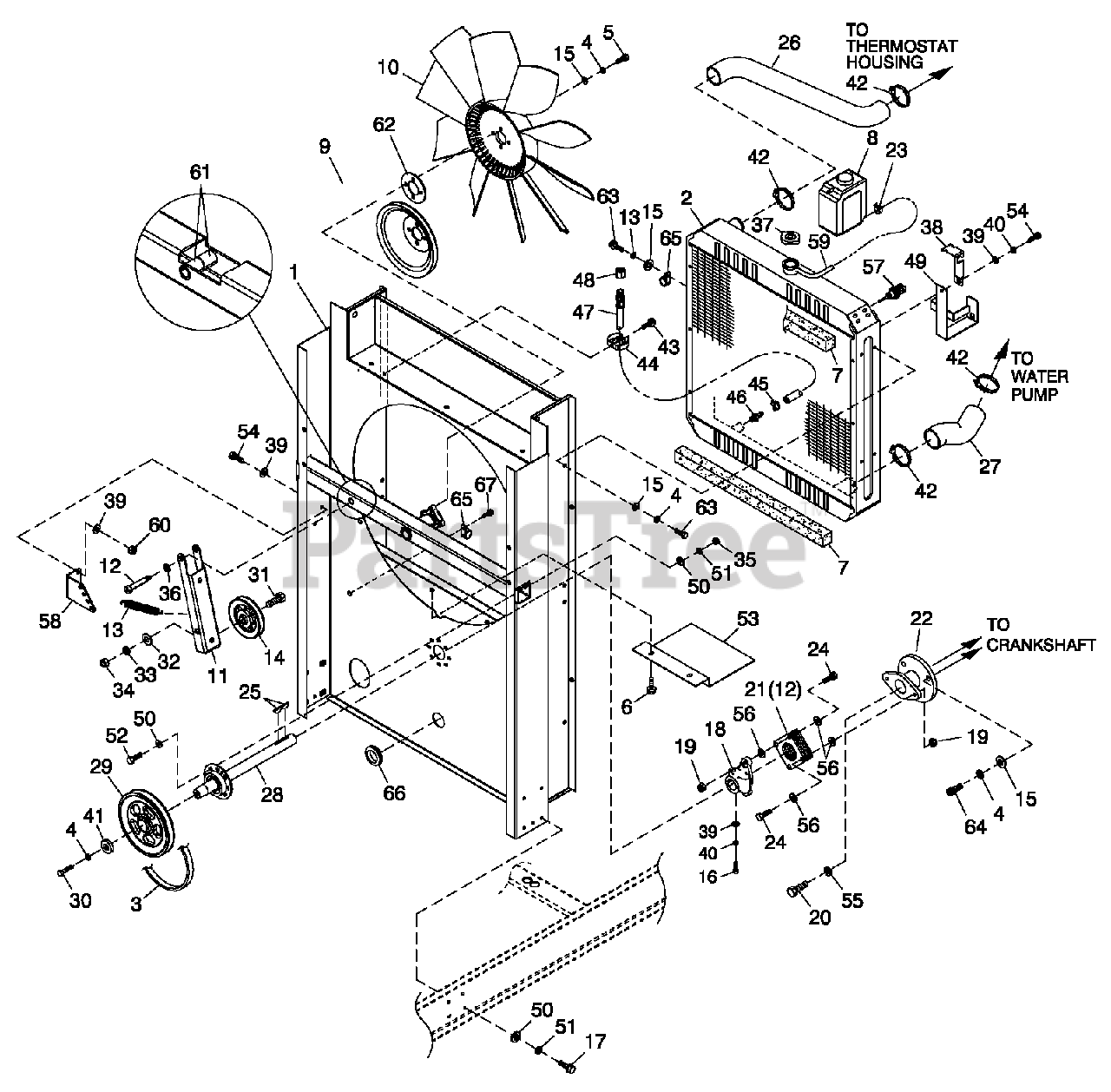

C5 Cooling System Fan Drive (0H2836) Parts Diagram

  • Title

1

Generac 0H20530ST03

WELDMENT RADIATOR SUPPORT C5

$1870.99

$

Usually ships in 2-12 days

0

2

Generac 0F2611

RADIATOR 680 X 680 X 70 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$2533.99

$

Usually ships in 2-12 days

0

3

Generac 0F5254

V-BELT 31/64" X 62-3/8"

$40.99

$

In Stock, only 1 left!

0

Generac 0F7077

V-BELT 1/2" X 63-3/8" (6.8L, 100KW & 130KW)

$142.99

$

Usually ships in 2-12 days

0

4

Generac 046526

WASHER LOCK M10

$

$

Not available

5

Generac 059981

SCREW HHC M10-1.5 X 30 C10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

6

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

7

Generac 052250

TAPE FOAM 1 X 1 (26.75" LG)

$

$

Not available

8

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

9

Generac 0F2573

PULLEY FAN V-GROOVE 9"

$76.99

$

Usually ships in 2-12 days

0

10

Generac 0F2610

FAN 26" LH ROTATION

$237.99

$

Usually ships in 2-12 days

0

11

Generac 0H20620ST03

ARM BELT TENSIONER

$74.99

$

Usually ships in 2-12 days

0

12

Generac 0H2051

SHOULDER BOLT 1/2 X 2-1/4"

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$9.99

$

Usually ships in 2-12 days

0

13

Generac 0F2862

SPRING TENSION CPL

$9.99

$

Usually ships in 2-12 days

0

14

Generac 0F2560

PULLEY V-BELT 4" FLANGED

$27.99

$

In Stock, only 1 left!

0

15

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

16

Generac 039287

SCREW HHC M8-1.25X45C8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

17

Generac 0C8566

SCREW HHFC M6-1.0X20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

18

Generac 0F2561

HUB FLEX PLATE

$48.99

$

Usually ships in 2-12 days

0

19

Generac 0C8165

NUT HEX LOCK 5/16-24 NY INS

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0D6795

SCREW HHC M12-1.5X60G8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$19.99

$

Usually ships in 2-12 days

0

21

Generac 0C7043

DISK FLEX

Note: IF YOU NEED KIT ORDER P/N 0E33940SRV.KIT CONTAINS QTY-12 OF 0C7043.

$

$

Not available

22

Generac 0E8909

COUPLING HUB FLEX (MACH)

Note: IF THE HARMONIC BALANCER IS STAMPED WITH PART # 05C3E-A USE 0E8909 IF THE HARMONIC BALANCER IS STAMPED WITH 7C3E-6316-AA USE 0E8909A THE DIFFERENCE IS IN THE PILOT HOLE OF THE PULLY 0E8909 PILOT HOLE IS 57.05 TO 57.2 MM 0E8909A PILOT HOLE IS 59.05 TO 59.20

$272.99

$

Usually ships in 2-12 days

0

Generac 0E8909A

COUPLING HUB FLEX (MACHINING)

Note: IF THE HARMONIC BALANCER IS STAMPED WITH PART # 05C3E-A USE 0E8909 IF THE HARMONIC BALANCER IS STAMPED WITH 7C3E-6316-AA USE 0E8909A THE DIFFERENCE IS IN THE PILOT HOLE OF THE PULLY 0E8909 PILOT HOLE IS 57.05 TO 57.2 MM 0E8909A PILOT HOLE IS 59.05 TO 59.20

$279.99

$

Usually ships in 2-12 days

0

23

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

24

Generac 0C8146

SCREW HHC 5/16-24X1.124

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$2.49

$

Usually ships in 2-12 days

0

25

Generac 082774

KEY WOODRUFF 4X 1 9D
(Superseded to G082774)

$9.49

$

In Stock, only 2 left!

0

26

Generac 0F2686

HOSE RADIATOR UPPER CPL

$94.99

$

Usually ships in 2-12 days

0

27

Generac 0F5463

HOSE LOWER RAD CPL C5 6.8L

$23.99

$

Usually ships in 2-12 days

0

28

Generac 0F8695

ASSY BRG/SHAFT CPL FANDRIVE

Note: ORDER P/N 0F86950SRV

$

$

Not available

29

Generac 0F4028

PULLEY 6.5" DIA MACHINED (6.8L 100KW)

$53.99

$

Usually ships in 2-12 days

0

Generac 0F4030

PULLEY 6" DIA MACHINED (6.8L 130KW)

$49.99

$

Usually ships in 2-12 days

0

Generac 0F4032

PULLEY 5.5" DIA MACHINED (5.4L 80KW & 6.8L 150KW)

$53.99

$

Usually ships in 2-12 days

0

30

Generac 042911

SCREW HHC M10-1.5X30G8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

31

Generac 0F2872

SCREW HHC 1/2-13X2" G8

$19.99

$

Usually ships in 2-12 days

0

32

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

33

Generac 022195

WASHER LOCK 1/2

$

$

Not available

34

Generac 022196

NUT HEX 1/2-13 STEEL

$

$

Not available

35

Generac 049813

NUT HEX M6X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

36

Generac 052677

WASHER NYLON .50 X .87 X .06

$

$

Not available

37

Generac 090283

CAP RADIATOR 13 PSI

$

$

Not available

38

Generac 0F2776A

BRACKET, SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

39

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

40

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

41

Generac 052644

SPACER .5 X 1.5 X .25 STL/ZINC

$

$

Not available

42

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

43

Generac 045764

SCREW HHTT M4-0.7 X 8 BP
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

44

Generac 065852

SPRING CLIP HOLDER .37-.62

$

$

Not available

45

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

46

Generac 055596

BARBED STR 3/8 NPT X 3/8

$

$

Not available

47

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

48

Generac 069811

CAP HEX 1/4 NPT BRASS

Note: ITEM 48 IS INCLUDED WITH 47.

$

$

Not available

49

Generac 080713

BRACKET COOLANT TANK

$

$

Not available

50

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

51

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

52

Generac 042568

SCREW HHC M6-1.0X20G8.8

$

$

Not available

53

Generac 0F5050B

SHIELD RADIATOR

$272.99

$

Usually ships in 2-12 days

0

54

Generac 039253

SCREW HHC M8-1.25X20G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

55

Generac 051769

WASHER LOCK M12

$

$

Not available

56

Generac 0C8145

WASHER FLEX (THIN)

$2.99

$

Usually ships in 2-12 days

0

57

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF

$48.99

$

Usually ships in 2-12 days

0

58

Generac 0H23980ST03

BRACKET TENSIONER SPRING

$29.99

$

Usually ships in 2-12 days

0

59

Generac 029032

HOSE 9/32 ID (43"LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0

60

Generac 049820

NUT HEX LOCK M8-1.25 NY INS
(Superseded to G049820)

$0.99

$

In Stock, Qty 7

0

61

Generac 0H2844

BEARING SLEEVE 1/2/ X 3/4 X 1

Note: ITEM 61 IS INCLUDED WITH ITEM 1.

$13.99

$

Usually ships in 2-12 days

0

62

Generac 0G53150AL0R

SPACER CPL COOLING FAN 1/8"

$11.99

$

Usually ships in 2-12 days

0

63

Generac 051756

SCREW HHC M10-1.5X20C8.8

Note: QTY REQ. FOR OPEN SETS. / QTY REQ. FOR ENCLOSED SETS.

$

$

Not available

64

Generac 052625

SCREW SHC M10-1.5X 35 G12.9

$

$

Not available

65

Generac 055934H

CLAMP STUVNL.62 X . 406 Z

Note: QTY REQ. FOR OPEN SETS. / QTY REQ. FOR ENCLOSED SETS.

$3.49

$

Usually ships in 2-12 days

0

66

Generac 072252

GROMMET 1.37 X .06 X 1.00

$

$

Not available

67

Generac 0D6029

SCREW HHTT M6-1.0X 16ZYC

$18.99

$

Usually ships in 2-12 days

0
