QT13068KVSYA - Generac 130kW Home Standby Generator (SN: 5883374 - 5883374) (2010) Battery Charger H-panel 10A12V (0G4140D) Parts Diagram

130kW Home Standby Generator

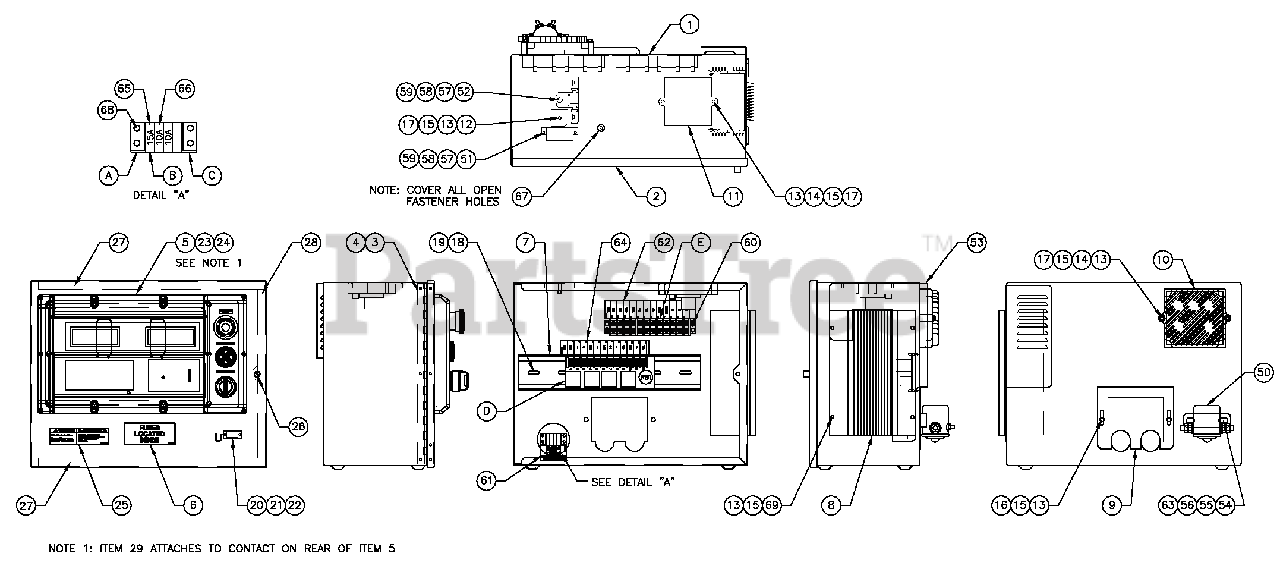

Battery Charger H-panel 10A12V (0G4140D) Parts Diagram

  • Title

COMPONENTS INCLUDED IN 0G4140E

$

$

Not available

1

Generac 0F1823CST03

ENCLH/G CONTROL PANEL

$

$

Currently unavailable

2

Generac 0F1824AST03

COVER CONTROL PANEL

$120.99

$

Usually ships in 2-12 days

0

3

Generac 0F2606

HINGECONTINUOUSH PANEL

$18.99

$

Usually ships in 2-12 days

0

4

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

5

Generac 0F5763

ASSYPROGRAMMEDH-100

Note: ORDER 0F2815

$

$

Not available

6

Generac 0F1732

DECAL FUSES LOCATED INSIDE

$53.99

$

Usually ships in 2-12 days

0

7

Generac 0E9764

RAILSNAPTRACK PCB HOLDER BULK

$33.99

$

Usually ships in 2-12 days

0

8

Generac 0F1740C

ASSY PCB 10A ULBATT CHRGR12V

$779.99

$

Usually ships in 2-12 days

0

9

Generac 0F1958

PLATE HARNESS CLAMP

$51.99

$

Usually ships in 2-12 days

0

10

Generac 0F2256

ASSY PCB PWR AVR W/AMP HEADER

$344.99

$

In Stock, only 1 left!

0

11

Generac 0E3161

ASSY PCB BOSCH GOV DRIVER

Note: ORDER P/N 0E31610SRV.

$

$

Not available

12

Generac 029673

DIO BRIDGE25A 600V

$

$

Not available

13

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

14

Generac 079224

SCREW PPHM M5-0.8X 30SS

$

$

Not available

15

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

16

Generac 0F5886

SCREW HHPM M5-0.8 X 12

$0.99

$

Usually ships in 2-12 days

0

17

Generac 051716

NUT HEXM5-0.8 G8 YEL CHR
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

18

Generac 043180

WASHER FLAT M4

$

$

Not available

19

Generac 0C3990

SCREW PHTT M4-0.7X 10ZYC

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0F4333

CONN DUST CAP W/CHAIN DB9

$10.99

$

Usually ships in 2-12 days

0

21

Generac 0F5883

WASHER FLAT M3.5

$0.99

$

Usually ships in 2-12 days

0

22

Generac 0F5884

SCREW PHTT M3.5-0.6 X 10

$

$

Not available

23

Generac 055014

SCREW PPHM M4-0.7X 8 BLXOX

$

$

Not available

24

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

25

0G 3546

DECAL WRNB ATT CHRG12/24V BI

$

$

Not available

26

0G 3648

M5-0.8 CAPTIVE PANEL KNLD HD

$

$

Not available

27

Generac 0F6305

SEAL COVER 3.18 X 12.7X 382

Note: THIS PART IS BASIC WEATHER STRIPPING AVAIL. FROM ANY HARDWARE STORE. WE DO NOT STOCK IT

$

$

Currently unavailable

28

Generac 0F6305A

SEAL COVER 3.18 X 12.7X 283

Note: THIS PART IS JUST BASIC WEATHER STRIPPING AVAILABLE FROM HARDWARE STORES. WE DO NOT STOCK

$

$

Currently unavailable

29

0G 4329

HARNESS H-PNL INTEGRATED SW (N(

$

$

Not available

COMPONENTS INCLUDED IN WIRE HARNESS

$

$

Not available

A

Generac 0F1263

ADPTR RH SIDE WICKMANN 178.6191

$

$

Not available

B

Generac 0F1262

HOLDERFUSE WICKMANN 178.6150

$8.49

$

Usually ships in 2-12 days

0

C

Generac 0F1264

ADPTR LH SIDEWICKMANN 178.6192

$

$

Not available

D

0E 9049B

ASSY PCB G-PANEL RELAY 12VDC

$

$

Not available

E

Generac 055911

BLOCK TERM 20A 12X 6 X1100V

$

$

Not available

COMPONENTS NOT INCLUDED IN 0G4140E OR WIRE HARNESS

$

$

Not available

50

Generac 056739

RELAY CONTACTOR 12VDC
(Superseded to G056739)

$163.99

$

Usually ships in 2-12 days

0

51

DPE BREAKERSEE DRAWING 0F9280

$

$

Not available

52

BOOST RESISTOR SEE DRAWING 0F 92 80

$

$

Not available

53

Generac 0F2627B

COVER CONTROL PANEL SIDE

$30.99

$

Usually ships in 2-12 days

0

54

Generac 022287

SCREW HHC 1/4-20X 3/4G5

$

$

Not available

55

Generac 022473

WASHER FLAT M6-1/4
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

56

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

57

Generac 043182

WASHER LOCK M3
(Superseded to G043182)

$0.99

$

Usually ships in 2-12 days

0

58

Generac 051714

NUT HEXM3-0.5 G8 YEL CHR
(Superseded to G051714)

$0.99

$

In Stock, Qty 8

0

59

Generac 052777

WASHER FLAT M3

$

$

Not available

60

Generac 0C2323

SCREW PHTT#6-32X 5/8ZYC

$0.99

$

Usually ships in 2-12 days

0

61

Generac 0F5459

DECAL CPL CONTROL PANEL FUSES

$0.99

$

Usually ships in 2-12 days

0

62

Generac 0F5461

DECAL CPL 5.4/6.8LTB3

$

$

Currently unavailable

63

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

64

Generac 0F5460

DECAL CPL 5.4/6.8L RELAY BOARD

$4.49

$

Usually ships in 2-12 days

0

65

0E 7403C

FUSE ATO TYPE 15 AMP (BLUE)

$

$

Not available

66

Generac 0E7403B

FUSE ATO TYPE 10 AMP (RED)

$1.49

$

Usually ships in 2-12 days

0

67

Generac 0F6145

SEAL WEATHER.45"DIA

$1.49

$

Usually ships in 2-12 days

0

68

Generac 0C2699

SCREW PHTT#6-32X 3/8ZYC

$0.99

$

Usually ships in 2-12 days

0

69

Generac 0C2266

SCREW PHTT M5-0.8X 16ZYC

$0.99

$

Usually ships in 2-12 days

0
