QT13068GNSN - Generac 130kW Home Standby Generator (SN: 4369591 - 4814130) (2007) Fuel Natural Gas Ford 6.8L 130Kw & 6.8L 150Kw (0G8623A) Parts Diagram

130kW Home Standby Generator

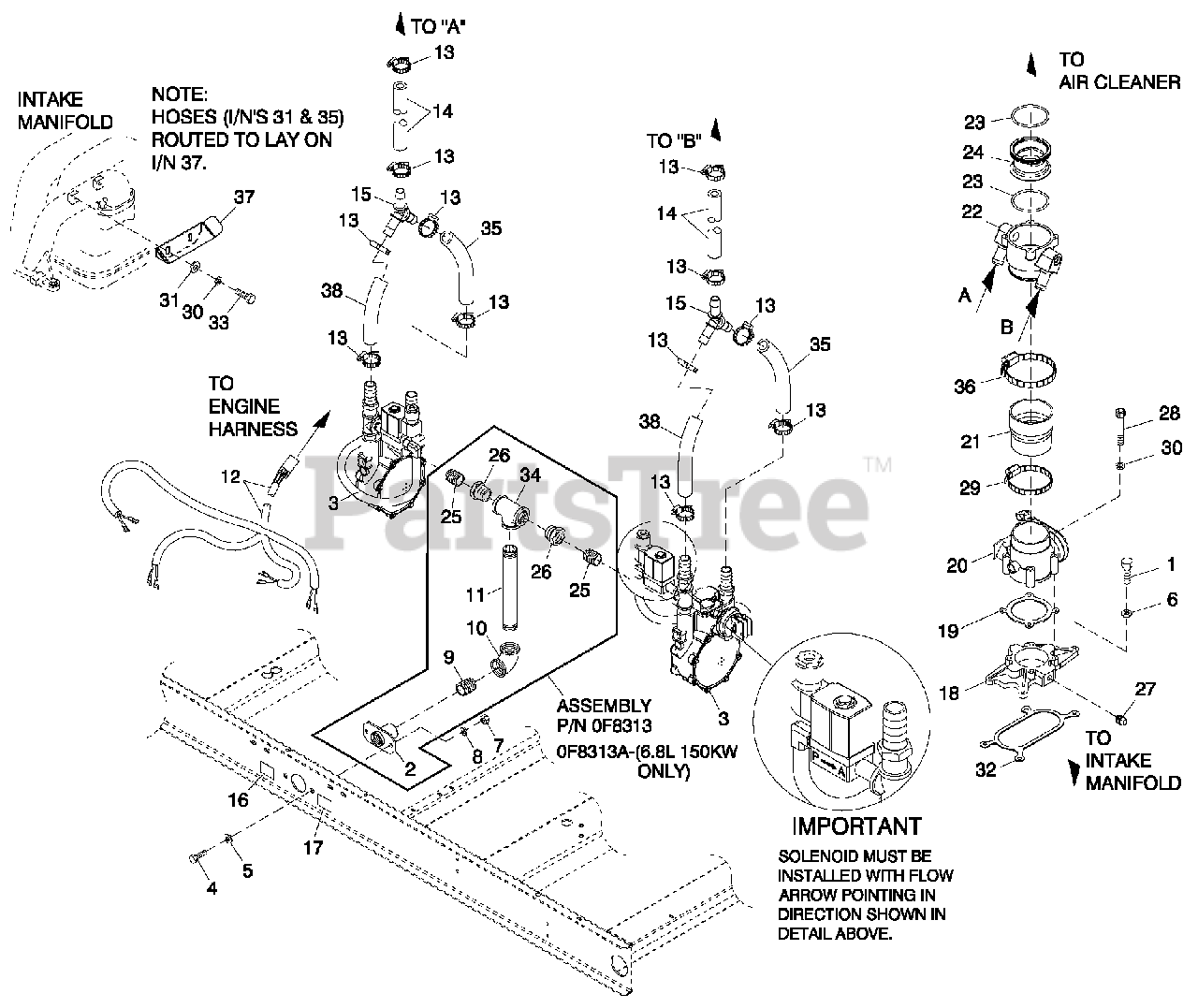

Fuel Natural Gas Ford 6.8L 130Kw & 6.8L 150Kw (0G8623A) Parts Diagram

  • Title

1

Generac 033212

SCREW HHC 5/16-18 X 1-1/4 G5

$

$

Not available

2

Generac 065908

SUPPORT NAT GAS SOLENOID

$

$

Not available

3

0G9191A

REG ASSY 6.8L 130 KW DUAL NG QT

$

$

Not available

0G9191B

REG ASSY 6.8L 150 KW DUAL NG QT

$

$

Not available

4

Generac 052617

SCREW HHC $12-1.75 X 20 G8.8

$

$

Not available

5

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 045773

NUT HEX M12-1.75 G8 YEL CHR

$

$

Not available

8

Generac 022195

WASHER LOCK 1/2

$

$

Not available

9

Generac 039130

NIPPLE CLOSE 1.25 NPTX 1.625

$

$

Not available

10

Generac 030131

ELBOW 90D 1-1/4 NPT

$

$

Not available

11

Generac 031015

NIPPLE PIPE 1-1/4 NPT X 3 (130 KW)

$

$

Not available

Generac 088963

NIPPLE PIPE 1.25 NPT X 5.5 BLIRN (150 KW)

$

$

Not available

12

Generac 0G5989

HARNESS, FUEL JUMPER DUAL REG

$584.99

$

Usually ships in 2-12 days

0

13

Generac 057822

CLAMP HOSE #8 .53-1.00
(Superseded to G057822)

$3.99

$

Usually ships in 2-12 days

0

14

Generac 059057

HOSE 3/4 ID SAE-30R2 (42" LG)

$

$

Not available

15

Generac 0F4408

Y CONNECTOR 500 SERIES BARBS

$12.99

$

Usually ships in 2-12 days

0

16

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

17

Generac 050279

DECAL FUEL INLET NG

$

$

Not available

18

Generac 0H2353

ASSY,ADAPTER,THROTTLE BODY

Note: ORDER 0J7476

$

$

Not available

19

Generac 0E4390

GASKET GOVERNOR ACTUATOR

$2.99

$

Usually ships in 2-12 days

0

20

Generac 0E4392

ACTUATOR BOSCH 60 GOVERNOR

$753.99

$

Usually ships in 2-12 days

0

21

Generac 0F0960

REDUCER 3.0" TO 2.75" TURBO

$141.99

$

Usually ships in 2-12 days

0

22

Generac 0F3885

MIXER 40/60MM ACTUATOR ASSY

$144.99

$

Usually ships in 2-12 days

0

23

Generac 0G3167

O-RING 2-3/4X3/32X2-15/16

$1.49

$

Usually ships in 2-12 days

0

24

Generac 0F3691F

VENTURI THROTTLE 44MM (130 KW)

$5.99

$

Usually ships in 2-12 days

0

Generac 0F3691J

VENTURI THROTTLE 50MM (150 KW)

$5.49

$

Usually ships in 2-12 days

0

25

Generac 026915

NIPPLE CLOSE 3/4X1.375

$

$

Not available

26

Generac 0A8064

BSHG RDCRHEX1-1/4-3/4

$35.99

$

Usually ships in 2-12 days

0

27

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

28

Generac 0D2157

SCREW SHC M6-1.0 X 50 C8.8

$1.49

$

Usually ships in 2-12 days

0

29

Generac 039294

CLAMP HOSE #44 2.31-3.25

$

$

Not available

30

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

31

Generac 049811

WASHER FLAT M6
(Superseded to G049811)

$0.99

$

In Stock, Qty 5

0

32

Generac 0D2698

GASKET ADAPTER THROT BODY

$48.99

$

Usually ships in 2-12 days

0

33

Generac 042568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

34

Generac 064346

PIPE TEE 1-1/4 NPT

$

$

Not available

35

Generac 059057

HOSE 3/4 ID SAE-30R2 (12" LG)

$

$

Not available

36

Generac 066212

CLAMP HOSE #52 2.81-3.75

$

$

Not available

37

Generac 0G46350ST03

BRACKET, HOSE RISER

$38.99

$

Usually ships in 2-12 days

0

38

Generac 059057

HOSE 3/4 ID SAE-30R2 (9.5" LG)

$

$

Not available
