QT10068KVSY - Generac 100kW Home Standby Generator (SN: 5112004 - 5340778) (2009) Engine Common Parts R/H Side 6.8L G/B CPL (0F3557) Parts Diagram

100kW Home Standby Generator

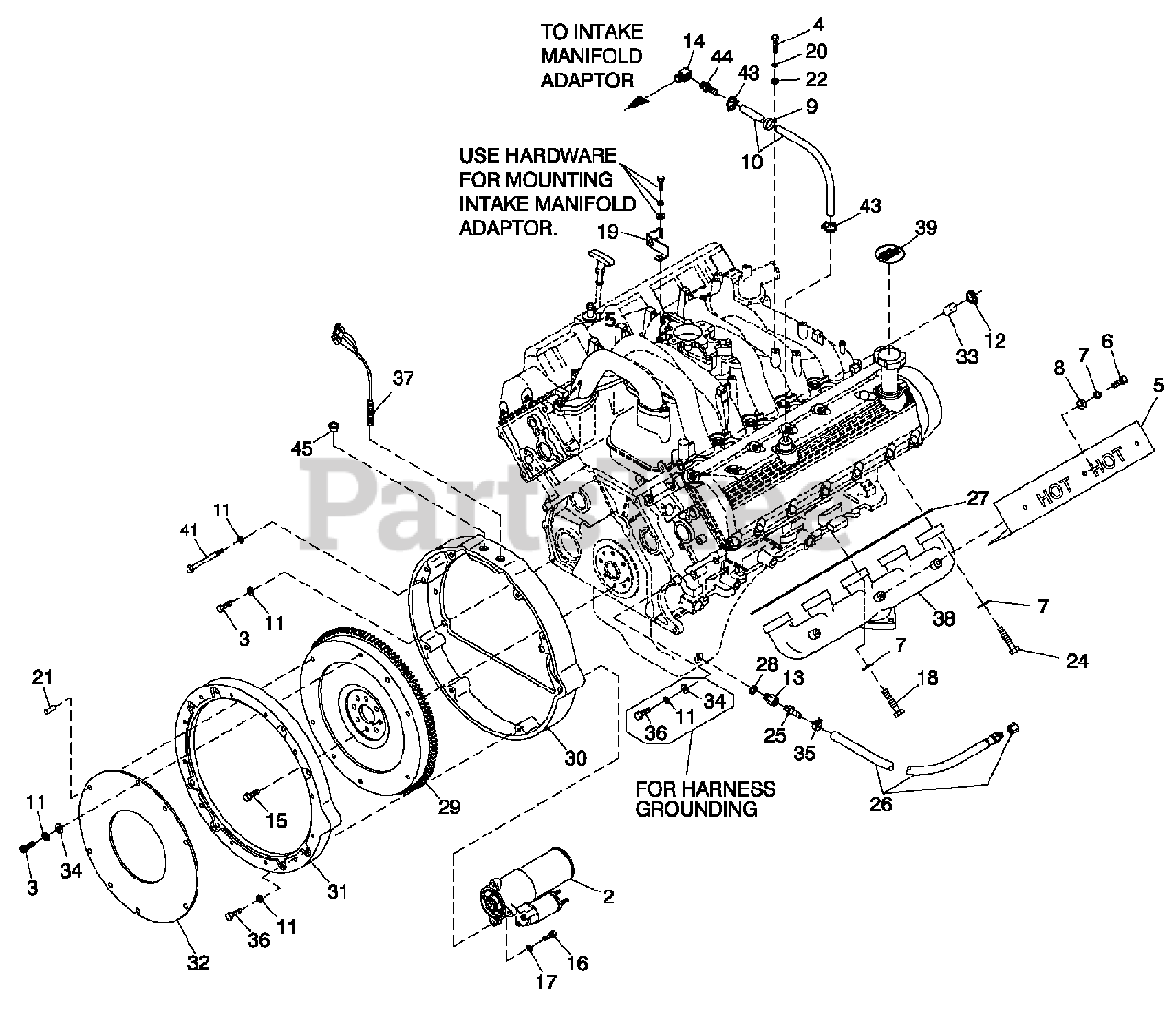

Engine Common Parts R/H Side 6.8L G/B CPL (0F3557) Parts Diagram

  • Title

2

Generac 0D5418

STARTER MOTOR FORD V-10 ENGINE

$795.93

$

Usually ships in 2-12 days

0

3

Generac 052625

SCREW SHC M10-1.5 X 35 G12.9

$

$

Not available

4

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

5

Generac 0D5623

HEAT SHIELD EXHAUST

$111.99

$

Usually ships in 2-12 days

0

6

Generac 0D2608

SCREW HHC 5/16-18 X 1/2 SSTL

$2.99

$

Usually ships in 2-12 days

0

7

Generac 070006

WASHER LOCK M8 SSTL
(Superseded to G070006)

$1.49

$

Usually ships in 2-12 days

0

8

Generac 070008

WASHER FLAT M8 SS
(Superseded to G070008)

$0.99

$

In Stock, Qty 8

0

9

Generac 055934M

CLAMP VINYL .75X.343Z

$3.49

$

Usually ships in 2-12 days

0

10

Generac 0G0321

HOSE COOL 5/8" ID 250#WP (14")

$26.99

$

Usually ships in 2-12 days

0

11

Generac 046526

WASHER LOCK M10

$

$

Not available

12

Generac 057823

CLAMP HOSE #10 .56 - 1.06 (2300 & 3000RPM UNITS ONLY)
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

13

Generac 057765

ADAPTER M14-1.50X 3/8 NPT

$

$

Not available

14

Generac 046964

ELBOW 90D 1/4 NPT F-M BRASS

$

$

Not available

15

Generac 0D5417

SCREW HHC M10-1.0 X 25 G10.9

$3.49

$

Usually ships in 2-12 days

0

16

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

17

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

18

Generac 070010

SCREW HHC M8-1.25 X 35 SS F-TH

$

$

Not available

19

Generac 0F2776A

BRACKET SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

20

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

21

Generac 048191

DOWEL PIN M10 X 24

$

$

Not available

22

Generac 022473

WASHER FLAT 1/4 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

23

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK (NOT SHOWN)

Note: l/N 23 IS FOR HOLDING SENSORS TO l/N 19.

$0.99

$

Usually ships in 2-12 days

0

24

Generac 0D9913

SCREW SHC M8-1.25X35 SS

$7.99

$

Usually ships in 2-12 days

0

25

Generac 055596

BARBED STR 3/8 NPT X 3/8

$

$

Not available

26

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

27

Generac 0D4255

GASKET EXHAUST MANIFOLD

$26.99

$

Usually ships in 2-12 days

0

28

Generac 057772

WASHER NYLON .565
(Superseded to G057772)

$2.99

$

Usually ships in 2-12 days

0

29

Generac 0D6686

ASSEMBLY 6.8L G-BOX FLYWHEEL

$1324.99

$

Usually ships in 2-12 days

0

30

Generac 0D3803

FLYWHEEL HOUSING MACH 6.8L V10

$

$

Not available

31

Generac 0D3805

COVER FLYWHEEL MACH 6.8L V-10

$

$

Not available

32

Generac 021113

PLATE DAMPNER RETNR

$

$

Not available

33

Generac 077996

CAP HOSE (2300 & 3000RPM UNITS ONLY)

$

$

Not available

34

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

35

Generac 048031J

HOSE CLAMP BAND 5/8"

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

36

Generac 052647

SCREW SHC M10-1.5 X 25 G12.9

$

$

Not available

37

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

38

Generac 0D3808

EXH MANIFOLD MACH 6.8L V-10

$519.99

$

Usually ships in 2-12 days

0

39

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$0.99

$

Usually ships in 2-12 days

0

41

Generac 079121

SCREW SHC M10-1.50 X 100 G10.9

$

$

Not available

43

Generac 057823

CLAMP HOSE #10 .56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

44

Generac 053660

BARBED STR 1/4 NPT X 5/8

$

$

Not available

45

Generac 087599

PLUG PLASTIC 3/8 NPT

$

$

Not available
