QT10068KVSY - Generac 100kW Home Standby Generator (SN: 5112004 - 5340778) (2009) CPL C3 H Control CB Connection (0F3393D) Parts Diagram

100kW Home Standby Generator

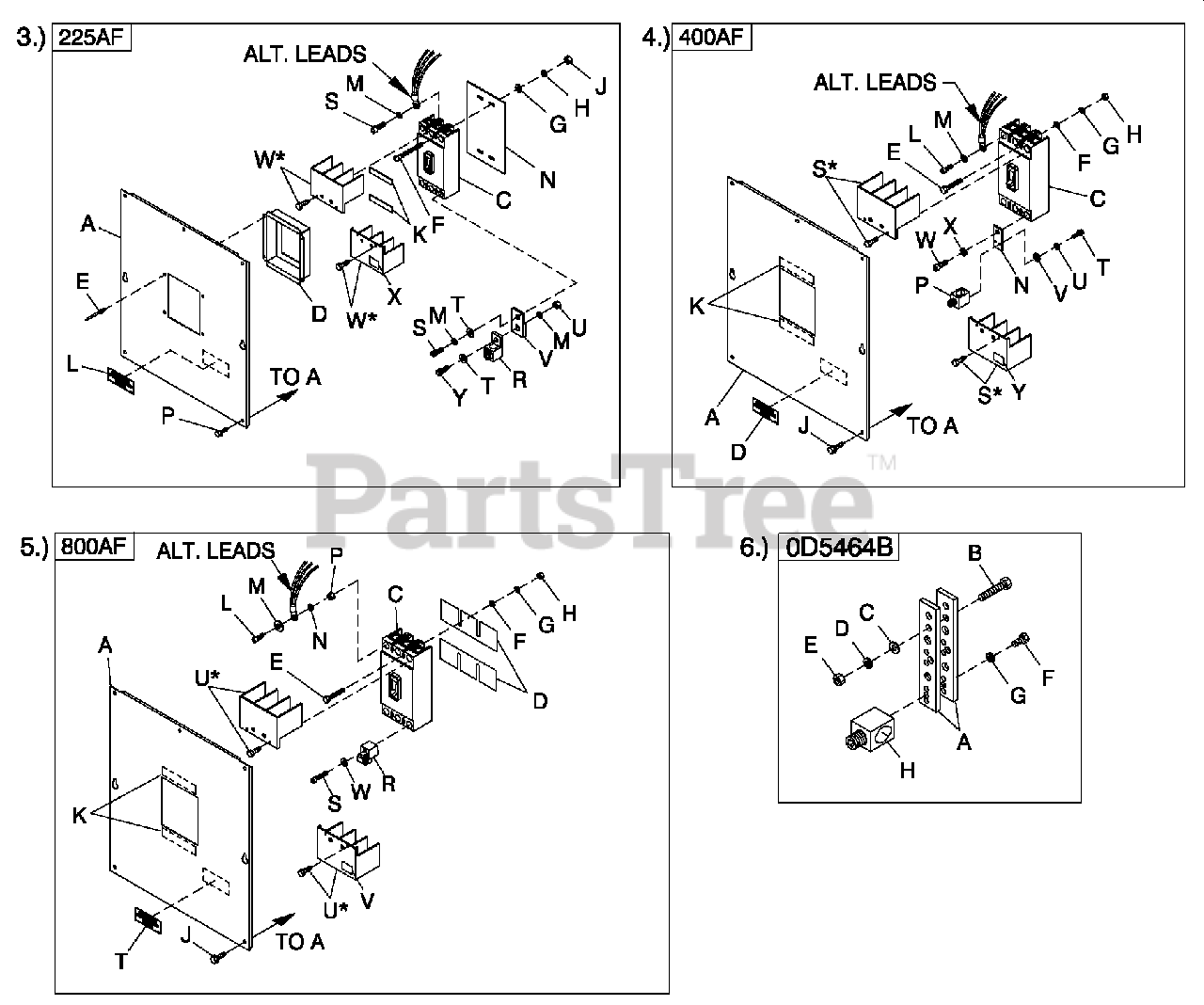

CPL C3 H Control CB Connection (0F3393D) Parts Diagram

  • Title

3

UL CIRCUIT BREAKER (225AF)

$

$

Not available

A

Generac 0F4173

COVER C B C 5 225AF

$165.99

$

Usually ships in 2-12 days

0

C

0F4165$

CIRCUIT BREAKERS 200A FRAME

$

$

Not available

D

Generac 0F4186

COVER CB DISH 225AF

$44.99

$

Usually ships in 2-12 days

0

E

Generac 036261

RIVET POP .125 X .275 S S

$

$

Not available

F

Generac 053640

SCREW RHM #8-32X3-1/4

$

$

Not available

G

Generac 038150

W ASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

H

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

J

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

L

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

M

Generac 022129

W ASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

N

Generac 0F8432

INSULATOR CB225AF

$16.99

$

Usually ships in 2-12 days

0

P

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

R

Generac 0F8451

LUG SLD LSS 300 MCM-6 AL/CU

$16.99

$

Usually ships in 2-12 days

0

S

Generac 049897

SCREW SHC M8-1.25X20G8

$

$

Not available

T

Generac 022145

W ASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

U

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

V

Generac 0F8843

BUS BAR 200A LUG ADAPTOR

$29.99

$

Usually ships in 2-12 days

0

W

TERMINAL COVER CB

Note: HARDWARE FORMTG. CB TERMINAL COVERS IS SU P PLIED WITH CIRCUIT BREAKERS.

$

$

Not available

X

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

Y

Generac 058306

SCREW SHC M8-1.25 X 25 G12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

4

UL CIRCUIT BREAKER (400AF)

$

$

Not available

A

Generac 0F4175

COVER C B C 5 400AF

$169.99

$

Usually ships in 2-12 days

0

C

0F4166$

CIRCUIT BREAKERS 400A FRAME

$

$

Not available

D

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

E

Generac 042419

SCREW RHM 10-32X4

$

$

Not available

F

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

G

Generac 022152

W ASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

H

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

J

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

L

Generac 052647

SCREW SHC M10-1.5X25G12.9

Note: 2/3 QTY. 2 P OLE & 3 POLE CB.

$

$

Not available

M

Generac 046526

WASHER LOCK M10

Note: 2/3 QTY. 2 P OLE & 3 POLE CB.

$

$

Not available

N

W/CB

BUS BAR CB ADAPTER 225-400 A

$

$

Not available

P

Generac 0A7822

LUG SLD LSS 600/250-1/0 X 1/4-28

$46.99

$

Usually ships in 2-12 days

0

R

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

S

TERM COVER CB

Note: HARDWARE FORMTG. CB TERMINAL COVERS IS SU P PLIED WITH CIRCUIT BREAKERS.

$

$

Not available

T

Generac 023334

SCREW HHC 1/4-28 X 1/2 G5

$

$

Not available

U

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

V

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

W

W/CB

SCREW SHC M10-1.5X25G12.9

Note: 2/3 QTY. 2 P OLE & 3 POLE CB.

$

$

Not available

X

W/CB

WASHER LOCK M10

Note: 2/3 QTY. 2 P OLE & 3 POLE CB.

$

$

Not available

Y

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

5

UL CIRCUIT BREAKER (800AF)

$

$

Not available

A

Generac 0F4176

COVER C B C 5 800AF

$

$

Currently unavailable

C

0F4167$

CIRCUIT BREAKERS 800A FRAME

$

$

Not available

D

Generac 0F8433

INSULATOR CB800AF

$

$

Not available

E

024196

SCREW RHM 1/4-20X3-1/2

$

$

Not available

F

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

G

Generac 022097

W ASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

J

Generac 0C2454

SCREW THF M6-1X16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

K

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

L

Generac 060619

SCREW SHC M10-1.50X 40 G12.9

$

$

Not available

M

Generac 022131

WASHERFLAT 3/8-M10ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

N

Generac 022237

WASHER LOCK 3/8

$

$

Not available

P

Generac 045772

NUT HEX M10-1.5 G 8YEL CHR

$

$

Not available

R

Generac 0F9721

LUG SLD LSS 3/0-400X3 MCM AL/CU

$226.99

$

Usually ships in 2-12 days

0

S

Generac 0D2157

SCREW SHC M6-1.0X50G8.8

$1.49

$

Usually ships in 2-12 days

0

T

Generac 0F1733

DECAL CUSTOMER CONNECT INSIDE

$2.49

$

Usually ships in 2-12 days

0

U

W/ CB

TERM COVERVITZROTECH 400AF CB

Note: HARDWARE FORMTG. CB TERMINAL COVERS IS SU P PLIED WITH CIRCUIT BREAKERS.

$

$

Not available

V

Generac 0G3259

DECALTERMINALSHO CK HZD BI

$2.99

$

Usually ships in 2-12 days

0

W

Generac 022097

W ASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

6

NEUTRAL BLOCK 390 / 200-400A

$

$

Not available

A

Generac 0D5466

BUS BAR NEUTRAL BLOCK 390

$23.99

$

Usually ships in 2-12 days

0

B

Generac 039287

SCREW HHC M8-1.25 X 45 G8.8 FT

$

$

Not available

C

Generac 022145

WASHERFLAT 5/16-M8ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

D

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

E

Generac 045771

NUT HEX M8-1.25G8YELCHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

F

Generac 045335

SCREW HHC 1/4-28 X 3/4 G5

$

$

Not available

G

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 0A7822

LUG SLD LSS 600/250-1/0X1/4-28

$46.99

$

Usually ships in 2-12 days

0
