QT10068KNSY - Generac 100kW Home Standby Generator (SN: 5305008 - 5305008) (2009) Enclosure C5 (0G9784) Parts Diagram

100kW Home Standby Generator

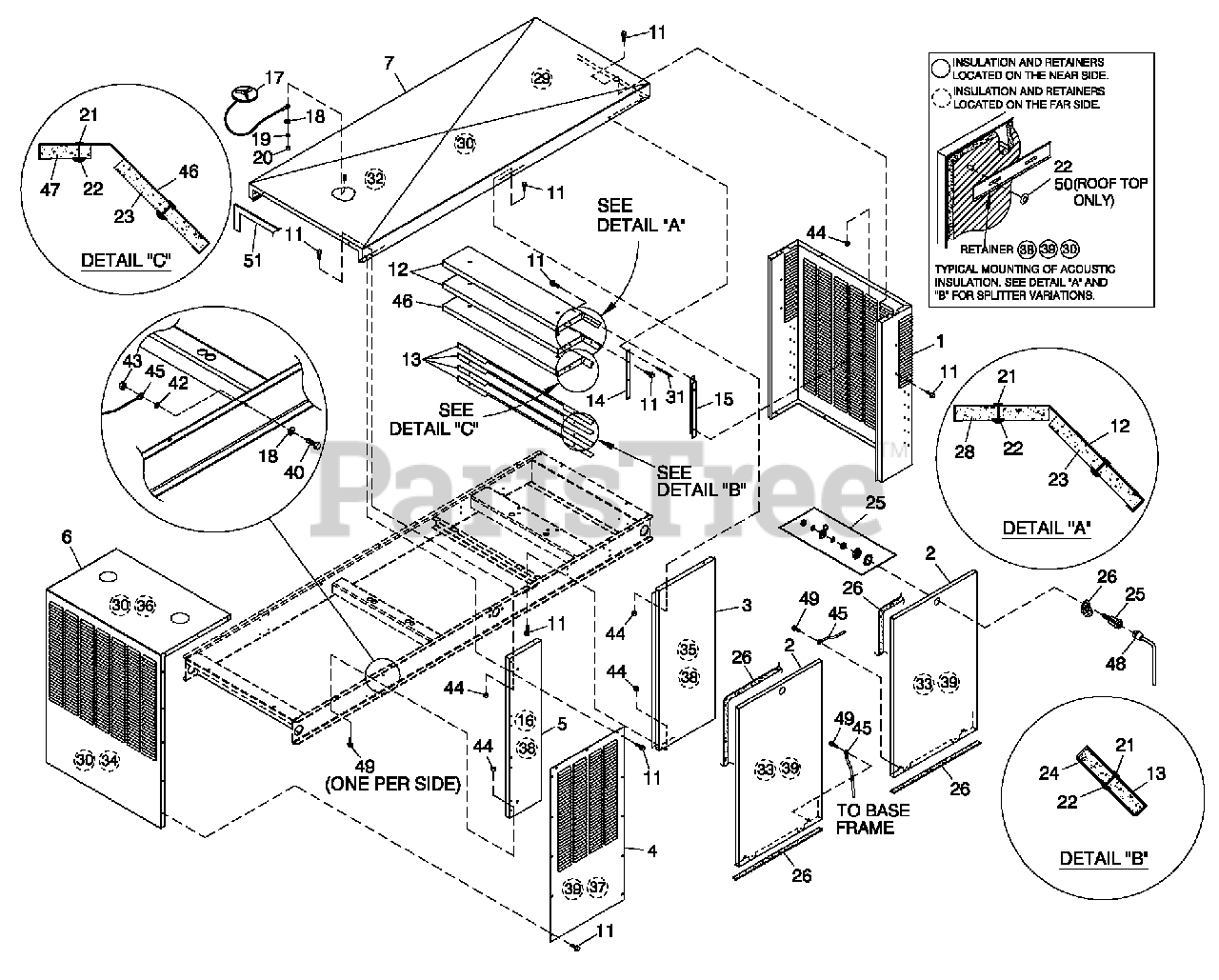

Enclosure C5 (0G9784) Parts Diagram

  • Title

1

Generac 0F58730ST01

REAR WRAP C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALUMINUM, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXX0ST05 = WHITE/ STEEL, 0FXXXX0AL05 = WHITE / ALUMINUM, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALUMINUM.

$761.99

$

Usually ships in 2-12 days

0

2

Generac 0F58680ST01

DOOR C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALUMINUM, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXX0ST05 = WHITE/ STEEL, 0FXXXX0AL05 = WHITE / ALUMINUM, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALUMINUM.

$402.99

$

Usually ships in 2-12 days

0

3

Generac 0F58720ST01

CENTER SUPPORT C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALUMINUM, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXX0ST05 = WHITE/ STEEL, 0FXXXX0AL05 = WHITE / ALUMINUM, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALUMINUM.

$331.99

$

Usually ships in 2-12 days

0

4

Generac 0F58710AL01

DISCHARGE DUCT LH & RH SIDE C5

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXXALT14 = GRAY / ALUMINUM. MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$571.99

$

Usually ships in 2-12 days

0

5

Generac 0F58690ST01

FRONT CORNERS C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALUMINUM, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXX0ST05 = WHITE/ STEEL, 0FXXXX0AL05 = WHITE / ALUMINUM, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALUMINUM.

$193.99

$

Usually ships in 2-12 days

0

6

0G97790ST01

DUCT, CENTER DISCHARGE

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALUMINUM, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXX0ST05 = WHITE/ STEEL, 0FXXXX0AL05 = WHITE / ALUMINUM, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALUMINUM.

$

$

Not available

7

Generac 0F58670AL01

ROOF C5 ALUM

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT, 0FXXXX0AL08 = T- GRAY / ALUMINUM, 0FXXXXALT13 = BISQUE / ALUMINUM, 0FXXXXALT14 = GRAY / ALUMINUM

$2143.99

$

Usually ships in 2-12 days

0

11

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

12

Generac 0F2766

SPLITTER

$197.99

$

Usually ships in 2-12 days

0

13

Generac 0F3181

SPLITTER SHORT

$102.99

$

Usually ships in 2-12 days

0

14

Generac 0F3185

STRINGER SPLITTER C3

$40.99

$

Usually ships in 2-12 days

0

15

Generac 0F3416

SUPPORT SPLITTER C5 130KW

$178.99

$

Usually ships in 2-12 days

0

16

Generac 0F3949

INSULATION CORNER POST

$344.99

$

Usually ships in 2-12 days

0

17

Generac 0C2634A

ASSEMBLY COVER ACCESS
(Superseded to 0C2634ASRV)

Note: USE 0C2634ASRV

$18.99

$

Usually ships in 2-12 days

0

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$0.99

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DOME #4-40

$

$

Not available

23

Generac 0F3949B

INSULATION SPLITTER

$52.99

$

Usually ships in 2-12 days

0

24

Generac 0F3949A

INSULATION SHORT LOUVER

$51.99

$

Usually ships in 2-12 days

0

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

Usually ships in 2-12 days

0

26

Generac 0E5968

GASKET EXTRUDED TRIM (566" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$3.99

$

Usually ships in 2-12 days

0

27

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

Usually ships in 2-12 days

0

28

Generac 0F3949L

INSULATION SPLITTER SML

$34.99

$

Usually ships in 2-12 days

0

29

Generac 0F3949E

INSULATION ROOFTOP REAR

$224.99

$

Usually ships in 2-12 days

0

30

Generac 0F3890A

RETAINER INSULATION (740)

$15.99

$

Usually ships in 2-12 days

0

31

Generac 087233

RIVET POP .1875 X .450 SS

$

$

Not available

32

Generac 0F3949C

INSULATION ROOFTOP

$230.99

$

Usually ships in 2-12 days

0

33

Generac 0F3949D

INSULATION DOOR

$176.99

$

Usually ships in 2-12 days

0

34

Generac 0F3949G

INSULATION DISCHARGE DUCT

$80.99

$

Usually ships in 2-12 days

0

35

Generac 0F3949J

INSULATION CENTER SUPPORT

$109.99

$

Usually ships in 2-12 days

0

36

Generac 0F3949K

INSULATION DISCHARGE DUCT TOP

$149.99

$

Usually ships in 2-12 days

0

37

Generac 0F3949F

INSULATION INNER DUCT SIDE

$46.99

$

Usually ships in 2-12 days

0

38

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0

39

Generac 0F3890

RETAINER INSULATION (450)

$10.99

$

Usually ships in 2-12 days

0

40

Generac 042568

SCREW HHC M6-1.0X20G8.8

$

$

Not available

42

Generac 022447

WASHER SHAKEPROOFINT1/4

$

$

Not available

43

Generac 049813

NUT HEXM6X1.0G8YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

44

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 11 & 49 THREAD FORMING FASTENER AND ITEM 44 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURED IN THE SAME MANNER.

$1.49

$

Usually ships in 2-12 days

0

45

Generac 0912970094

ASSY WIRE 14 AWG 34.8" GRN/YEL

$

$

Not available

46

Generac 0F2766A

SPLITTER C5

$209.99

$

Usually ships in 2-12 days

0

47

Generac 0F3949M

INSULATION SPLITTER SHRTMPS

$

$

Not available

48

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$11.99

$

In Stock, only 1 left!

0

49

Generac 0E3257

SCREW TH-FRM M6 W/CAP SHKPRF W

$5.49

$

Usually ships in 2-12 days

0

50

Generac 078115A

WASHER SELF LOCKING DOME #8-32

$2.49

$

Usually ships in 2-12 days

0

51

Generac 066760

STRIP SEALANT 1/8 X 1 (44.52"LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days

0
