QT10068GNSNA - Generac 100kW Home Standby Generator (SN: 4829963 - 4990458) (2008) Exhaust 5.4L & 6.8L O/S C5 (0G1344) Parts Diagram

100kW Home Standby Generator

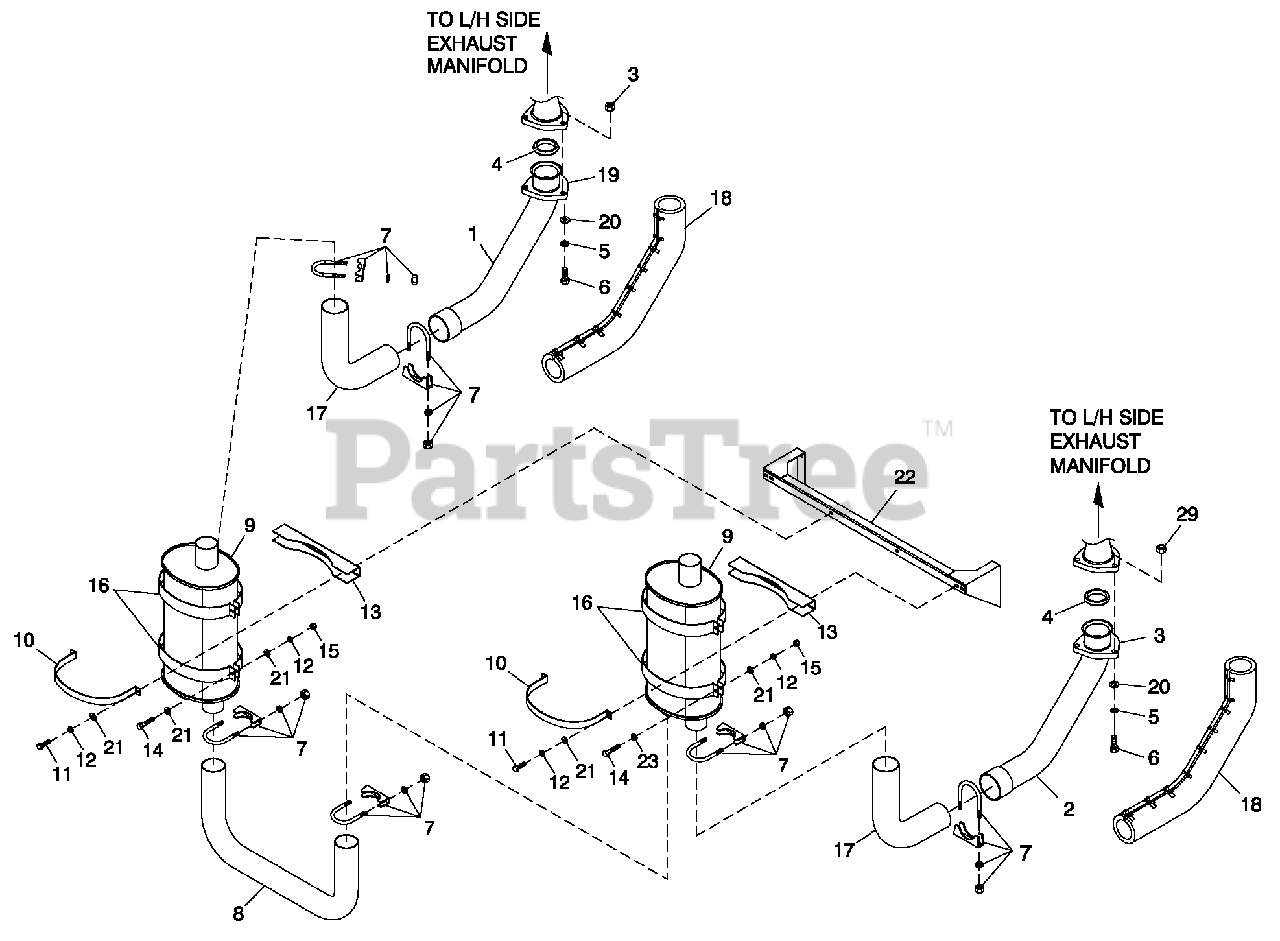

Exhaust 5.4L & 6.8L O/S C5 (0G1344) Parts Diagram

  • Title

1

Generac 0F2807C

PIPE EXH MAN R/H 6.8L G/B CPL (6.8L C5)

Note: ORDER 0F2807CSRV.

$441.99

$

Usually ships in 2-12 days

0

Generac 0F2807E

PIPE EXH MAN R/H 5.4L G/B & 2P (5.4L C5)

Note: ORDER 0F2807ESRV.

$308.99

$

Usually ships in 2-12 days

0

2

Generac 0F2807B

PIPE EXH MAN L/H 6.8L G/B CPL (6.8L C5)

Note: ORDER 0F2807BSRV.

$235.99

$

Usually ships in 2-12 days

0

Generac 0F2807D

PIPE EXH MAN L/H 5.4L G/B & 2P (5.4L C5)

Note: ORDER 0F2807DSRV.

$215.99

$

Usually ships in 2-12 days

0

3

Generac 088510

NUT HEX M10-1.5 SS

$

$

Not available

4

Generac 0A6765

RING GASKET 2.5 DIA

$21.99

$

Usually ships in 2-12 days

0

5

Generac 0F4710

WASHER LOCK M10 SS

$7.99

$

Usually ships in 2-12 days

0

6

Generac 0F7200

SCREW HHC M10-1.5 X 50 SS FTH

$10.99

$

Usually ships in 2-12 days

0

7

Generac 080762

BOLT U 3/8-16 X 2.62

$

$

Not available

8

Generac 0F2809

PIPE EXHAUST CROSSOVER

$141.99

$

Usually ships in 2-12 days

0

9

Generac 0F2981A

MUFFLER 7" X 9" X 25" (2) 2.5" IN/2.5" OUT

Note: NO LONGER AVAILABLE ORDER 0F2981ASRV

$

$

Not available

10

Generac 0F2962

MUFFLER STRAP

$66.99

$

Usually ships in 2-12 days

0

11

Generac 047411

SCREW HHC M6-1.0 X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

12

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

13

Generac 0F2830

MUFFLER BRACKET STIFFENER

$45.99

$

Usually ships in 2-12 days

0

14

Generac 049721

SCREW HHC M6-1.0 X 35 G8.8 BLK
(Superseded to G049721)

$9.49

$

In Stock, Qty 5

0

15

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

16

Generac 0F6803

MUFFLER STRAP UPPER/LOWER

$

$

Not available

17

Generac 0F6214

PIPE ELBOW EXHAUST MUFFLER

Note: IF YOU NEED THIS PART ORDER ONE OF THESE KITS: 4.6L RH ORDER 0F92070SRV 4.6L LH ORDER 0F92080SRV 5.4L RH ORDER 0F2807ESRV 5.4L LH ORDER 0F2807DSRV 6.8L RH ORDER 0F2807CSRV 6.8L LH ORDER 0F2807BSRV

$115.99

$

Usually ships in 2-12 days

0

18

Generac 0F2773C

EXHAUST BLANKET 900MM LONG (6.8L C5)

$402.99

$

Usually ships in 2-12 days

0

Generac 0F2773D

EXHAUST BLANKET 850MM LONG (5.4L C5)

$389.99

$

Usually ships in 2-12 days

0

19

Generac 0D3159

FLANGE EXHAUST

$57.99

$

In Stock, only 1 left!

0

20

Generac 088775

WASHER FLAT 3/8 SS

$

$

Not available

21

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

22

Generac 0F5447

BRACKET MUFFLER

$223.99

$

Usually ships in 2-12 days

0
