QT08054KNSNA - Generac 80kW Home Standby Generator (SN: 5954645 - 6190425) (2010) Engine Common Parts L/H Side 5.4L Cpl (0H5628B) Parts Diagram

80kW Home Standby Generator

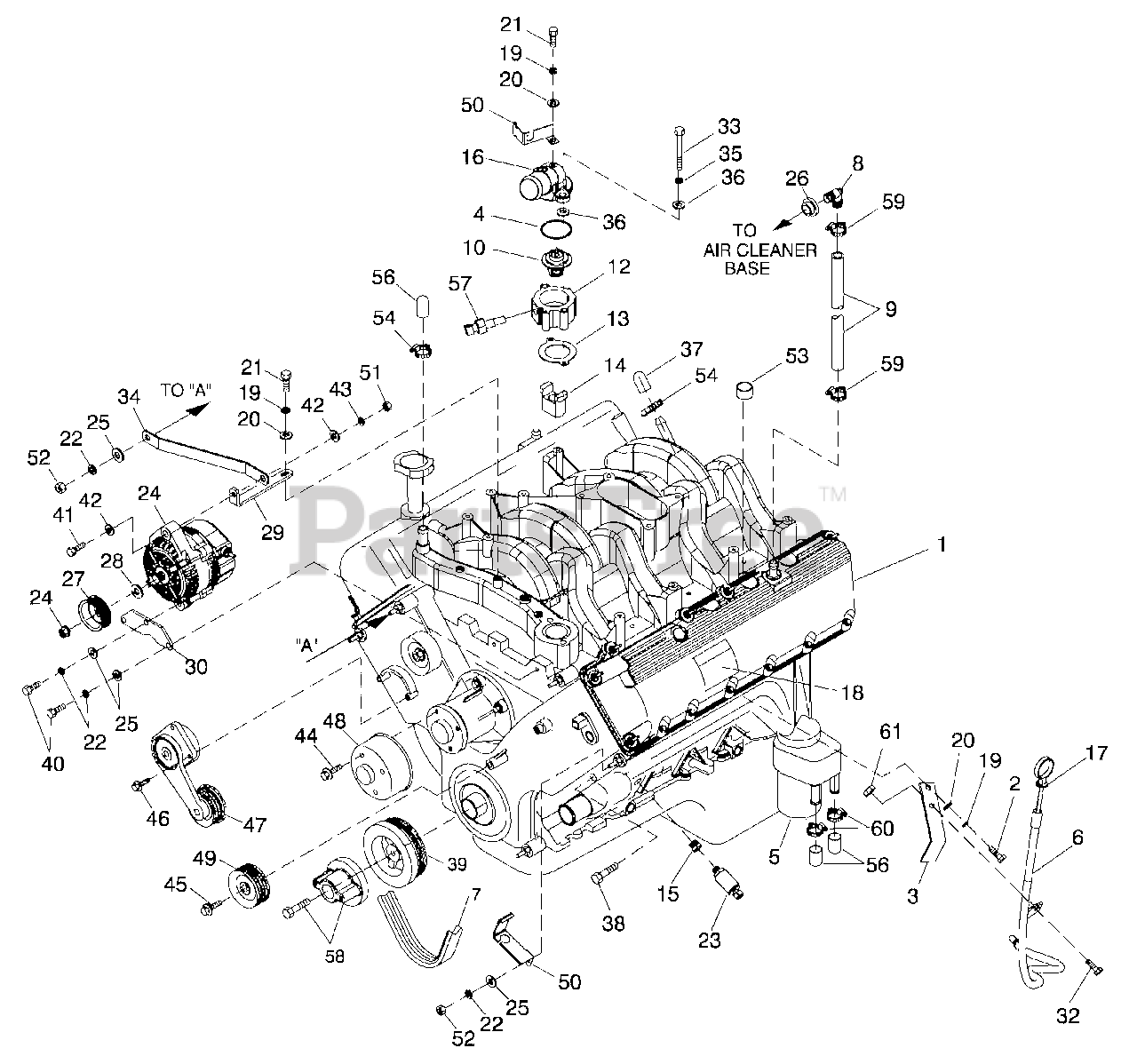

Engine Common Parts L/H Side 5.4L Cpl (0H5628B) Parts Diagram

  • Title

1

Generac 0F1960A

ENGINE G5.4LG3 2009

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Currently unavailable

2

Generac 042568

SCREW HHC M6-1.0X20 C8.8

$

$

Not available

3

0H56090ST03

BRACKET DIPSTICK TUBE

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$

$

Not available

4

Generac 0F2843

GASKET THERMOSTAT HOUSING

$27.99

$

Usually ships in 2-12 days

0

5

0 D 5419

OIL FILTER V-10 ENGINE

$

$

Not available

6

Generac 0F7316C161

TUBE DIPSTICK

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$64.99

$

Usually ships in 2-12 days

0

7

Generac 0D3488G

BELT SERPENTINE 65.0" (1800 RPM)

$123.99

$

Usually ships in 2-12 days

0

Generac 0D3488J

BELT SERPENTINE 65.3" (2650 RPM)

$81.99

$

Usually ships in 2-12 days

0

8

Generac 057795A

BARBE D E L 90 3/4PLASTIC

$6.99

$

Usually ships in 2-12 days

0

9

Generac 059057

HOSE 3/4 I D SAE-30R2 (16.75''LG)

$

$

Not available

10

THERMOSTAT ASSY

$

$

Not available

12

Generac 0G5515B

A DAPTER THERMOSTAT 4.6L G3

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$77.99

$

Usually ships in 2-12 days

0

13

Generac 0G5511

GASKET THERMOSTAT 4.2L

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$5.99

$

Usually ships in 2-12 days

0

14

Generac 0H3920

SPACER COOLANT BYPASS

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$34.99

$

Usually ships in 2-12 days

0

15

Generac 035579

BSHG R DCR HEX 1/4 TO 1/8

$

$

Not available

16

CONNECTION WATER OUTLET

$

$

Not available

17

Generac 0F7316C160

DIPSTICK

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$101.99

$

Usually ships in 2-12 days

0

18

0H0550

DECAL EPA STATIONARY EMERGENCY

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$

$

Not available

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022473

WASHER FLAT 1/4 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

21

Generac 042568

SCREW HHC M6-1.0X 20 G8.8

$

$

Not available

22

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

23

Generac 0F4612

SEN DER OIL PRESSURE 1/8&NPT

$337.99

$

Usually ships in 2-12 days

0

24

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

25

Generac 022145

WASHER FLAT 5/16 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

26

Generac 057796

GROMMET
(Superseded to G057796)

$21.99

$

Usually ships in 2-12 days

0

27

Generac 0F3216

PULLEY 80 O D DC ALTERNATOR (1800RPM)

$34.99

$

Usually ships in 2-12 days

0

Generac 0F3216B

PULLEY 117 O D DC ALTERNATOR (2650 RPM)

$34.99

$

Usually ships in 2-12 days

0

Generac 0F3216D

PULLEY 160 O D DC ALTERNATOR (3600 RPM)

Note: ORDER KIT P/N 0F3216DSRV

$54.99

$

Usually ships in 2-12 days

0

28

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

29

Generac 0F3287

BRKT DC ALTERNATOR UPPER

$48.99

$

Usually ships in 2-12 days

0

30

Generac 0F3017

BRKT D C ALTERNATOR LOWER

$14.99

$

Usually ships in 2-12 days

0

31

Generac 0H5475

HARN ENG G5.4L G3 H-PANEL CPL

Note: NOT SHOWN. THIS ENGINE HARNESS ONLY APPLIES TO THE FOLLOWING ENGINES: 0H5610 5.4L ENG (G3) 0H5610A 5.4L ENG (G3)

$2104.99

$

Usually ships in 2-12 days

0

32

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

33

Generac 0G5148

SCREW HHC M8-1.25 X 140 G8.8

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$5.99

$

Usually ships in 2-12 days

0

34

Generac 0F4308

BRACKET DC ALT STABILIZER

$31.99

$

Usually ships in 2-12 days

0

35

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$2.49

$

In Stock, Qty 5

0

36

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$0.99

$

In Stock, Qty 10

0

37

Generac 077996

CAP ANTIFREEZE 5/8"I D X 1.2"LG

$

$

Not available

38

Generac 052243

SCREW HHCM10-1.5X60 C8.8

$

$

Not available

39

0H5406A

REWORK HARMONIC BALANCER 5.4L

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW).

$

$

Not available

40

Generac 039253

SCREW HHC M8-1.25X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

41

Generac 064416

SCREW HHC M10-1.5 X 45 G8.8 FT

$

$

Not available

42

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

43

Generac 046526

WASHER LOCK M10

$

$

Not available

44

Generac 0D8027

SCREW WP PULLEY M8-1.25X 19

$4.99

$

Usually ships in 2-12 days

0

45

Generac 0D8025

BOLT HEX FLH DM8-1.25X28

$22.99

$

Usually ships in 2-12 days

0

46

Generac 0D8026

BOLT HEX FLH DM8-1.25X31

$42.99

$

Usually ships in 2-12 days

0

47

Generac 0D8030

TENSIONER ENG. AUTOMATIC BELT

$376.99

$

Usually ships in 2-12 days

0

48

Generac 0F2846

PULLEY WATER PUMP

$357.99

$

Usually ships in 2-12 days

0

49

Generac 0D8028

PULLEY GROOVE D ENGINE I DLER

$114.99

$

Usually ships in 2-12 days

0

50

Generac 0F2776A

BRACKET SIGNAL CON DITIONER

$3.99

$

Usually ships in 2-12 days

0

51

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available

52

Generac 045771

NUT HEX M8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

53

Generac 0E0992A

PLUG EXPANSION 14 O D

Note: NOT SHOWN, PART OF ENGINE MAKE P/N 0H5610 (80KW).

$3.49

$

Usually ships in 2-12 days

0

54

Generac 057823

CLAMP HOSE#10.56-1.06
(Superseded to G057823)

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$3.49

$

Usually ships in 2-12 days

0

55

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK

Note: NOT SHOWN, I/N 55 IS FOR HOLDING SENSOR TO I/N 50.

$0.99

$

Usually ships in 2-12 days

0

56

Generac 0F6151

CAP RUBBER

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$7.99

$

Usually ships in 2-12 days

0

57

Generac 0E0502

TEMPERATURE SEN DER, DELPHI

$53.99

$

Usually ships in 2-12 days

0

58

REWORK HARMONIC BALANCER 5.4L

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW).

$

$

Not available

59

Generac 057823

CLAMP HOSE#10.56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

60

Generac 035473

CLAMP HOSE#12.50-1.25

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$

$

Not available

61

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZIN
(Superseded to G045771)

Note: PART OF ENGINE MAKE P/N 0H5610 (80KW), PART OF ENGINE MAKE P/N 0H5610A.(55KW)

$1.99

$

In Stock, Qty 5

0
