QT08054JNANA - Generac 80kW Home Standby Generator (SN: 4869769 - 4869769) (2007) Cpl Alternationator Brshlss GB (0F3577) Parts Diagram

80kW Home Standby Generator

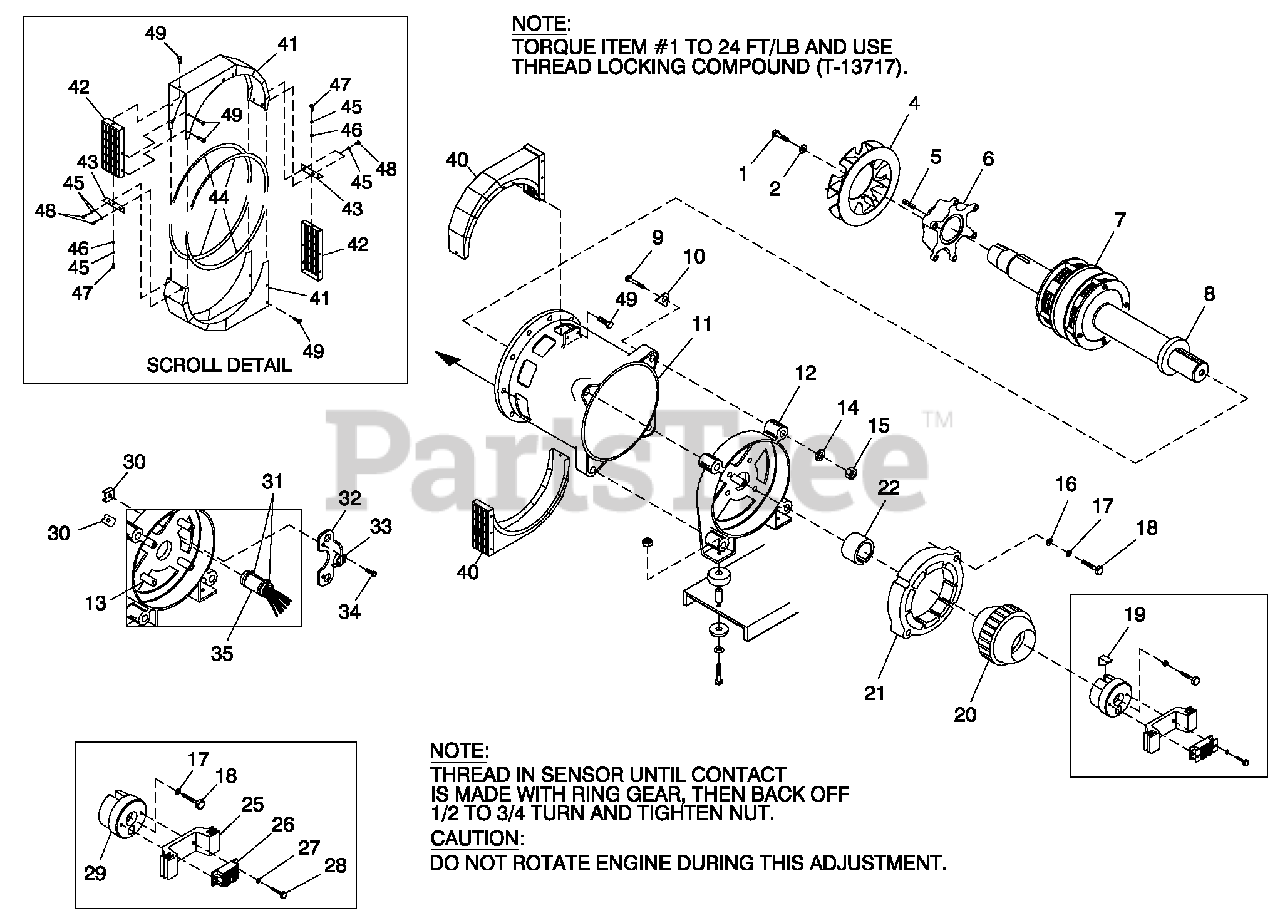

Cpl Alternationator Brshlss GB (0F3577) Parts Diagram

  • Title
1

Generac 055173

SCREW HHC M8-1.25 X 20 G10.9

$

$

Not available

2

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

4

Generac 0E2747A

FAN SAE ALTERNATOR (G/B)

Note: ORDER P/N 0G0724.

$

$

Not available

5

Generac 0A3870

KEY SQ 3/8X1-9/16 STEEL

$2.99

$

Usually ships in 2-12 days

0

6

Generac 0A3009

HU B DRIVE 390 SAE G B

$

$

Not available

7

Generac 0F5564D

RTR 390 100K B3 G B SAE TECHUM

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$6436.99

$

Usually ships in 2-12 days

0

Generac 0F5563D

RTR 390 130KB4 G B SAE TECHUM

$8498.99

$

Usually ships in 2-12 days

0

Generac 0A3881D

RTR390 80G BBRBRLSS

$

$

Not available

Generac 0A3881B

RTR390 80G B1PBRLSS

$

$

Not available

Generac 0A3882B

RTR 390 100G B1PBRLSS

$6458.99

$

Usually ships in 2-12 days

0

Generac 0A3883B

RTR 390 125G B1PBRLSS

$

$

Not available

8

Generac 052624

BEARING BALL 6212 SEALED

Note: ROTOR REPLACEMENT PART

$

$

Not available

9

Generac 0A5580

SCREW HHC M14-2.0 X 140 G8.8

$5.99

$

Usually ships in 2-12 days

0

10

Generac 0A1633

WASHER 390 SAE ALT.

$5.49

$

Usually ships in 2-12 days

0

11

0F7024J

STR-390-80LB3 SAE

$

$

Not available

Generac 0F7351

STR 390 130 G B4 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$11898.99

$

Usually ships in 2-12 days

0

Generac 0F7349

STR 390 80 AB3 CPL

$6458.99

$

Usually ships in 2-12 days

0

Generac 0F7348

STR 390 100 A B3 CPL

$8158.99

$

Usually ships in 2-12 days

0

Generac 0F7350

STR 390 130 A B4 CPL

$9178.99

$

Usually ships in 2-12 days

0

Generac 0F7024D

ASSY STR 390 80KB3 SAE

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$7818.99

$

Usually ships in 2-12 days

0

12

Generac 068113

CARRIER REAR BRG 15"

$

$

Not available

13

Generac 022392

PIN DOWEL 1/2 X 1-1/4

$

$

Not available

14

Generac 043123

WASHER LOCK M14

$

$

Not available

15

Generac 051779

NUTHEXM14-2.0 G8 YEL CHR

$

$

Not available

16

Generac 052259

WASHER FLAT M12

$

$

Not available

17

Generac 051769

WASHER LOCK M12

$

$

Not available

18

Generac 068406

SCREW HHC M12-1.75 X 60 G10.9

$

$

Not available

19

Generac 072878

KEY SQ 3/8 X 3-1/4 STEEL

$

$

Not available

20

Generac 087272

ASSY EXCITER 2.00" STK

$

$

Not available

21

Generac 068405C

EXITER FIELD 2" LG SPD CONN

$1294.99

$

Usually ships in 2-12 days

0

22

Generac 092950

COLLAR SLIP FIT 390 MM

$

$

Not available

25

Generac 090063

BRIDGE SUPPORT DIODE 15"

$

$

Not available

26

Generac 090152

ASSY BRIDGE RECTIFIER

$

$

Not available

27

Generac 023365

WASHER SHAKEPROOFINT #8

$

$

Not available

28

Generac 033143

SCREW HHM #8-32X7/8

$

$

Not available

29

Generac 090064

CAP END ROTOR 390MM

$

$

Not available

30

Generac 083485

PLATE NUT

$

$

Not available

31

Generac 031980

TIE WRAP UL 14.6 X.14 NATL

$

$

Not available

32

Generac 083401

BRACKET-STATORWIRE

$

$

Not available

33

Generac 042561

CLAMP HOSE #36 1.88-2.7
(Superseded to G042561)

$4.99

$

Usually ships in 2-12 days

0

34

Generac 033212

SCREW HHC 5/16-18 X 1-1/4 G5

$

$

Not available

35

Generac 083549

SLEEVE RU BBER

$

$

Not available

40

Generac 0A4089

ASSY SCROLL 390 SAE

Note: ORDER KIT 0A40890SRV

$

$

Not available

41

Generac 0A2491

SHROUD ALT SHEET METAL

$

$

Not available

42

Generac 0A2497

SCREEN SHROUD SAE

$

$

Not available

43

Generac 0A2496

BRKT TENSIONER SAE SCROLL

$

$

Not available

44

Generac 056326

TRIM VINYL BLACK 1/8 GP

$

$

Not available

45

022307

WASHER LOCK M6-1/4

$

$

Not available

46

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

47

Generac 045757

SCREW HHC M6-1.0X 25 G8.8
(Superseded to G045757)

$0.99

$

Usually ships in 2-12 days

0

48

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

49

Generac 0A2110

SCREW SWAGE 1/4-20 X 1/2 ZYC

$0.99

$

Usually ships in 2-12 days

0
