QT08054GVAX - Generac 80kW Home Standby Generator (SN: 9678049 - 9678049) (2015) EV Fuel Sys NG LPV 6.4L 80KW CPL (0L2311A) Parts Diagram

80kW Home Standby Generator

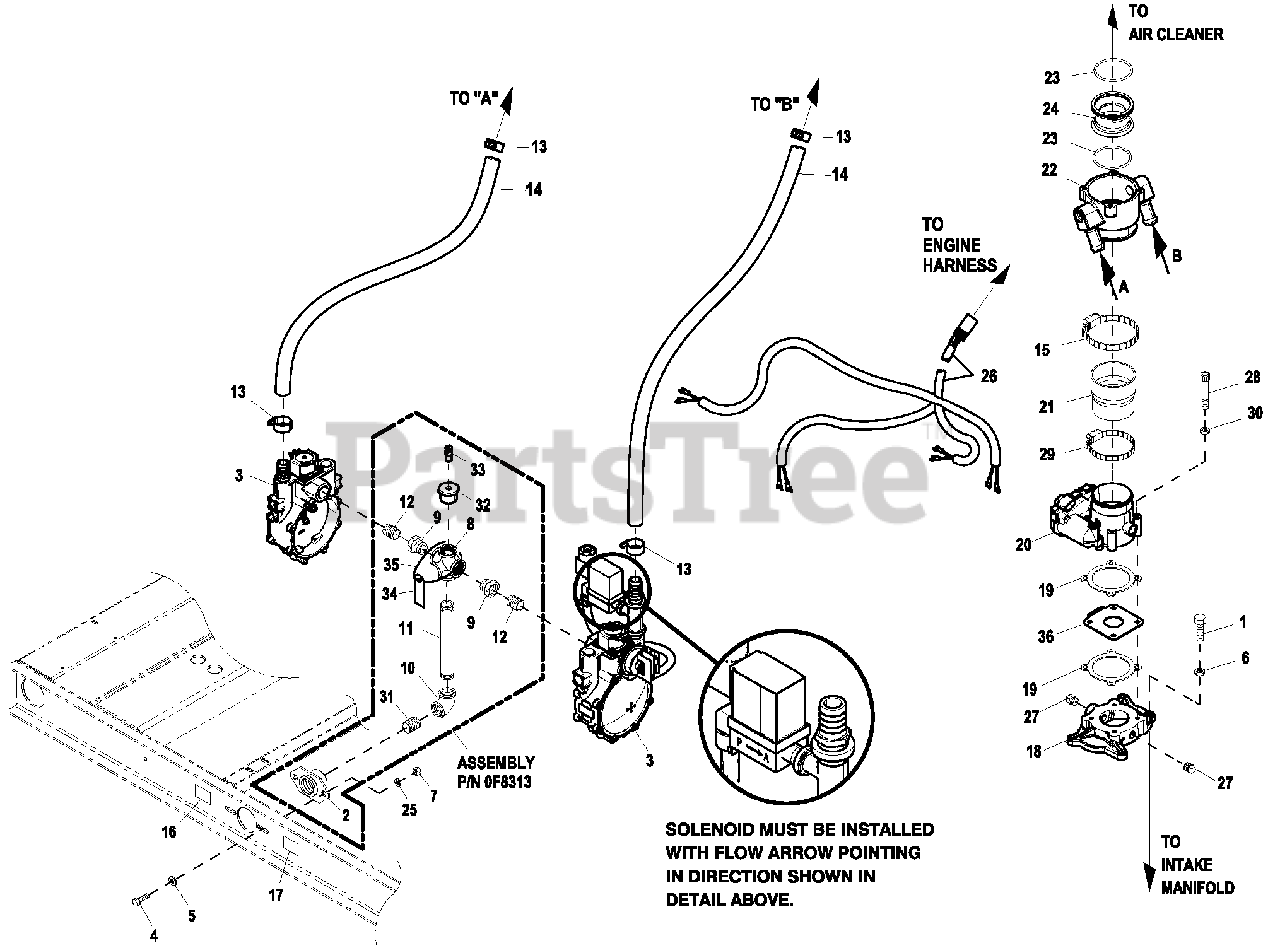

EV Fuel Sys NG LPV 6.4L 80KW CPL (0L2311A) Parts Diagram

  • Title

1

Generac 033212

SCREW HHC 5/16-18 X 1-1/4 G5

$

$

Not available

2

Generac 065908

SUPPORT NAT GAS SOLENOID

$

$

Not available

3

0L3413A

REG ASSY5.4L 80 KW LP CPL

$

$

Not available

4

Generac 052617

SCREW HHC M12-1.75 X 20 G8.8

$

$

Not available

5

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 045773

NUT HEX M12-1.75 G8 YELCHR

$

$

Not available

8

Generac 0K2771

PIPE CROSS 1-1/4" NPT

$28.99

$

Usually ships in 2-12 days

0

9

Generac 0A8064

BSHG RDCR HEX 1-1/4-3/4

$35.99

$

Usually ships in 2-12 days

0

10

Generac 030131

ELBOW 90D 1-1/4 NPT

$

$

Not available

11

Generac 031015

NIPPLE PIPE 1-1/4 NPT X 3

$

$

Not available

12

Generac 026915

NIPPLE CLOSE 3/4X1.375

$

$

Not available

13

Generac 057823

CLAMP HOSE #10.56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

14

Generac 059057

HOSE 3/4 ID SAE-30R2 (45" LG)

$

$

Not available

15

Generac 066212

CLAMP HOSE #52 2.81-3.75

$

$

Not available

16

Generac 0D1509

DECAL INLET PRESSURE

$8.49

$

Usually ships in 2-12 days

0

17

Generac 050280

DECAL FUEL INLET LPG

$

$

Not available

18

Generac 0F2756A

MACHINING, INTA KE ADAPTOR 60MM

$

$

Not available

19

Generac 0E4390

GASKET GOVERNOR ACTUATOR

$2.99

$

Usually ships in 2-12 days

0

20

Generac 0E4392

ACTUATOR BOSCH 60 GOVERNOR

$753.99

$

Usually ships in 2-12 days

0

21

Generac 0F0960

REDUCER 3.0" TO 2.75" TURBO

$141.99

$

Usually ships in 2-12 days

0

22

Generac 0F3885

MIXER 40/60MM ACTUATOR ASSY

$144.99

$

Usually ships in 2-12 days

0

23

Generac 0G3167

O-RING 2-3/4X3/32X2-15/16

$1.49

$

Usually ships in 2-12 days

0

24

Generac 0F3691C

VENTURI, THROTTLE 38MM

$5.49

$

Usually ships in 2-12 days

0

25

Generac 022195

WASHER LOCK 1/2

$

$

Not available

26

Generac 0H4537

HARN FUEL JUMPER DUAL REG

$393.99

$

Usually ships in 2-12 days

0

27

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

28

Generac 0D2157

SCREW SHC M6-1.0X50 C8.8

$1.49

$

Usually ships in 2-12 days

0

29

Generac 039294

CLAMP HOSE #442.31-3.25

$

$

Not available

30

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

31

Generac 039130

NIPPLE CLOSE 1.25 NPT X 1.625

$

$

Not available

32

Generac 0E7162

BSHG RDCR HEX 1-1/4 X 1/4FNPT

$26.99

$

Usually ships in 2-12 days

0

33

Generac 0K2340

PLUG, PRESSURE GAUGE, 1/4" NPT

$106.99

$

Usually ships in 2-12 days

0

34

Generac 0K3795

HANG TAG FUEL PRESS TEST POINT

$8.49

$

Usually ships in 2-12 days

0

35

Generac 0H3632

TIE WRAP UL 5.6 X.10BLAC K

$0.99

$

Usually ships in 2-12 days

0

36

Generac 0H3766B

RESTRICTOR INTA KE 4.6L G3 LPV

$18.99

$

Usually ships in 2-12 days

0
