QT08046GVAN - Generac 80kW Home Standby Generator (SN: 4986520 - 4986520) (2008) KIT Class Pack (0F6332A) Parts Diagram

80kW Home Standby Generator

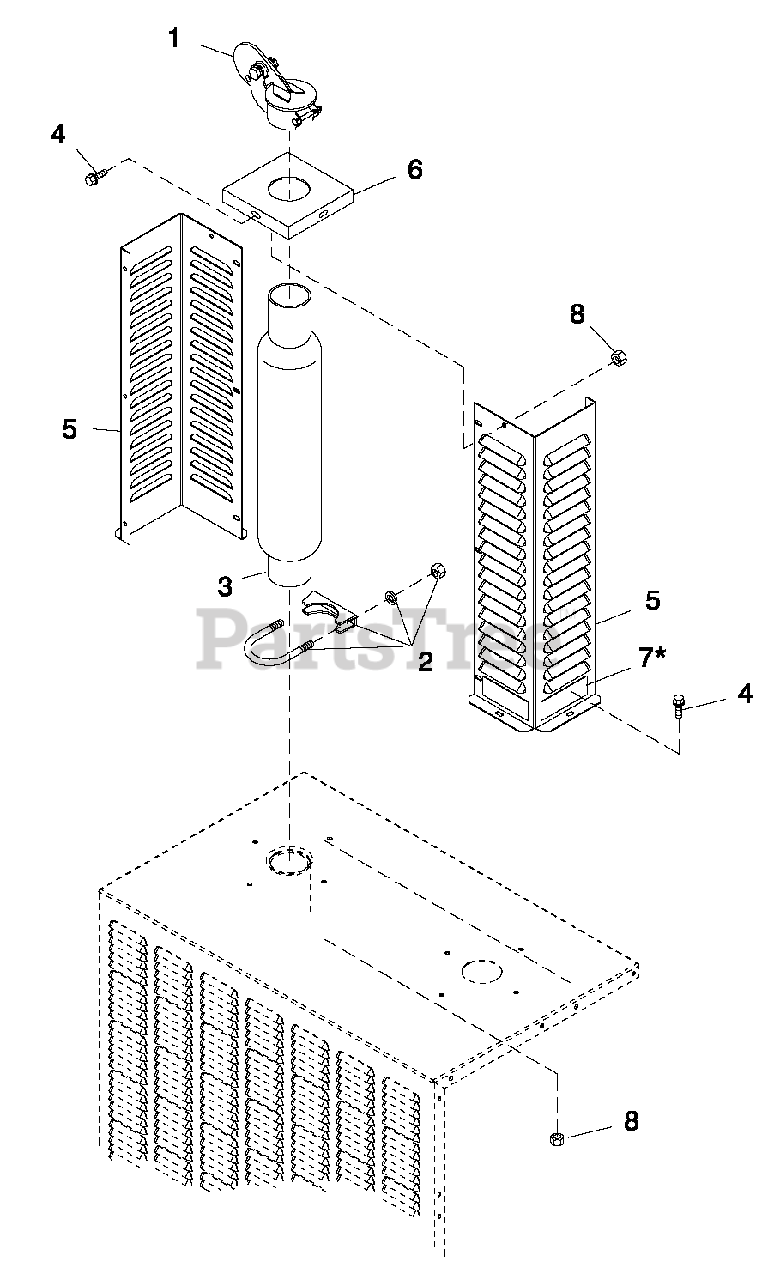

KIT Class Pack (0F6332A) Parts Diagram

  • Title

1

Generac 0F4462

RAIN CAP 2-1/2" AL

$72.99

$

Usually ships in 2-12 days

0

2

Generac 080762

BOLT U 3/8-16 X 2.62

$

$

Not available

3

Generac 0F4505

MFLR SEC 23.5"LG 2.5"IN/OUT

$244.99

$

Usually ships in 2-12 days

0

4

Generac 0C2454

SCREW THF M6-1X16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

5

Generac 0F4367

HEAT SHIELD EXHAUST STACK

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT.

$170.99

$

Usually ships in 2-12 days

0

6

Generac 0F4368

CAP HEAT SHIELD EXHAUST STACK

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORMAT.

$76.99

$

Usually ships in 2-12 days

0

7

Generac 0G3263

DECAL WARNING HOT SURFACES BI

Note: DECALS APPLIED TO EXHAUST AT THE FACTORY.

$1.49

$

Usually ships in 2-12 days

0

8

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALUMINUM ENCLOSURE NOTE: ITEM NUMBER 5 TO BE SECURED USING ITEM NUMBERS 4 (THREAD FORMING FASTENER) & 8 (LOCK NUT). THE LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENCLOSURE PANELS.

$1.49

$

Usually ships in 2-12 days

0
