QT08046GNSN - Generac 80kW Home Standby Generator (SN: 4435304 - 4814125) (2007) Engine Common Parts R/H Side 4.6L G3 (0G1275A) Parts Diagram

80kW Home Standby Generator

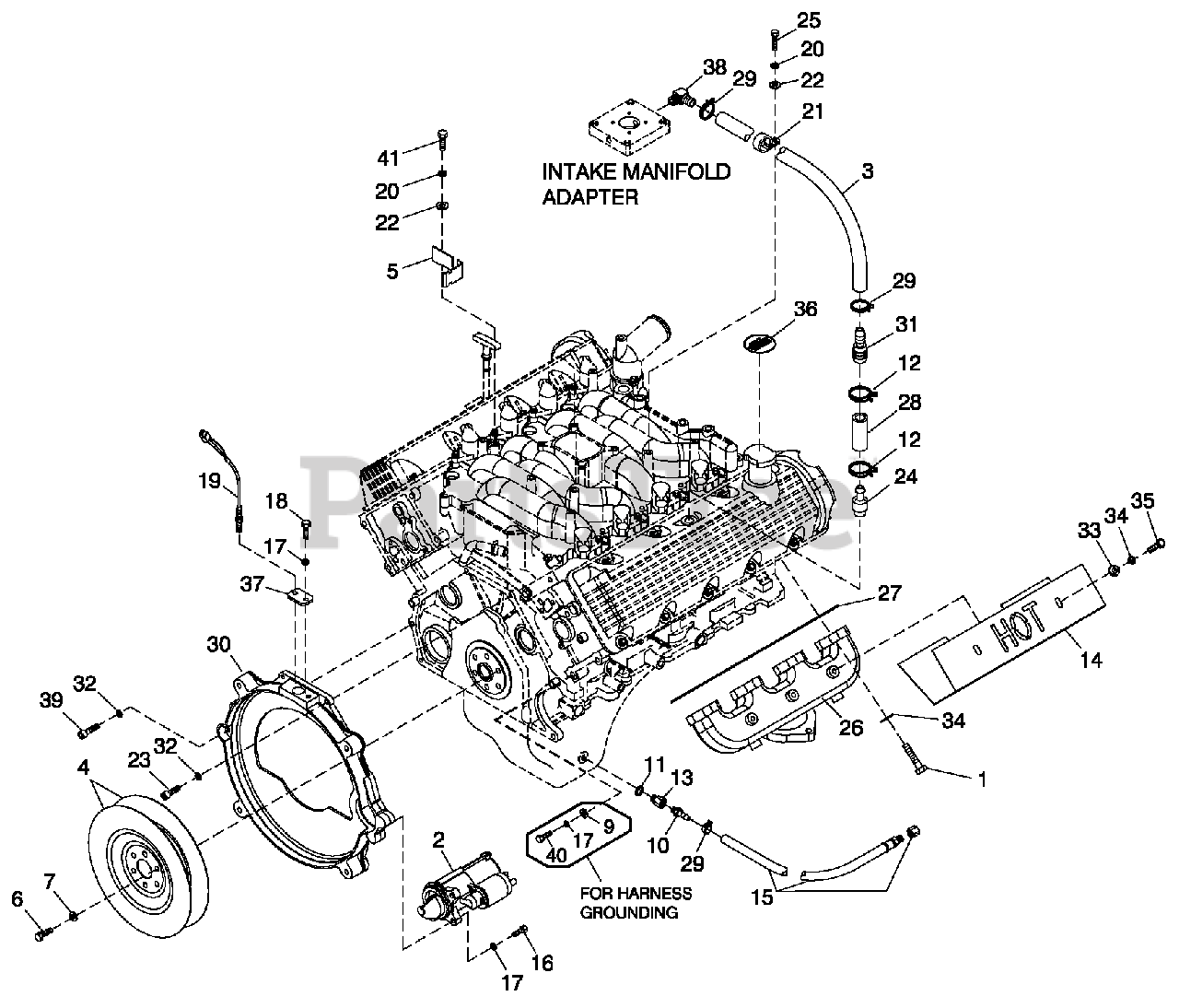

Engine Common Parts R/H Side 4.6L G3 (0G1275A) Parts Diagram

  • Title

1

Generac 0D9913

SCREW SHC M8-1.25 X 35 SS

$7.99

$

Usually ships in 2-12 days

0

2

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

3

Generac 47290

HOSE 3/8 ID SINGLE BRAID (12"LG)

$

$

Not available

4

Generac 0F9965D

FLEX PLATE 2 POLE 4.6L G3

$50.99

$

Usually ships in 2-12 days

0

5

Generac 0F2776A

BRACKET, SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

6

Generac 0D5417

SCREW HHC M10-1.0 X 25 G10.9

$3.49

$

Usually ships in 2-12 days

0

7

Generac 0F3844

WASHER FLAT .43 X 1.00

$4.99

$

Usually ships in 2-12 days

0

8

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK (NOT SHOWN)

Note: I/N 8 IS FOR HOLDING SENSOR TO I/N 5.

$0.99

$

Usually ships in 2-12 days

0

9

Generac 22145

WASHER FLAT 5/16-M8 ZINC

$

$

Not available

10

Generac 55596

BARBED STR 3/8 NPT X 3/8

$

$

Not available

11

Generac 57772

WASHER NYLON .565

$

$

Not available

12

Generac 048031P

CLAMP HOSE BAND .88"

$1.99

$

Usually ships in 2-12 days

0

13

Generac 57765

ADAPTER M14-1.50 X 3/8 NPT

$

$

Not available

14

Generac 0F3534

HEAT SHLD EXHAUST MANIFOLD

$100.99

$

Usually ships in 2-12 days

0

15

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

16

Generac 42909

SCREW HHC M8-1.25 X 30 G8.8

$

$

Not available

17

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

18

Generac 39253

SCREW HHC M8-1.25 X 20 G8.8

$

$

Not available

19

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0

20

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

21

Generac 055934M

CLAMP VINYL .75 X .343 Z

$3.49

$

Usually ships in 2-12 days

0

22

Generac 22473

WASHER FLAT 1/4 ZINC

$

$

Not available

23

Generac 57192

SCREW SHC M10-1.5 X 30 G12.9

$

$

Not available

24

Generac 0G1818

VALVE PCV 4.6L G3

Note: THIS PVC APPLIES TO THE FOLLOWING ENGINE: 0G1274 4.6L ENG(RWD) G3

$185.99

$

Usually ships in 2-12 days

0

25

Generac 47411

SCREW HHC M6-1.0 X 16 G8.8

$

$

Not available

26

Generac 0F1820

MACHINED MANIFOLD,EXHAUST

$174.99

$

In Stock, only 2 left!

0

27

Generac 0F5755

GASKET, EXHAUST MANIFOLD

$29.99

$

In Stock, only 2 left!

0

28

Generac 0G0321

HOSE COOL 5/8"ID 250#WP (2"LG)

$26.99

$

Usually ships in 2-12 days

0

29

Generac 048031J

HOSE CLAMP BAND 5/8"

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

30

Generac 0F2929

ENGINE ADAPTER

$518.99

$

Usually ships in 2-12 days

0

31

Generac 0G1462

HOSE BARB REDUCER 5/8"-3/8"ID

$3.49

$

Usually ships in 2-12 days

0

32

Generac 46526

WASHER LOCK M10

$

$

Not available

33

Generac 70008

WASHER FLAT M8 SS

$

$

Not available

34

Generac 70006

WASHER LOCK M8 SSTL

$

$

Not available

35

Generac 0D2608

SCREW HHC 5/16-18 X 1/2 SSTL

$2.99

$

Usually ships in 2-12 days

0

36

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$0.99

$

Usually ships in 2-12 days

0

37

Generac 0F5454

PLATE MAG PICK-UP ADAPTOR

$63.99

$

Usually ships in 2-12 days

0

38

Generac 49340

BARBED EL 90 1/4NPT X 3/8

$

$

Not available

39

Generac 71623

SCREW SHC M10-1.5 X 55 G12.9

$

$

Not available

40

Generac 43107

SCREW HHC M8-1.25 X 25 G8.8

$

$

Not available

41

Generac 42568

SCREW HHC M6-1.0 X 20 G8.8

$

$

Not available
