QT08046GNSN - Generac 80kW Home Standby Generator (SN: 4435304 - 4814125) (2007) Enclosure C5 (0F3596) Parts Diagram

80kW Home Standby Generator

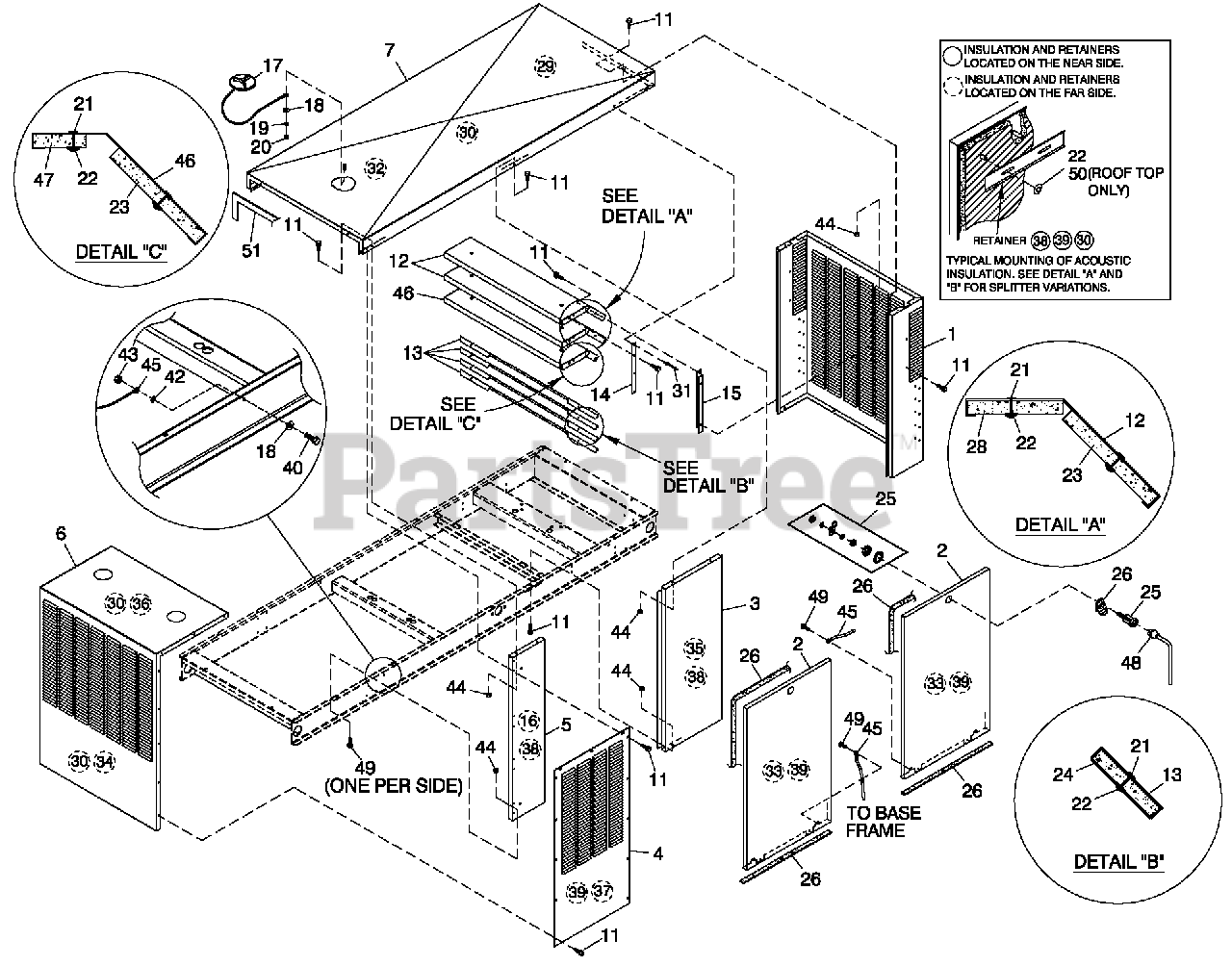

Enclosure C5 (0F3596) Parts Diagram

  • Title

1

Generac 0F58730ST01

REAR WRAP C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT.

$761.99

$

Usually ships in 2-12 days

0

2

Generac 0F58680ST01

DOOR C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT.

$402.99

$

Usually ships in 2-12 days

0

3

Generac 0F58720ST01

CENTER SUPPORT C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT.

$331.99

$

Usually ships in 2-12 days

0

4

Generac 0F58710AL01

DISCHARGE DUCT LH & RH SIDE C5

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORAT.. MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$571.99

$

Usually ships in 2-12 days

0

5

Generac 0F58690ST01

FRONT CORNERS C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT.

$193.99

$

Usually ships in 2-12 days

0

6

Generac 0F58700ST01

DISCHARGE CENTER DUCT C5

Note: PART NUMBER SHOWN IS FOR TAN / STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALUMINUM PART NUMBER FORMAT.

$1000.99

$

Usually ships in 2-12 days

0

7

Generac 0F58670AL01

ROOF C5 ALUM

Note: PART NUMBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NUMBER FORAT.

$2143.99

$

Usually ships in 2-12 days

0

11

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

12

Generac 0F2766

SPLITTER

$197.99

$

Usually ships in 2-12 days

0

13

Generac 0F3181

SPLITTER SHORT

$102.99

$

Usually ships in 2-12 days

0

14

Generac 0F3185

STRINGER SPLITTER C3

$40.99

$

Usually ships in 2-12 days

0

15

Generac 0F3416

SUPPORT SPLITTER C5 130KW

$178.99

$

Usually ships in 2-12 days

0

16

Generac 0F3949

INSULATION CORNER POST

$344.99

$

Usually ships in 2-12 days

0

17

Generac 0C2634A

ASSEMBLY COVER ACCESS
(Superseded to 0C2634ASRV)

Note: USE 0C2634ASRV

$18.99

$

Usually ships in 2-12 days

0

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$0.99

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DOME #4-40

$

$

Not available

23

Generac 0F3949B

INSULATION SPLITTER

$52.99

$

Usually ships in 2-12 days

0

24

Generac 0F3949A

INSULATION SHORT LOUVER

$51.99

$

Usually ships in 2-12 days

0

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

Usually ships in 2-12 days

0

26

Generac 0E5968

GASKET EXTRUDED TRIM (566" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$3.99

$

Usually ships in 2-12 days

0

27

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

Usually ships in 2-12 days

0

28

Generac 0F3949L

INSULATION SPLITTER SML

$34.99

$

Usually ships in 2-12 days

0

29

Generac 0F3949E

INSULATION ROOF TOP REAR

$224.99

$

Usually ships in 2-12 days

0

30

Generac 0F3890A

RETAINER INSULATION (740)

$15.99

$

Usually ships in 2-12 days

0

31

Generac 087233

RIVET POP .1875 X .450 SS

$

$

Not available

32

Generac 0F3949C

INSULATION ROOF TOP

$230.99

$

Usually ships in 2-12 days

0

33

Generac 0F3949D

INSULATION DOOR

$176.99

$

Usually ships in 2-12 days

0

34

Generac 0F3949G

INSULATION DISCHARGE DUCT

$80.99

$

Usually ships in 2-12 days

0

35

Generac 0F3949J

INSULATION CENTER SUPPORT

$109.99

$

Usually ships in 2-12 days

0

36

Generac 0F3949K

INSULATION DISCHARGE DUCT TOP

$149.99

$

Usually ships in 2-12 days

0

37

Generac 0F3949F

INSULATION INNER DUCT SIDE

$46.99

$

Usually ships in 2-12 days

0

38

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0

39

Generac 0F3890

RETAINER INSULATION (450)

$10.99

$

Usually ships in 2-12 days

0

40

Generac 042568

SCREW HHC M6-1.0 X 20 G8.8

$

$

Not available

42

Generac 022447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

43

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

44

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURED USING ITEM 11 & 49 THREAD FORMING FASTENER AND ITEM 44 LOCK NUT. LOCK NUT IS TO BE INSTALLED AFTER THREAD FORMING FASTENER HAS PENETRATED THROUGH EXTRUSIONS IN ENC

$1.49

$

Usually ships in 2-12 days

0

45

Generac 912970094

ASSY WIRE 14 AWG 34.8" GRN/YEL

$

$

Not available

46

Generac 0F2766A

SPLITTER C5

$209.99

$

Usually ships in 2-12 days

0

47

Generac 0F3949M

INSULATION SPLITTER SHRT MPS

$

$

Not available

48

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$11.99

$

In Stock, only 1 left!

0

49

Generac 0E3257

SCREW TH-FRM M6 W/CAP SHKPRF W

$5.49

$

Usually ships in 2-12 days

0

50

Generac 078115A

WASHER SELF LOCKING DOME #8-32

$2.49

$

Usually ships in 2-12 days

0

51

Generac 066760

STRIP SEALANT 1/8 X 1 (44.52"LG)
(Superseded to G066760)

$1.99

$
