QT06030JVSN - Generac 60kW Home Standby Generator (SN: 4990649 - 5011004) (2008) Engine Common Parts 3.0l G3 Ls (0G7855) Parts Diagram

60kW Home Standby Generator

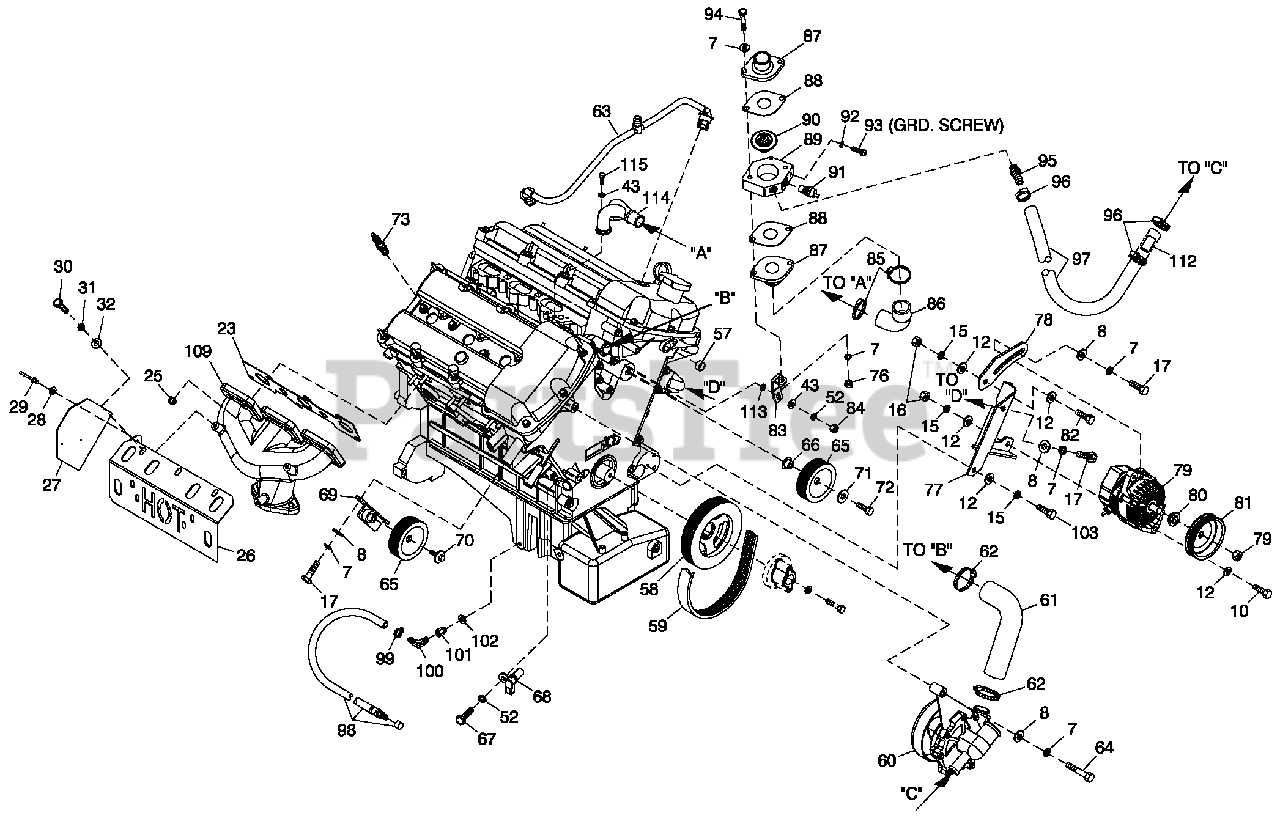

Engine Common Parts 3.0l G3 Ls (0G7855) Parts Diagram

  • Title

1

Generac 0G7859

ENGINE 3.0L G3 LS (RWD) MAKE

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 0F8425

ADAPTER ENGINE

$4342.99

$

Usually ships in 2-12 days

0

3

Generac 0F9965C

FLEX PLATE 2 POLE

$58.99

$

Usually ships in 2-12 days

0

4

Generac 0F8931

SPACER FLEX PLATE

$

$

Not available

5

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

6

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

7

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

8

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

9

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

10

Generac 064416

SCREW HHC M10-1.5 X 45 G8.8 FT

$

$

Not available

11

Generac 052243

SCREW HHC M10-1.5X60G8.8

$

$

Not available

12

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

13

Generac 0D5417

SCREW HHC M10-1.0X25G10.9

$3.49

$

Usually ships in 2-12 days

0

14

Generac 0F3844

WASHER FLAT .45X1.00

$4.99

$

Usually ships in 2-12 days

0

15

Generac 046526

WASHER LOCK M10

$

$

Not available

16

Generac 045772

NUT HEX M10-1.5 G8YEL CHR

$

$

Not available

17

Generac 043107

SCREW HHC M8-1.25X 25 G8.8

$

$

Not available

18

Generac 0G3638

ADAPTER OIL FILTER 3.0L

$35.99

$

Usually ships in 2-12 days

0

19

Generac 0D5419

OIL FILTER

Note: INCLUDED IN KITS: 0D345400PM

$49.99

$

Usually ships in 2-12 days

0

20

Generac 055476

BSHG RDCR HEX 3/8 TO 1/8 GALV

$

$

Not available

21

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

22

Generac 0G3775

DIP STICK OIL 3.0L

$

$

Currently unavailable

23

Generac 0G0100

GASKET EXHAUST

$97.99

$

Usually ships in 2-12 days

0

24

Generac 0F8795A

MANIFOLD EXHAUST LH

Note: OBSOLETE

$

$

Not available

25

Generac 067989

NUT HEX FLWHIZ M8-1.25
(Superseded to G067989)

$2.49

$

In Stock, only 4 left!

0

26

Generac 0E7202AAS0R

HEAT SHIELD EXHAUST 3.0L

$45.99

$

Usually ships in 2-12 days

0

27

Generac 0F5966A

REFLECTIVE HEAT SHIELD 3.0L

$148.99

$

Usually ships in 2-12 days

0

28

Generac 022985

WASHER FLAT #6 ZINC
(Superseded to G022985)

$0.99

$

Usually ships in 2-12 days

0

29

Generac 033472

RIVET POP.125X.400 AL

$

$

Not available

30

Generac 085296

SCREW HHC 1/4-20 X 1/2 SS

$

$

Not available

31

Generac 083896

WASHER LOCK 1/4-M6SS
(Superseded to G083896)

$7.99

$

Usually ships in 2-12 days

0

32

Generac 084929

WASHER FLAT 1/4 SS

$

$

Not available

33

Generac 0F97650202

OIL FILLER CAP 3.0L

$

$

Currently unavailable

34

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$0.99

$

Usually ships in 2-12 days

0

35

0G33090ST03

BRACKET COIL

$

$

Not available

36

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

37

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

38

Generac 055440

SCREW HHC M5-0.8X 25 G8.8

$

$

Not available

39

Generac 0G4262

MANIFOLD INTAKE LOWER REWORK

$

$

Currently unavailable

40

Generac 0E0992A

PLUG EXPANSION 14 OD

$3.49

$

Usually ships in 2-12 days

0

41

Generac 0F9223

GASKET INTAKE MANIFOLD LWR G3

Note: ORDER 0F8286F239

$

$

Not available

42

Generac 083601

SCREW HHC M6-1.0X 80 C8.8

$

$

Not available

43

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

44

Generac 0C7125

SCREW HHC M6-1.0X120C8.8

$4.99

$

Usually ships in 2-12 days

0

47

Generac 0F9222

MANIFOLD INTAKE UPPER

Note: MUST ORDER 6 OF PART NUMBER 0E0992A EXPANSION PLUG.

$

$

Not available

48

Generac 0G0607

ASSEMBLY HOSE PCV VALVE

$124.99

$

Usually ships in 2-12 days

0

49

Generac 0F9564

GASKET INTAKE ADAPTER

$22.99

$

Usually ships in 2-12 days

0

50

Generac 0F9563

GASKET IDLE AIR CONTRL ACT CVR

$32.99

$

Usually ships in 2-12 days

0

51

Generac 0E6585

COVER IAC ACTUATOR

$19.99

$

Usually ships in 2-12 days

0

52

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

53

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

54

Generac 0F7695

EGR GASKET

$1.49

$

Usually ships in 2-12 days

0

55

Generac 0F6658

COVEREGR

$

$

Not available

56

Generac 039253

SCREW HHC M8-1.25X20G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

57

Generac 0D3973

PLUG, EXPANSION 16MM

$0.99

$

Usually ships in 2-12 days

0

58

Generac 0G3720A

REWORK HARMONIC BAL 3.0L RWD

$68.99

$

Usually ships in 2-12 days

0

59

Generac 0D3488E

BELT SERPENTINE 71.04"

$141.99

$

Usually ships in 2-12 days

0

60

Generac 0G3643

WATER PUMP 3.0L

$

$

Not available

61

Generac 0G3791A

HOSE WATER PUMP 3.0L

$63.99

$

Usually ships in 2-12 days

0

62

Generac 099502

CLAMP HOSE #24 B1.06-2.00

$

$

Not available

63

0G7856A

REWORK BREATHER TUBE 3.0L G3 LS

$

$

Not available

64

Generac 052265

SCREW HHC M8-1.25X65G8.8

$

$

Not available

65

Generac 0D8028

PULLEY GROOVED ENGINE IDLER

$114.99

$

Usually ships in 2-12 days

0

66

Generac 0G3842

SPACER IDLER PULLEY 3.0L

$

$

Currently unavailable

67

Generac 042568

SCREW HHC M6-1.0X20G8.8

$

$

Not available

68

Generac 0G3644

SENSOR CRANKSHAFT SPEED 3.0L

$461.99

$

Usually ships in 2-12 days

0

69

Generac 0G38040ST03

WELDMENT IDLER BRACKET 3.0L

$187.99

$

Usually ships in 2-12 days

0

70

Generac 0D8025

BOLT HEX FL HD M8-1.25X 28

$22.99

$

Usually ships in 2-12 days

0

71

Generac 0G3896

SPACER .34 X 1.00 X.11 STL/ZC

$

$

Currently unavailable

72

Generac 039414

SCREW HHC M8-1.25X35G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

73

Generac 0D34540186

SPARK PLUG (PLATINUM) .044 GAP

Note: THIS PLUG CAN ONLY BE USED WITH THE FOLLOWING ENGINES: 0D3454 6.8L ENG (G3) 0D3454A 6.8L ENG (G3) 0H0923 6.8L ENG (G3)

$17.99

$

Usually ships in 2-12 days

0

74

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

75

Generac 0G3909

HARN ENG 3.0LG14 R-200 2P (NOT SHOWN)

$2936.99

$

Usually ships in 2-12 days

0

76

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

77

Generac 0G35770ST03

BRACKET DC ALTERNATOR LOWER

$235.99

$

Usually ships in 2-12 days

0

78

Generac 0G38210ST03

BRACKET TENSIONER

$10.99

$

Usually ships in 2-12 days

0

79

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

80

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

81

Generac 0F3216C

PULLEY 132 OD DC ALTERNATOR

$46.99

$

Usually ships in 2-12 days

0

82

Generac 049814

SCREW HHC M10-1.5X25G8.8
(Superseded to G049814)

$7.99

$

Usually ships in 2-12 days

0

83

0G34700ST03

BRACKET THERMOSTAT 3.0L

$

$

Not available

84

Generac 049813

NUT HEX M 6X1.0G8YELCHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

85

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

86

Generac 0F9232

HOSE UPPR RAD REAR

$25.99

$

Usually ships in 2-12 days

0

87

Generac 0A2711A

ADAPTER THERMOSTAT

$636.99

$

Usually ships in 2-12 days

0

88

Generac 048665

GASKET THERMOSTAT

$

$

Not available

89

Generac 0F9252

MACHINING,THERMOSTAT ADPTR

Note: WHEN INVENTORY IS CONSUMED THIS PART IS NO LONGER AVAILABLE

$

$

Not available

90

Generac 075885

THERMOSTAT 195 DEG
(Superseded to G075885)

$48.99

$

Usually ships in 2-12 days

0

91

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

92

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

93

Generac 074908

SCREW HHTT M5-0.8X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

94

Generac 052207

SCREW HHC M8-1.25X80G8.8

$

$

Not available

95

Generac 047527

BARBED STR1/2NPTX 3/4

$

$

Not available

96

Generac 057823

CLAMP HOSE #10 .56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

97

Generac 050968

HOSE COOL 3/4 ID 20R3 (22" LG)

$

$

Not available

98

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

99

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

100

Generac 043790

BARBED EL 90 3/8 NPT X 3/8

$

$

Not available

101

Generac 077456

ADAPTER M12-1.75X 3/8 NPT

$

$

Not available

102

Generac 052677

WASHER NYLON .50 X .87 X .06

$

$

Not available

103

Generac 049541

SCREW HHC M10-1.5X35G8.8

$

$

Not available

104

0G3781

RETAINER SPARK PLUG WIRE

$

$

Not available

105

Generac 0G4431

RESTRICTORPCV

$

$

Not available

106

Generac 0G3245

SPARK PLUG WIRE SET

Note: OBSOLETE AFTER STOCKOUT

$

$

Not available

107

Generac 0F9228

COIL IGNITION

$675.99

$

Usually ships in 2-12 days

0

108

Generac 031919

PLUG STD PIPE 3/8 COUNTERSUNK

$

$

Not available

109

Generac 0F8795

MANIFOLD EXHAUST RH

Note: OBSOLETE

$

$

Not available

110

Generac 051751

SCREW HHC M6-1.0 X 50 G8.8 (INCL. WITH I/N 47)

$

$

Not available

111

Generac 0F9224

GASKET INTAKE MANIFOLD UP G3

$14.99

$

Usually ships in 2-12 days

0

112

Generac 0G5971

RESTRICTOR COOLANT BYPASS

$977.99

$

Usually ships in 2-12 days

0

113

Generac 026850

WASHER SHAKEPROOF EXT 1/4 STL

$

$

Not available

114

0G8084

COOLANT X-OVER CASTING

$

$

Not available

115

Generac 038750

SCREW HHC M6-1.0X30C8.8

$

$

Not available
