QT06030JVAN - Generac 60kW Home Standby Generator (SN: 4970761 - 4970762) (2008) Enclosure C4 (0F2750) Parts Diagram

60kW Home Standby Generator

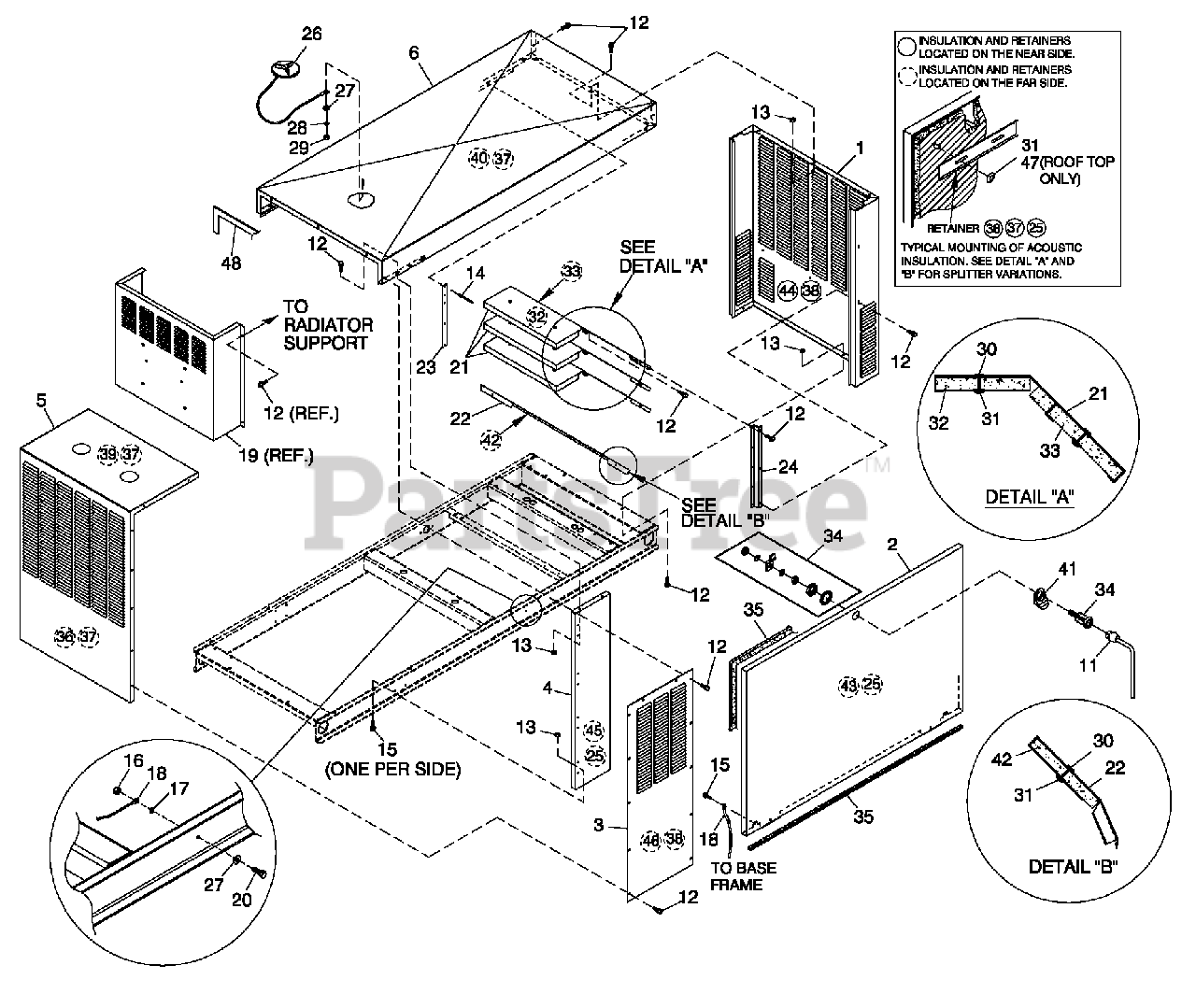

Enclosure C4 (0F2750) Parts Diagram

  • Title

1

Generac 0F5859

REAR WRAP C4

Note: PART NU MBER SHOWN IS FOR TAN /STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALU MINU M PART NU MBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALU MINU M, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALU MINU M, 0FXXXX0ST05 = WHITE / STEEL, 0FXXXX0AL05 = WHITE / ALU MINU M, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALU MINU M, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALU MINU M

$479.99

$

Usually ships in 2-12 days

0

2

Generac 0F5855

DOOR C4

Note: PART NU MBER SHOWN IS FOR TAN /STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALU MINU M PART NU MBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALU MINU M, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALU MINU M, 0FXXXX0ST05 = WHITE / STEEL, 0FXXXX0AL05 = WHITE / ALU MINU M, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALU MINU M, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALU MINU M. OBSOLETE

$

$

Not available

3

Generac 0F5858

DISCHARGE DUCT LH & RH SIDE C4

Note: PART NU MBER SHOWN IS FOR TAN /STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALU MINU M PART NU MBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALU MINU M, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALU MINU M, 0FXXXX0ST05 = WHITE / STEEL, 0FXXXX0AL05 = WHITE / ALU MINU M, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALU MINU M, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALU MINU M

$

$

Not available

4

Generac 0F5856

FRONT CORNERS C4

Note: PART NU MBER SHOWN IS FOR TAN /STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALU MINU M PART NU MBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALU MINU M, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALU MINU M, 0FXXXX0ST05 = WHITE / STEEL, 0FXXXX0AL05 = WHITE / ALU MINU M, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALU MINU M, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALU MINU M

$143.99

$

Usually ships in 2-12 days

0

5

Generac 0F5857

DISCHARGE CENTER DUCT C4

Note: PART NU MBER SHOWN IS FOR TAN /STEEL. REFER TO THE SAMPLE GUIDE BELOW FOR AVAILABLE COLOR AND/OR ALU MINU M PART NU MBER FORMAT. 0FXXXX0ST01 = TAN / STEEL, 0FXXXX0AL01 = TAN / ALU MINU M, 0FXXXX0ST08 = T- GRAY / STEEL, 0FXXXX0AL08 = T- GRAY / ALU MINU M, 0FXXXX0ST05 = WHITE / STEEL, 0FXXXX0AL05 = WHITE / ALU MINU M, 0FXXXX0ST13 = BISQUE / STEEL, 0FXXXXALT13 = BISQUE / ALU MINU M, 0FXXXX0ST14 = GRAY / STEEL, 0FXXXXALT14 = GRAY / ALU MINU M

$726.99

$

Usually ships in 2-12 days

0

6

Generac 0F5854

ROOF C4ALU M

Note: PART NU MBER SHOWN IS FOR TAN. SEE GUIDE BELOW FOR AVAILABLE COLOR AND PART NU MBER FORMAT., 0FXXXX0AL08 = T- GRAY / ALU MINU M, 0FXXXX0AL05 = WHITE / ALU MINU M, 0FXXXXALT13 = BISQUE / ALU MINU M, 0FXXXXALT14 = GRAY / ALU MINU M

$

$

Not available

11

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$11.99

$

In Stock, only 1 left!

0

12

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

13

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

$1.49

$

Usually ships in 2-12 days

0

14

Generac 087233

RIVET POP .1875 X .450 SS

$

$

Not available

15

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

16

Generac 049813

NUT HEXM6X1.0G8YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

17

Generac 022447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

18

Generac 0912970094

ASSY WIRE 14AWG 34.8" GRN/YEL

$

$

Not available

19

0F2835

INNER DISCHARGE DUCT, C4

$

$

Not available

20

Generac 042568

SCREW HHC M6-1.0X20G8.8

$

$

Not available

21

Generac 0F2786

SPLITTER C4

$220.99

$

Usually ships in 2-12 days

0

22

Generac 0F2785

SPLITTER LOWER C4

$183.99

$

Usually ships in 2-12 days

0

23

Generac 0F3185

STRINGER SPLITTER C3

$40.99

$

Usually ships in 2-12 days

0

24

Generac 0F2787

SUPPORT SLITTER C4

$59.99

$

Usually ships in 2-12 days

0

25

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0

26

Generac 0C2634A

ASSE MBLY COVER ACCESS
(Superseded to 0C2634ASRV)

Note: USE 0C2634ASRV

$18.99

$

Usually ships in 2-12 days

0

27

Generac 022473

WASHER FLAT 1/4- M6ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

28

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

29

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

30

Generac 0F3072

INSULATION RETAIN MENT HANGER

$0.99

$

Usually ships in 2-12 days

0

31

Generac 078115

WASHER SELF LOCKING DO ME #4-40

$

$

Not available

32

Generac 0F3760K

INSULATION SPLITTER

$24.99

$

Usually ships in 2-12 days

0

33

Generac 0F3760E

INSULATION LOWER SPLITTER

$256.99

$

Usually ships in 2-12 days

0

34

Generac 0F5048D

VISE-ACTION LATCH SLOTTED CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

Usually ships in 2-12 days

0

35

Generac 0E5968

GASKET EXTRUDED TRI M (374.64" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$3.99

$

Usually ships in 2-12 days

0

36

Generac 0F3760J

INSULATION DISCHARGE FRONT

$453.99

$

Usually ships in 2-12 days

0

37

Generac 0F3890A

RETAINER INSULATION (740)

$15.99

$

Usually ships in 2-12 days

0

38

Generac 0F3890

RETAINER INSULATION (450)

$10.99

$

Usually ships in 2-12 days

0

39

Generac 0F3760H

INSULATION DISCHARGE TOP

$141.99

$

Usually ships in 2-12 days

0

40

Generac 0F3760F

INSULATION ROOFTOP

$1350.99

$

Usually ships in 2-12 days

0

41

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

Usually ships in 2-12 days

0

42

Generac 0F3760L

INSULATION LOWER SPLITTER

$51.99

$

Usually ships in 2-12 days

0

43

Generac 0F3760C

INSULATION DOOR

$639.99

$

Usually ships in 2-12 days

0

44

Generac 0F3760A

INSULATION REAR WRAP

$33.99

$

Usually ships in 2-12 days

0

45

Generac 0F3760

INSULATION CORNER POST

$36.99

$

Usually ships in 2-12 days

0

46

Generac 0F3760D

INSULATION DISCHARGE SIDE

$45.99

$

Usually ships in 2-12 days

0

47

Generac 078115A

WASHER SELF LOCKING DO ME #8-32

$2.49

$

Usually ships in 2-12 days

0

48

Generac 066760

STRIP SEALANT 1/8 X 1 (44.52"LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days

0
