QT06030GVSN - Generac 60kW Home Standby Generator (SN: 5025149 - 5138440) (2016) Battery C4 (0F9449) Parts Diagram

60kW Home Standby Generator

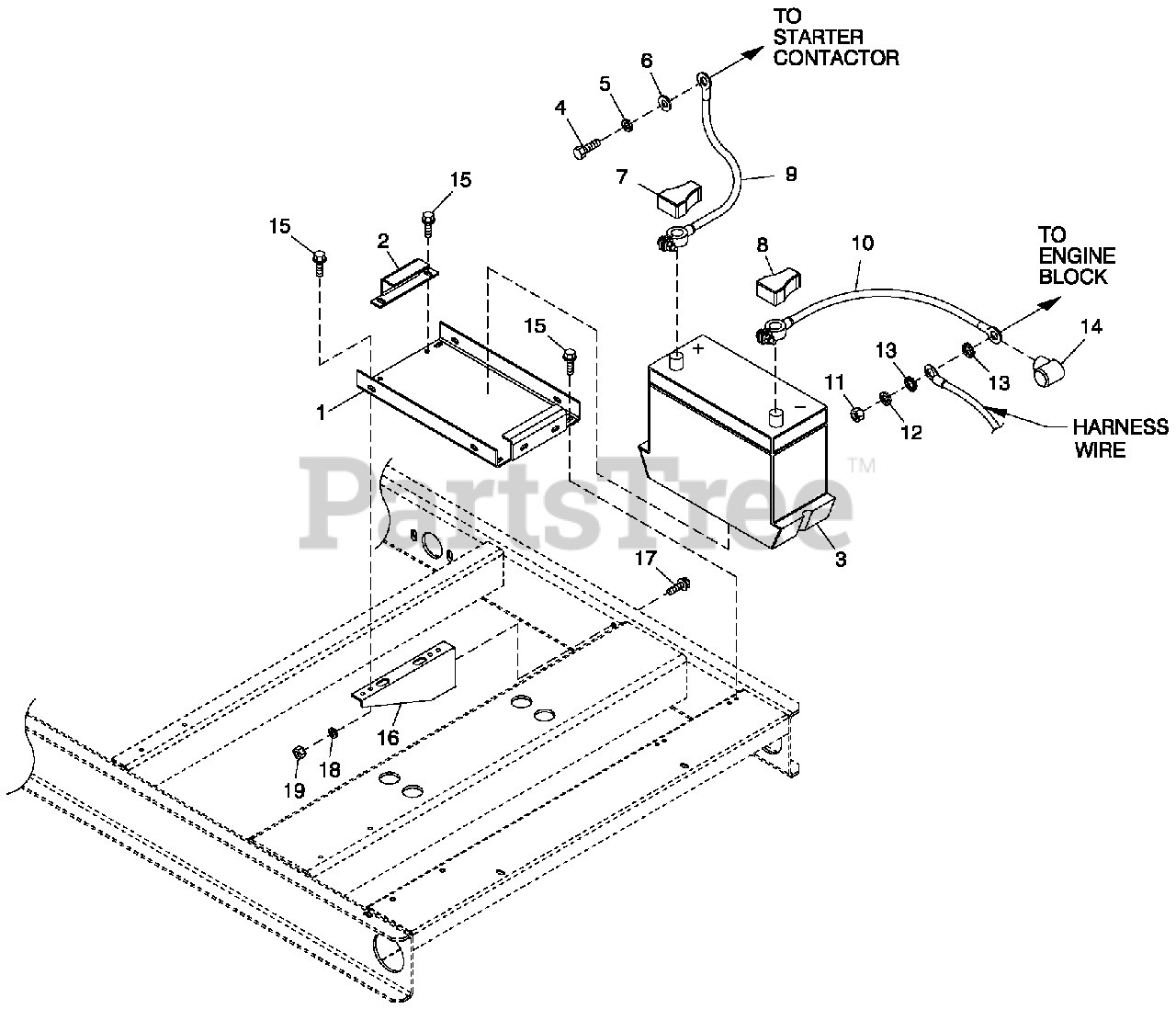

Battery C4 (0F9449) Parts Diagram

  • Title

1

Generac 0F3408

TRAY BATTERY

$127.99

$

Usually ships in 2-12 days

0

2

Generac 0F3411

STRAP BATTERY RETAINMENT

$7.99

$

In Stock, only 1 left!

0

3

Generac 058208

BATTERY 12VDC 24F 525 CCA

$

$

Not available

4

Generac 036833

SCREW HHC 3/8-16 X 1 G8

$

$

Not available

5

Generac 022237

WASHER LOCK 3/8

$

$

Not available

6

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

7

Generac 050331A

BATTERY POST COVER RED +

$4.49

$

Usually ships in 2-12 days

0

8

Generac 050331

BATTERY POST COVER BLACK -

$

$

Not available

9

Generac 038804Y

CABLE BATTERY RED #1 X 35.00

$100.99

$

Usually ships in 2-12 days

0

10

Generac 038805T

CABLE BATTERY BLACK #1 X 40.00

$144.99

$

Usually ships in 2-12 days

0

11

Generac 045771

NUT HEX M 8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

12

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

13

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

14

Generac 0F3976

BOOT CONTACTOR CABLES

$1.99

$

Usually ships in 2-12 days

0

15

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

16

Generac 0F3409

SUPPORT BATTERY TRAY

$50.99

$

Usually ships in 2-12 days

0

17

Generac 042568

SCREW HHC M6-1.0 X 20 G8.8

$

$

Not available

18

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

19

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0
