QT06030GVSN - Generac 60kW Home Standby Generator (SN: 4795018 - 4928452) (2007) R-200 3600 Rpm Duratec (0G0096D) Parts Diagram

60kW Home Standby Generator

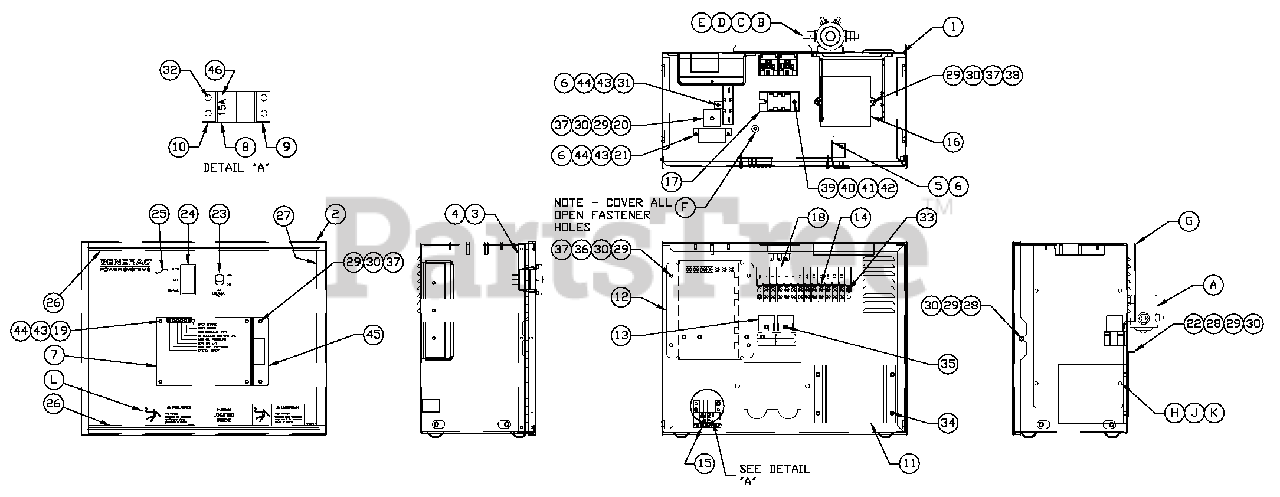

R-200 3600 Rpm Duratec (0G0096D) Parts Diagram

  • Title

COMPONENTS INCLUDED IN 0F9696E

$

$

Not available

1

Generac 0F1823A

ENCL HSB CONTROL PANEL

$435.99

$

Usually ships in 2-12 days

0

2

Generac 0F3078

COVER CONTROL PANEL

$218.99

$

Usually ships in 2-12 days

0

3

Generac 0F2606

HINGE CONTINUOUS H-PANEL

$18.99

$

Usually ships in 2-12 days

0

4

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

5

Generac 043181

SCREW PHM M3-0.5X 10MM

$

$

Not available

6

Generac 052777

WASHER FLAT M3

$

$

Not available

7

Generac 0F8710B

ASSY PCB CPL2 CTRLR 3600 RPM

Note: USE 0F8710BSRV

$

$

Currently unavailable

8

Generac 0F1262

HOLDER, FUSEWICKMANN 178.6150

$8.49

$

Usually ships in 2-12 days

0

9

Generac 0F1263

ADPTR.RH SIDEWICKMAN 178.6191

$

$

Not available

10

Generac 0F1264

ADPTR,LH SIDEWICKMAN 178.6192

$

$

Not available

11

Generac 0F1725C

ASSY PCB 2AMP 12V UL BATT CHGR

Note: ORDER P/N 0F1725CSRV.

$

$

Currently unavailable

12

Generac 067680

ASSY VOLTAGE REGULATOR 60HZ
(Superseded to 0676800SRV)

$610.99

$

Usually ships in 2-12 days

0

13

Generac 0E6875A

RELAY, 12VDC C FORM W/DIODE

$19.99

$

Usually ships in 2-12 days

0

14

Generac 055911

BLOCK TERM 20A 12 X 6 X 1100V

$

$

Not available

15

Generac 0F5459

DECAL CPL CONTROL PANEL FU SE S

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0E3161

ASSY PCB BOSCH GOV DRIVER

Note: ORDER P/N 0E31610SRV.

$

$

Not available

17

Generac 0F5090

ASSY PCB SCR BRIDGE

$324.99

$

Usually ships in 2-12 days

0

18

Generac 0F5462

DECAL CPL 3.9LTB1

$1.49

$

Usually ships in 2-12 days

0

19

Generac 0A5062J

SPACER 9.5H 3.2 ID

$2.49

$

Usually ships in 2-12 days

0

20

Generac 029673

DIO BRIDGE 25A 600V

$

$

Not available

21

Generac 048467

CIRCTBRK 7 X 1 ETA 46-500-P

$

$

Not available

22

Generac 0F1958

PLATE,HARNESS CLAMP

$51.99

$

Usually ships in 2-12 days

0

23

Generac 082573

SWITCH RKR DPST 125V SPD
(Superseded to G082573)

$21.99

$

Usually ships in 2-12 days

0

24

Generac 0E4494

SWITCH RKR DPDT ON-OFF-ON

$53.99

$

Usually ships in 2-12 days

0

25

Generac 0F3215

DECAL, CONTROL HSB

$91.99

$

Usually ships in 2-12 days

0

26

Generac 0F6305

SEAL COVER 3.18X12.7X382

Note: THIS PART IS BASIC WEATHER STRIPPING AVAIL. FROM ANY HARDWARE STORE. WE DO NOT STOCK IT

$

$

Currently unavailable

27

Generac 0F6305A

SEAL COVER 3.18X12.7X283

Note: THIS PART IS JUST BASIC WEATHER STRIPPING AVAILABLE FROM HARDWARE STORES. WE DO NOT STOCK

$

$

Currently unavailable

28

Generac 0F5886

SCREW HHPM M5-0.8 X 12

$0.99

$

Usually ships in 2-12 days

0

29

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

30

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

31

Generac 0F5752F

RES WW 15R 5% 25 W QK CONN

$25.99

$

Usually ships in 2-12 days

0

32

Generac 0F5884

SCREW PHTT M3.5-0.6 X 10

$

$

Not available

33

0F5896

SCREW PHTT M3.5-0.6 X 16

$

$

Not available

34

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZYC

$0.99

$

Usually ships in 2-12 days

0

35

Generac 0C3990

SCREW PHTT M4-0.7 X 10 ZYC

$0.99

$

Usually ships in 2-12 days

0

36

Generac 091526

SCREW PPHM M5-0.8 X 12 ZNC

$

$

Not available

37

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

38

Generac 079224

SCREW PPHM M5-0.8 X 30 SS

$

$

Not available

39

Generac 075476

SCREW PPHM M4-0.7X 16

$

$

Not available

40

Generac 043180

WASHER FLAT M4

$

$

Not available

41

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

42

Generac 051715

NUT HEX M4-0.7 G8 Y E L CHR
(Superseded to G051715)

$9.49

$

Usually ships in 2-12 days

0

43

Generac 043182

WASHER LOCK M3
(Superseded to G043182)

$0.99

$

Usually ships in 2-12 days

0

44

Generac 051714

NUT HEX M3-0.5 G8 Y E L CHR
(Superseded to G051714)

$0.99

$

In Stock, Qty 8

0

45

Generac 0F3192

SUPPORT ANGLE PCB

$25.99

$

Usually ships in 2-12 days

0

46

Generac 0E7403C

FUSE ATO TYPE 15 AMP (BLUE)

$2.49

$

Usually ships in 2-12 days

0

47

Generac 0F9785

HARN 3600RPM R200 CONTROL PNL

Note: DOES NOT COME WITH CONNECTION PLUG. IF NEEDED ORDER 097234V

$567.99

$

Usually ships in 2-12 days

0

COMPONENTS INSTALLED P ER THIS DRAWING

$

$

Not available

A

Generac 056739

RELAY SOLENOID 12VDC PNL MNT
(Superseded to G056739)

$163.99

$

Usually ships in 2-12 days

0

B

Generac 022287

SCREW HHC 1/4-20 X 3/4 G5

$

$

Not available

C

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

D

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

E

Generac 022127

NUT HEX 1/4-20 ST E E L
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

F

Generac 0F6145

SEAL WEATHER .45"DIA

$1.49

$

Usually ships in 2-12 days

0

G

Generac 0F2627A

COVER CONTROL PANEL SIDE

$107.99

$

Usually ships in 2-12 days

0

H

Generac 091526

SCREW PPHM M5-0.8 X 12 ZNC

$

$

Not available

J

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

K

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

L

0G3545

DANGER HIGH VOLTAGE (SPANISH)

$

$

Not available
