QT06030GNSN - Generac 60kW Home Standby Generator (SN: 4363804 - 5008690) (2008) Engine Common Parts (0F9766) Parts Diagram

60kW Home Standby Generator

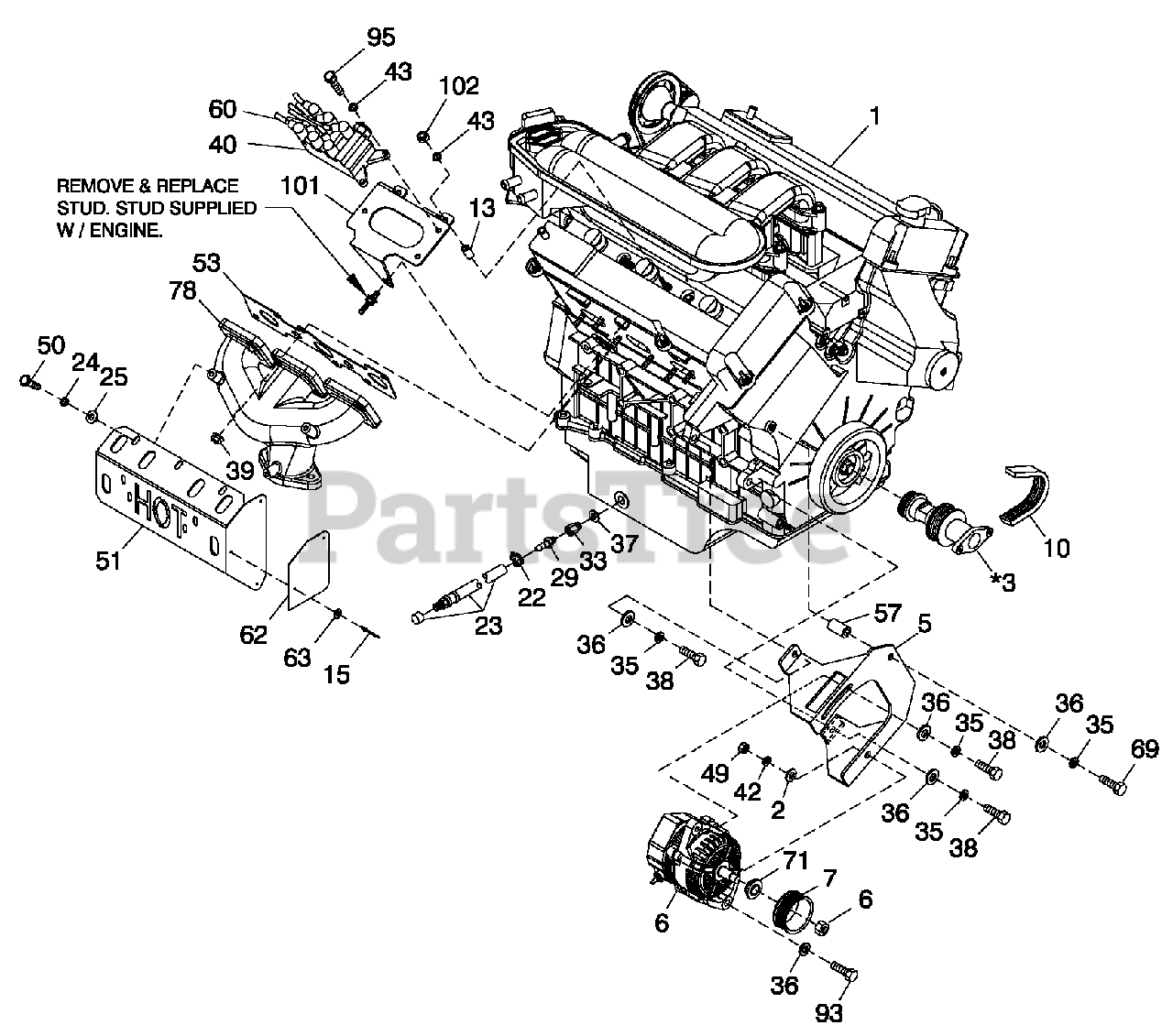

Engine Common Parts (0F9766) Parts Diagram

  • Title

1

Generac 0F9765

ENGINE FWD MAKE

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

3

Generac 0F8046

ADAPTER CRANKSHAFT

$232.99

$

Usually ships in 2-12 days

0

4

Generac 085662D

TIE WRAP UL 17.7 X .35 BLK HT

$2.49

$

Usually ships in 2-12 days

0

5

Generac 0F9625

BRACKET DC ALTERNATOR

$

$

Not available

6

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

$519.99

$

Usually ships in 2-12 days

0

7

Generac 0F3216

PULLEY 80 OD DC ALTERNATOR

$34.99

$

Usually ships in 2-12 days

0

8

0F9258

SUPPORT COOLANT TUBE

$

$

Not available

9

Generac 0D5419

OIL FILTER

Note: INCLUDED IN KITS: 0D345400PM

$49.99

$

Usually ships in 2-12 days

0

10

Generac 0D3488N

BELT SERPENTINE 28.92"

$148.99

$

Usually ships in 2-12 days

0

11

Generac 0F8931

SPACER FLEX PLATE

$

$

Not available

12

Generac 027482

WASHER SHAKEPROOF EXT 5/16 STL

$

$

Not available

13

Generac 029187

SPAC ER.19 X .31 X .50 PL

$

$

Not available

14

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8 NPT

$93.99

$

Usually ships in 2-12 days

0

15

Generac 033472

RIVET POP .125 X .400 AL

$

$

Not available

16

Generac 0E9747

STARTER 12 VOLT

Note: ORDER P/N 0G7461RWK. SPACER NOT REQUIRED IF UNIT DOES NOT HAVE ONE. IF UNIT WAS SHIPPED WITH SPACER AND SPACER IS DAMAGED ORDER SPACER P/N 0G0860.

$

$

Not available

17

Generac 0E6585

COVER IAC ACTUATOR

$19.99

$

Usually ships in 2-12 days

0

18

Generac 0F8425

ADAPTER ENGINE

$4342.99

$

Usually ships in 2-12 days

0

19

Generac 0F9965C

FLEX PLATE 2 POLE

$58.99

$

Usually ships in 2-12 days

0

20

Generac 055476

BSHG RDCR HEX 3/8 TO 1/8 GALV

$

$

Not available

21

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

22

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

23

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

24

Generac 083896

WASHER LOCK 1/4-M6SS
(Superseded to G083896)

$7.99

$

Usually ships in 2-12 days

0

25

Generac 084929

WASHER FLAT 1/4 SS

$

$

Not available

26

Generac 0F3844

WASHER FLAT .45X1.00

$4.99

$

Usually ships in 2-12 days

0

27

Generac 077996

CAP ANTIFREEZE RUBBER

$

$

Not available

28

Generac 057823

CLAMP HOSE #10.56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

29

Generac 055596

BARBED STR 3/8 NPT X 3/8

$

$

Not available

30

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

31

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

32

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

33

Generac 077456

ADAPTER M12-1.75X 3/8 NPT

$

$

Not available

34

Generac 0G0153

BARBED EL 90 1/2 NPT X 3/4 HOSE

$32.99

$

Usually ships in 2-12 days

0

35

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

36

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

37

Generac 052677

WASHER NYLON .50 X .87 X .06

$

$

Not available

38

Generac 043107

SCREW HHC M8-1.25X25G8.8

$

$

Not available

39

Generac 067989

NUT HEX FLWHIZ M8-1.25
(Superseded to G067989)

$2.49

$

In Stock, only 4 left!

0

40

Generac 0F9228

COIL IGNITION

$675.99

$

Usually ships in 2-12 days

0

41

Generac 0D5417

SCREW HHC M10-1.0X25G10.9

$3.49

$

Usually ships in 2-12 days

0

42

Generac 046526

WASHER LOCK M10

$

$

Not available

43

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

44

Generac 064416

SCREW HHC M10-1.5 X 45 G8.8 FT

$

$

Not available

45

Generac 043116

SCREW HHC M6-1.0X 12 G8.8
(Superseded to G043116)

$0.99

$

Usually ships in 2-12 days

0

46

Generac 051769

WASHER LOCK M12

$

$

Not available

47

Generac 049808

WASHER FLAT M12

$

$

Not available

48

Generac 025507

WASHER SHAKEPROOF EXT 7/16 STL

$

$

Not available

49

Generac 045772

NUT HEX M10-1.5 G8YEL CHR

$

$

Not available

50

Generac 085296

SCREW HHC 1/4-20X1/2 SS

$

$

Not available

51

Generac 0E7202

HEAT SHIELD 260X80 HOT

$55.99

$

Usually ships in 2-12 days

0

52

Generac 0F8795A

MANIFOLD EXHAUST LH

Note: OBSOLETE

$

$

Not available

53

Generac 0G0100

GASKET EXHAUST

$97.99

$

Usually ships in 2-12 days

0

54

Generac 0F9837

HARN ENG R-200 (NOT SHOWN)

$739.99

$

Usually ships in 2-12 days

0

55

Generac 0E0992A

PLUG EXPANSION 14 OD

$3.49

$

Usually ships in 2-12 days

0

56

Generac 039253

SCREW HHC M8-1.25X20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

57

Generac 0F9617

SPACER ALTERNATOR

$

$

Not available

58

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

59

Generac 052617

SCREW HHC M12-1.75 X 20 G8.8

$

$

Not available

60

Generac 0F9556

WIRES, SPARK PLUG

$363.99

$

Usually ships in 2-12 days

0

61

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$0.99

$

Usually ships in 2-12 days

0

62

Generac 0F5966

REFLECTIVE HEAT SHIELD

$

$

Not available

63

Generac 022985

WASHER FLAT #6 ZINC
(Superseded to G022985)

$0.99

$

Usually ships in 2-12 days

0

64

Generac 0F9225

PUMP WATER

Note: DOES NOT NEED GASKET TO MOUNT TO ENGINE

$753.99

$

Usually ships in 2-12 days

0

65

Generac 0F9227

TENSIONER WATER PUMP

$

$

Not available

66

Generac 0F9562

BELT WATER PUMP

$57.33

$

Usually ships in 2-12 days

0

67

Generac 050968

HOSE COOL 3/4 ID 20R3 (51.5" LG)

$

$

Not available

68

Generac 0F6746

TUBE UPPER COOLANT

$87.99

$

Usually ships in 2-12 days

0

69

Generac 051731

SCREW HHC M8-1.25X50G8.8

$

$

Not available

70

Generac 052243

SCREW HHC M10-1.5X60G8.8

$

$

Not available

71

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

72

Generac 0F9563

GASKET IDLE AIR CONTRL ACT CVR

$32.99

$

Usually ships in 2-12 days

0

73

Generac 0F9564

GASKET INTAKE ADAPTER

$22.99

$

Usually ships in 2-12 days

0

74

Generac 0F9222

MANIFOLD INTAKE UPPER

Note: MUST ORDER 6 OF PART NUMBER 0E0992A EXPANSION PLUG.

$

$

Not available

75

Generac 0F9224

GASKET INTAKE MANIFOLD UPPER

$14.99

$

Usually ships in 2-12 days

0

76

Generac 0F9221

MANIFOLD INTAKE LOWER

$440.99

$

Usually ships in 2-12 days

0

77

Generac 0F9223

GASKET INTAKE LOWER

Note: ORDER 0F8286F239

$

$

Not available

78

Generac 0F8795

MANIFOLD EXHAUST RH

Note: OBSOLETE

$

$

Not available

79

Generac 055934V

CLAMP VINYL 1.5 X .281 Z

$4.99

$

Usually ships in 2-12 days

0

80

Generac 0F9220

HOSE UPPR RAD REAR

$36.99

$

Usually ships in 2-12 days

0

81

Generac 0F9239

HOSE, LOWR RAD REAR

$61.99

$

Usually ships in 2-12 days

0

82

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

83

Generac 0A2711A

ADAPTER THERMOSTAT

$636.99

$

Usually ships in 2-12 days

0

84

Generac 048665

GASKET THERMOSTAT

$

$

Not available

85

Generac 075885

THERMOSTAT 195 DEG
(Superseded to G075885)

$48.99

$

Usually ships in 2-12 days

0

86

Generac 0F9252

MACHINING-THERMOSTAT ADPTR

Note: WHEN INVENTORY IS CONSUMED THIS PART IS NO LONGER AVAILABLE

$

$

Not available

87

0F9259

BRACKET,THERMOSTAT

$

$

Not available

88

Generac 0C2454

SCREW THF M6-1X16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

89

Generac 052207

SCREW HHC M8-1.25X80 G8.8

$

$

Not available

90

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

91

Generac 045757

SCREW HHC M6-1.0X 25 G8.8
(Superseded to G045757)

$0.99

$

Usually ships in 2-12 days

0

92

Generac 0F9232

HOSE UPPR RAD REAR

$25.99

$

Usually ships in 2-12 days

0

93

Generac 057645

SCREW HHCM10-1.5X50 G8.8

$

$

Not available

94

Generac 074908

SCREW HHTT M5-0.8X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

95

Generac 055440

SCREW HHC M5-0.8X 25 G8.8

$

$

Not available

96

0F9271

GUARD WATER PUMP REAR

$

$

Not available

97

0F9270

GUARD WATER PUMP FRNT

$

$

Not available

98

Generac 0F9314

BRKT WATERPUMP GUARD

$

$

Currently unavailable

99

Generac 0F7695

EGRGASKET

$1.49

$

Usually ships in 2-12 days

0

100

Generac 0F6658

COVEREGR

$

$

Not available

101

Generac 0F9498

BRACKET COIL

$69.99

$

Usually ships in 2-12 days

0

102

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

103

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

104

Generac 0G0607

ASSEMBLY HOSE PCV VALVE

$124.99

$

Usually ships in 2-12 days

0

105

Generac 083601

SCREW HHC M6-1.0X 80 G8.8

$

$

Not available

106

Generac 0G3661

WATER TUBE ASSY 3.0L G3 FWD

$336.99

$

Usually ships in 2-12 days

0

107

Generac 0F97650191

DIPSTICK TUBE

Note: OBSOLETE

$

$

Not available

108

Generac 0F97650192

DIPSTICK

$

$

Not available

109

Generac 0F97650207

ACCESSORY DRIVE PULLEY

$

$

Not available
