QT06030GNAN - Generac 60kW Home Standby Generator (SN: 4811706 - 4923476) (2007) Cpl Alternator Direct Excitation (0F9362) Parts Diagram

60kW Home Standby Generator

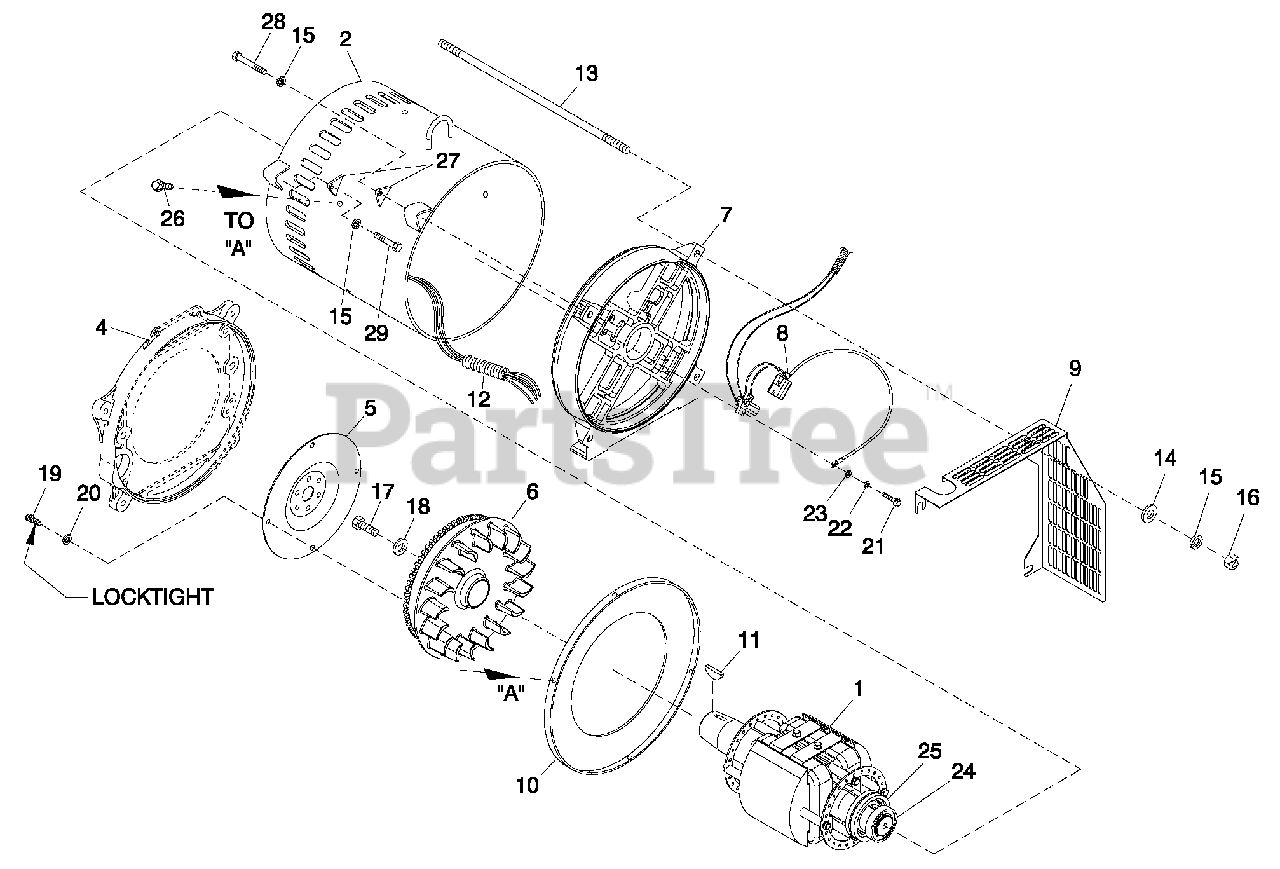

Cpl Alternator Direct Excitation (0F9362) Parts Diagram

  • Title

1

Generac 0F9579

RTR-2390-60KD2 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$5098.99

$

Usually ships in 2-12 days

0

2

Generac 0F9578

ASSY STR 2390 60AD2 CPL

$6662.99

$

Usually ships in 2-12 days

0

Generac 0F9659

ASSY STR 390 60KW 2P 3PH 208V

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$

$

Not available

Generac 0F9660

ASSY STR 390 60KW 2P 3PH 480V

$

$

Not available

Generac 0G6105

STR-2390--60JD2 CPL

$

$

Not available

3

0C9708

INSTR HYPOT TEST (NOT SHOWN)

$

$

Not available

4

ENGINE ADAPTER

$

$

Not available

5

FLEXPLATE

$

$

Not available

6

Generac 0F5767B

ASSY FLYWHEEL CPL W/40MM FAN B

$1415.99

$

Usually ships in 2-12 days

0

7

Generac 0E5706

REAR BEARING CARRIER 390/DRCT

$922.99

$

Usually ships in 2-12 days

0

8

Generac 0F7874

ASSY BRUSH HOLDER 390/HSB

$193.99

$

Usually ships in 2-12 days

0

9

Generac 0F6125

GUARD REAR BEARING CARRIER CPL

$388.99

$

Usually ships in 2-12 days

0

10

Generac 0F2689

RING PRESSURE 390 STATOR CAN

$63.99

$

Usually ships in 2-12 days

0

11

Generac 023454

KEY WOODRUFF (E

$

$

Not available

12

Generac 077043F

CONDUIT FLEX 1-1/4" (30" LG)

$3.99

$

Usually ships in 2-12 days

0

13

Generac 04576100AQ

STUD M14-2.0 X 615 G5 ZINC (70KW)

$

$

Not available

14

Generac 052646

WASHER FLAT M14

$

$

Not available

15

Generac 043123

WASHER LOCK M14

$

$

Not available

16

Generac 051779

NUTHEXM14-2.0 G8 YEL CHR

$

$

Not available

17

Generac 0A2601

SCREW HHC M16-2.0X 45 G8.8

$15.99

$

Usually ships in 2-12 days

0

18

Generac 072879

SPACER .69 X 2.75 X .37 ST/ZNC

$

$

Not available

19

Generac 0F3398

SCREW SHC M10-1.5X 16 G10.9

$1.99

$

Usually ships in 2-12 days

0

20

Generac 046526

WASHER LOCK M10

$

$

Not available

21

Generac 0C3993

SCREW HHTT M4-0.7X25BP

$3.99

$

Usually ships in 2-12 days

0

22

Generac 022264

WASHER LOCK (8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

23

Generac 038150

WASHER FLAT (8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

24

Generac 047248

BALL BEARING-45 MM

Note: ROTOR REPLACEMENT PARTS

$

$

Not available

25

Generac 070892

SLIP RING MACHINED

Note: ROTOR REPLACEMENT PARTS

$

$

Not available

26

Generac 0F7272

SCREW 1/4-20 X 5/8" TAPTITE SS

$3.99

$

Usually ships in 2-12 days

0

27

Generac 0A1633

WASHER 390 SAE ALT.

$5.49

$

Usually ships in 2-12 days

0

28

Generac 0A5580

SCREW HHC M14-2.0 X 140 G8.8

$5.99

$

Usually ships in 2-12 days

0

29

Generac 0D7019

SCREW HHC M14-2.0 X 100 G 8.8

$0.99

$

Usually ships in 2-12 days

0
