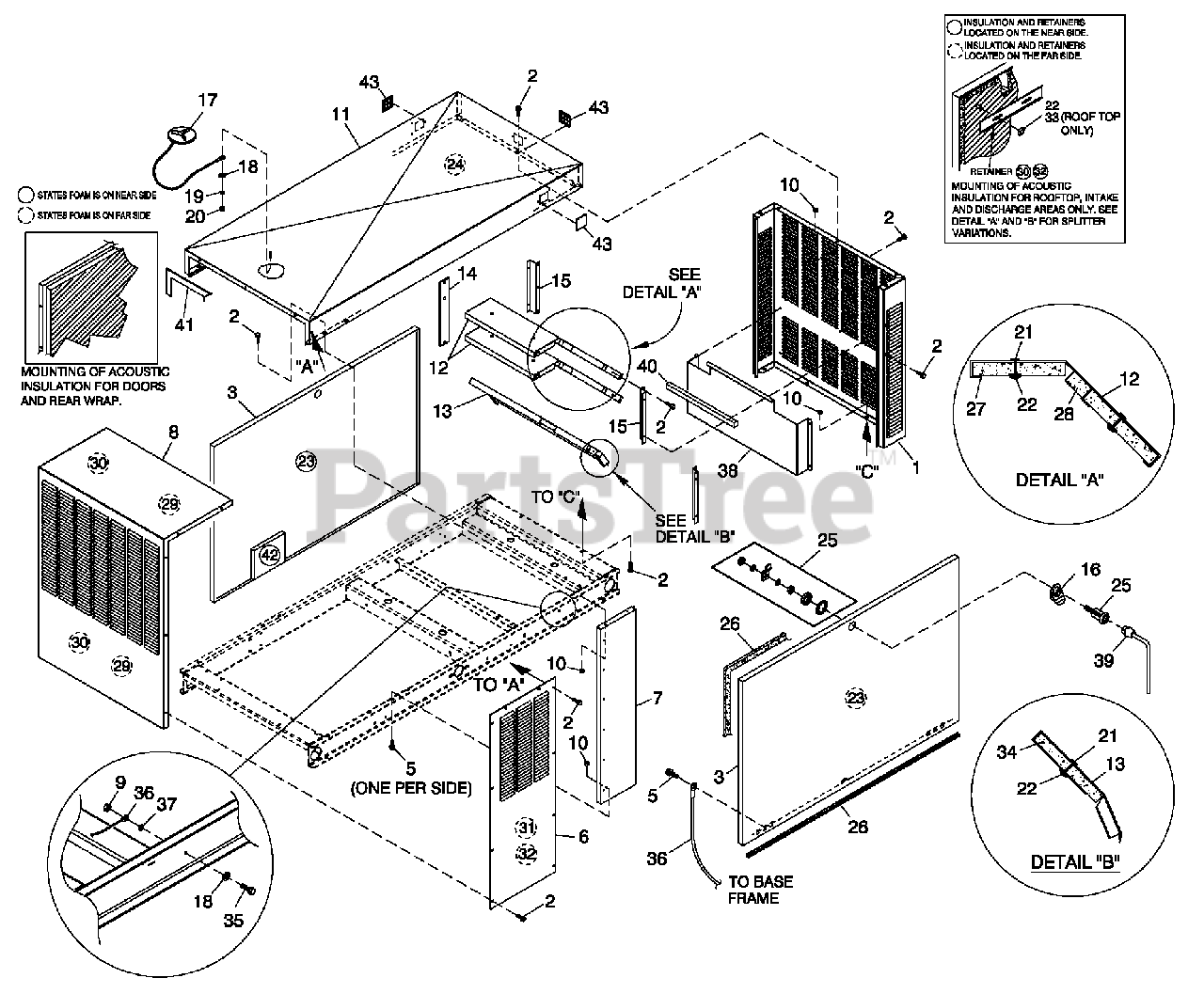

Generac QT06024KNSN - Generac 60kW Home Standby Generator (SN: 5369401 - 5445081) (2009) Enclosure C2 (0G8688) Parts Lookup with Diagrams

1

0G80180ST0R

REAR WRAP C2G2 60KW

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR).MANUFACTURING : FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER : FOR CORRECT MATERIAL AND COLOR OF REPLACEMENT PARTS REFER TO "REPLACEMENT SHEET METAL PARTS ORDERING GUIDE-0H7169" INCLUDED IN THE MANUALOR AVAILABLE ON THE GENERAC WEBSITE.

$

Not available 

2

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

3

0F58490ST0R

DOOR C2

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR).MANUFACTURING : FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER : FOR CORRECT MATERIAL AND COLOR OF REPLACEMENT PARTS REFER TO "REPLACEMENT SHEET METAL PARTS ORDERING GUIDE-0H7169" INCLUDED IN THE MANUALOR AVAILABLE ON THE GENERAC WEBSITE.

$

Not available 

4

Generac 087233

RIVET POP.1875 X .450 SS

$

Not available 

5

Generac 0E3257

SCREW TH-FRM M6 W/CAP SHKPRF W

$5.49

$

Usually ships in 2-12 days

6

0F58520AL0R

DUCT DSCHRG LH&RH

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR).MANUFACTURING : FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER : FOR CORRECT MATERIAL AND COLOR OF REPLACEMENT PARTS REFER TO "REPLACEMENT SHEET METAL PARTS ORDERING GUIDE-0H7169" INCLUDED IN THE MANUALOR AVAILABLE ON THE GENERAC WEBSITE.

$

Not available 

7

0F98330ST0R

FRONT CORNERS C2

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR).MANUFACTURING : FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER : FOR CORRECT MATERIAL AND COLOR OF REPLACEMENT PARTS REFER TO "REPLACEMENT SHEET METAL PARTS ORDERING GUIDE-0H7169" INCLUDED IN THE MANUALOR AVAILABLE ON THE GENERAC WEBSITE.

$

Not available 

8

0F58510ST0R

DUCT DISCHARGE C2

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR).MANUFACTURING : FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER : FOR CORRECT MATERIAL AND COLOR OF REPLACEMENT PARTS REFER TO "REPLACEMENT SHEET METAL PARTS ORDERING GUIDE-0H7169" INCLUDED IN THE MANUALOR AVAILABLE ON THE GENERAC WEBSITE.

$

Not available 

9

Generac 049813

NUT HEX M6X 1.0 G8YEL CHR

(Superseded to G049813) 

$3.49

$

In Stock, only 4 left!

10

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS

(Superseded to G077992) 

Note: ALUMINUM ENCLOSURE NOTE: ALL ENCLOSURE PANELS THAT FASTEN TO THE BASE FRAME MUST BE SECURE D USING ITEM 2 & 5 THREAD FORMING FASTENER AN D I/N 10 LOCK NUT. LOCK NUT IS TO BE INSTALLE D AFTER THREA D FORMING FASTENER HAS PENETRATE D THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL ROOF PANELS ARE TO BE SECURE D IN THE SAME MANNER.

$1.49

$

Usually ships in 2-12 days
