QT06024GVAX - Generac 60kW Home Standby Generator (SN: 5989789 - 6882574) (2012) Conbox C2 CPL (0H7326) Parts Diagram

60kW Home Standby Generator

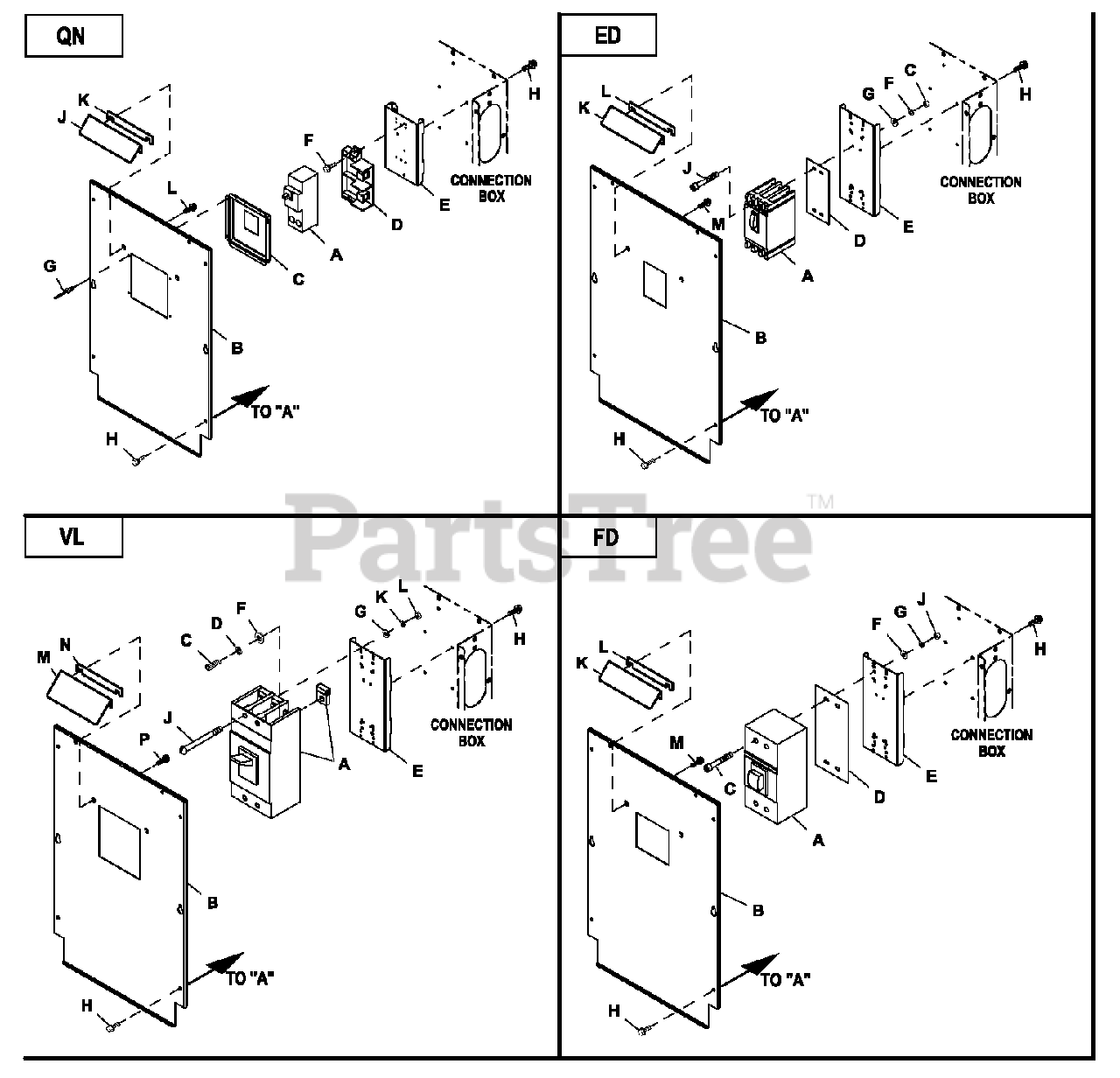

Conbox C2 CPL (0H7326) Parts Diagram

  • Title

UL CIRCUIT BREAKER (Q N)

$

$

Not available

A

Generac 0E7284

CB 0175A2P 240V S Q N 2 LL

$396.99

$

Usually ships in 2-12 days

0

B

Generac 0H7356

COVER CB C2 CPL

$161.99

$

Usually ships in 2-12 days

0

C

0H7429

COVER CB DISH 2P S Q N

$

$

Not available

D

Generac 0E3664

BASE, Q N CIRCUIT BREAKER

$519.99

$

In Stock, only 1 left!

0

E

Generac 0H7311

STA N DOFF CB BOX CO N BOX

$50.99

$

Usually ships in 2-12 days

0

F

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

G

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

0J78740ST0R

SHIELD-SM CIRCUIT BREAKER

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRE

$

$

Not available

K

Generac 0J7872

GASKET-CB SHIELD C2

$1.99

$

Usually ships in 2-12 days

0

L

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (ED)

$

$

Not available

A

Generac 0D9693

CB 0125A3P 480V S ED4 LL

$1506.99

$

Usually ships in 2-12 days

0

B

0H6736

COVER CB S ED C2 CO NBOX

$

$

Not available

C

Generac 022158

N UT HEX #10-32 STEEL

$

$

Not available

D

Generac 0F0492

I N SULATOR CB S(ED-3P)

$7.99

$

Usually ships in 2-12 days

0

E

Generac 0H6734

STA N DOFF CB MOU NT CO N BOX

$57.99

$

Usually ships in 2-12 days

0

F

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

G

Generac 023897

WASHER FLAT#10ZIN C

$

$

Not available

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 048927

SCREW RHM #10-32 X 4-1 /2

$

$

Not available

K

0J78740ST0R

SHIELD-SM CIRCUIT BREAKER

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM. CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRE

$

$

Not available

L

Generac 0J7872

GASKET-CB SHIELD C2

$1.99

$

Usually ships in 2-12 days

0

M

Generac 0E3257

SCREW HWHTF M6-1.0X16

$5.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (VL)

$

$

Not available

A

0H7519

CB 0300A 3P 600V S JG-VL LL

$

$

Not available

B

Generac 0H6738

COVER CB S JG VL C2 CONBOX

$167.99

$

Usually ships in 2-12 days

0

C

Generac 040976

SCREW SHC M8-1.25 X 20 C12.9
(Superseded to G040976)

$1.49

$

In Stock, only 1 left!

0

D

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

E

Generac 0H6734

STANDOFF CB MOUNT CONBOX

$57.99

$

Usually ships in 2-12 days

0

F

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

G

Generac 023897

WASHER F LA T # 1 0 ZINC

$

$

Not available

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 042419

SCREW RHM 1 0 -3 2 X 4

$

$

Not available

K

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

L

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

M

Generac 0J7874AST03

SHIELD-LGE CIRCUIT BREAKER

$22.99

$

Usually ships in 2-12 days

0

N

Generac 0J7872

GASKET-CB SHIELD C2

$1.99

$

Usually ships in 2-12 days

0

P

Generac 0E3257

SCREW HWHTF M6-1.0 X 1 6

$5.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (FD)

$

$

Not available

A

Generac 0D5572

CB 0 1 5 0A 3P 600V S FD6 LL

$2299.99

$

Usually ships in 2-12 days

0

B

Generac 0H6737

COVER CB S FD6 C2 CONBOX

$167.99

$

Usually ships in 2-12 days

0

C

Generac 081320

SCREW SHC 1 /4 -2 0 X 4 .5 G8.8 NZ

$

$

Not available

D

Generac 0F0199

INSULATOR CB FD FRAME 30MIL

$5.49

$

Usually ships in 2-12 days

0

E

Generac 0H6734

STANDOFF CB MOUNT CONBOX

$57.99

$

Usually ships in 2-12 days

0

F

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

G

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

K

Generac 0J78740ST03

SHIELD-SM CIRCUIT BREAKER

$35.99

$

Usually ships in 2-12 days

0

L

Generac 0J7872

GASKET-CB SHIELD C2

$1.99

$

Usually ships in 2-12 days

0

M

Generac 0E3257

SCREW HWHTF M6-1.0 X 1 6

$5.49

$

Usually ships in 2-12 days

0
