QT06024GNSN - Generac 60kW Home Standby Generator (SN: 5374119 - 5447069) (2009) Engcomprt 2.4l G2 Turbo (0H2647) Parts Diagram

60kW Home Standby Generator

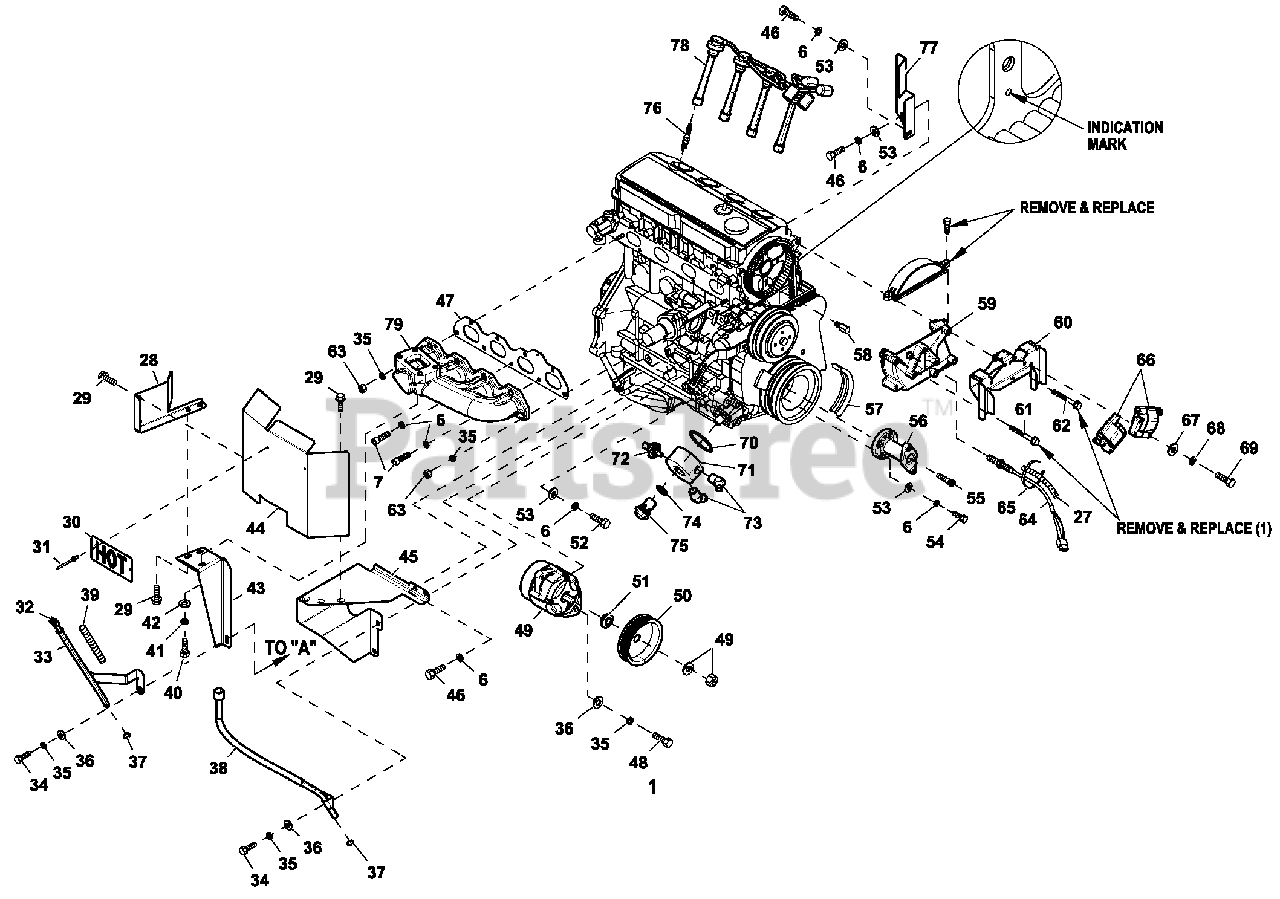

Engcomprt 2.4l G2 Turbo (0H2647) Parts Diagram

  • Title

1

Generac 0H1619

ENGINE 2 .4 L G 2 CERTIFIED

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

6

Generac 022129

W A SH ER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 058306

SCREW SHC M8-1.25 X 25
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

28

Generac 0G3995

SHIELD INNER HEAT 2.4L TURBO

$

$

Currently unavailable

29

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

30

Generac 0D3701

PLATE "HOT"

$21.99

$

Usually ships in 2-12 days

0

31

Generac 0F0710

RIVET POP .1 2 5 X 0 .3 3 7 STEEL

$0.99

$

Usually ships in 2-12 days

0

32

Generac 0F2664H

ASSY DIPSTICK W /TEXT GTH-530
(Superseded to 0H6859H)

Note: ORDER 0H6859H

$9.99

$

Usually ships in 2-12 days

0

33

Generac 0G8427A

ASSY DIPSTICK TUBE 2.4 G2

$19.99

$

Usually ships in 2-12 days

0

34

Generac 052213

SCREW HHC M 1 0 -1.2 5X 20 C8.8

$

$

Not available

35

Generac 046526

W A SH ER LOCK M10

$

$

Not available

36

Generac 022131

W A SH ER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

37

Generac 0G3823

O-RING SIZE 9.0MM X 2.0MM NITR

$0.99

$

Usually ships in 2-12 days

0

38

Generac 0G7902

TUBE TURBO O IL RETURN G2 2.4L

$357.99

$

Usually ships in 2-12 days

0

43

Generac 0G39910ST03

BRACKET EXH MANIFOLD 2.4 TURBO

$

$

Currently unavailable

44

Generac 0G4000

HEAT SHIELD TURBO 2.4L

$

$

Currently unavailable

45

Generac 0G39970ST03

BRACKET HEAT SHIELD 2.4L

$

$

Currently unavailable

46

Generac 042907

SCREW HHC M 8-1.25X 16 C8.8
(Superseded to G042907)

$2.49

$

In Stock, only 4 left!

0

47

Generac 0G0951

G ASKET EXHAUST MANIFOLD

$35.99

$

In Stock, only 1 left!

0

48

Generac 052243

SCREW HHC M 1 0 -1 .5 X 6 0 G8.8

$

$

Not available

49

Generac 0E9868A

ALTERN ATO R DC W /O U T PULLEY

$519.99

$

Usually ships in 2-12 days

0

50

Generac 0G0788

PULLEY DC A LTERN ATO R (3600 RPM)

$35.99

$

Usually ships in 2-12 days

0

51

Generac 0F3217

SPACER DC A LTERN ATO R PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

53

Generac 022145

W A SH ER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

54

Generac 039414

SCREW HHC M 8 -1 .2 5 X 3 5 G8.8
(Superseded to G039414)

$15.99

$

Usually ships in 2-12 days

0

57

Generac 0G0952

POLY V-BELT G2 (3600 RPM)

$67.99

$

Usually ships in 2-12 days

0

58

Generac 0G1472A

CAM SEN SOR PIN ASSY

$27.99

$

Usually ships in 2-12 days

0

59

Generac 0G1477

CO VER CAM GEA R G2 REWORKED

$857.99

$

Usually ships in 2-12 days

0

60

Generac 0G8852

BRACKET ASM -2.4L COIL G2

$137.99

$

Usually ships in 2-12 days

0

61

Generac 052265

SCREW HHC M 8 -1 .2 5 X 6 5 C8.8

$

$

Not available

62

Generac 052203

SCREW HHC M 8 -1 .2 5 X 7 0 G8.8

$

$

Not available

63

Generac 046525

NUT HEX M10-1.25 G 8 Y E L C H R

$

$

Not available

67

Generac 023897

W A SH ER FLAT #10 ZINC

$

$

Not available

68

Generac 022152

W A SH ER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

69

Generac 034413

SCREW HHM #10-32 X 1-1/4

$

$

Not available

70

Generac 0G9350

O-RING 2.5"X 2.75"X 1/8" VITON

$5.99

$

Usually ships in 2-12 days

0

71

Generac 0G9329

A DA PTO R OIL FILTER 2.4L G2

$140.99

$

Usually ships in 2-12 days

0

72

Generac 0A8584

SWITCH OIL PRESSURE 10 PSI 2 POL (R-PANEL)

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

74

Generac 0G9349

O-RING 1 " X 1.25" X 1/8" VITON

$1.99

$

Usually ships in 2-12 days

0

75

Generac 0G9330

NUT OIL FILTER A DA PTO R 2.4L G2

$63.99

$

Usually ships in 2-12 days

0

76

Generac 084750

PLUG SPARK
(Superseded to G084750)

$40.99

$

Usually ships in 2-12 days

0

77

Generac 0G4003

SHIELD HEAT IGNITION COIL 2.4L

$22.99

$

Usually ships in 2-12 days

0

78

Generac 0G8854

SPARK PLUG W IR E SET 2.4L G2 IG

$129.99

$

In Stock, only 1 left!

0

79

Generac 0H1432B

MANIFOLD EXH 60K G2 TURBO (MA)

$345.99

$

Usually ships in 2-12 days

0
