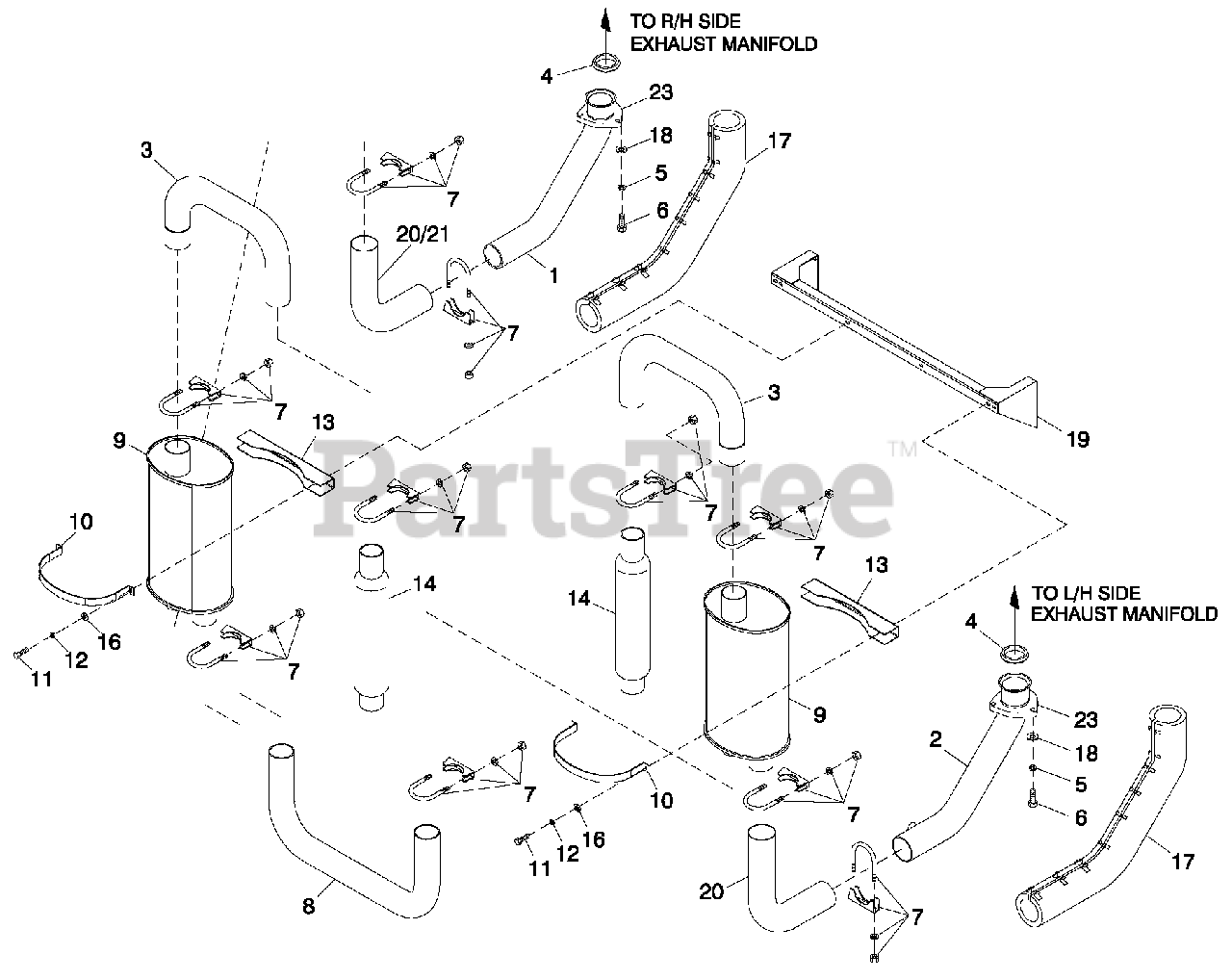

QT05554KNANA - Generac 55kW Home Standby Generator (SN: 5728049 - 5728049) (2009) Muffler 5.4L/6.8L Cpl Exhaust C3 (0F3601) Parts Diagram

55kW Home Standby Generator

Muffler 5.4L/6.8L Cpl Exhaust C3 (0F3601) Parts Diagram

  • Title
1

Generac 0F3224B

PIPE, EXH MANIFOLD 6.8L C3 RH (6.8L 70KW)

$448.99

$

Usually ships in 2-12 days

0

Generac 0F3224C

PIPE EXH MANIFOLD 5.4L C3 RH (5.4L 55KW)

$428.99

$

Usually ships in 2-12 days

0

2

Generac 0F3231

PIPE EXH MANIFOLD 6.8L C3 LH (6.8L 70KW)

$506.99

$

Usually ships in 2-12 days

0

Generac 0F3231A

PIPE EXH MANIFOLD 5.4L C3 LH (5.4L 55KW)

$487.99

$

Usually ships in 2-12 days

0

3

Generac 0F2808B

PIPE EXHA UST MUFFLERO UT

Note: ENCLOSED UNITS ONLY

$154.99

$

Usually ships in 2-12 days

0

4

Generac 0A6765

RING GASKET, 2.5DIA

$21.99

$

Usually ships in 2-12 days

0

5

Generac 0F4710

WASHER LOCK M10SS

$7.99

$

Usually ships in 2-12 days

0

6

Generac 0F7200

SCREW HHC M10-1.5 X 50 SS FTH

$10.99

$

Usually ships in 2-12 days

0

4

Generac 080762

BOLT U 3/8-16X2.62

Note: QTY REQUIRED FOR ENCLOSED / QTY REQUIRED FOR OPEN SET

$

$

Not available

8

Generac 0F2809

PIPE EXHA UST CROSSOVER

$141.99

$

Usually ships in 2-12 days

0

9

Generac 0F2981A

MFLR 7" X 9" X 25" (2) 2.5" IN/2.5" O UT

Note: NO LONGER AVAILABLE ORDER 0F2981ASRV

$

$

Not available

10

Generac 0F2962

M U FFLER STRAP

$66.99

$

Usually ships in 2-12 days

0

11

Generac 047411

SCREW HHC M6-1.0X 16 G8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

12

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

13

Generac 0F2830

M U FFLER BRACKET STIFFENER

$45.99

$

Usually ships in 2-12 days

0

14

Generac 0F4505

GLASS PACK 23.5" LG 2.5" IN/OUT

Note: ENCLOSED UNITS ONLY

$244.99

$

Usually ships in 2-12 days

0

16

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

17

Generac 0F2773D

EXHA UST BLANKET 800MM LG (6.8L 70KW)

$389.99

$

Usually ships in 2-12 days

0

Generac 0F2773E

EXHA UST BLANKET 750MM LG (5.4L 55KW)

$292.99

$

Usually ships in 2-12 days

0

18

Generac 088775

WASHER FLAT 3/8 SS

$

$

Not available

19

Generac 0F5447

BRKT M UFFLER

$223.99

$

Usually ships in 2-12 days

0

20

(1) 0F6166

PIPE LH MUFFLER SIDE

$

$

Not available

(2) 0F6166

PIPE LH MUFFLER SIDE

$

$

Not available

21

2) 0F6166A

PIPE RH MUFFLER SIDE

$

$

Not available

23

Generac 0D3159

FLANGE, EXHAUST

$57.99

$

In Stock, only 1 left!

0
