QT05554KNANA - Generac 55kW Home Standby Generator (SN: 5728049 - 5728049) (2009) C3 Cooling System & Fan Drive (0F3586) Parts Diagram

55kW Home Standby Generator

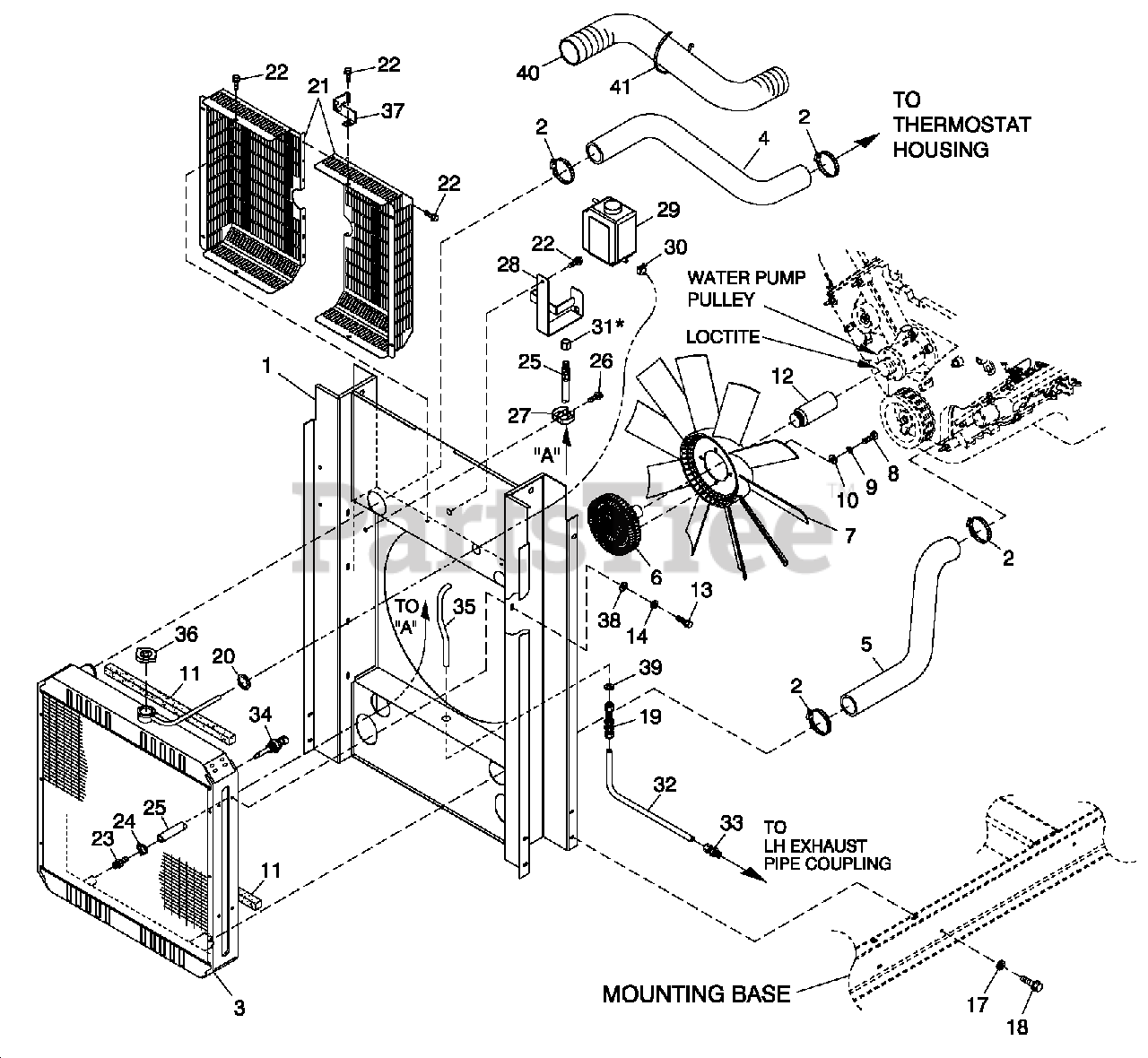

C3 Cooling System & Fan Drive (0F3586) Parts Diagram

  • Title

1

Generac 0F3144

WELDMENT RAD SUPPORT C3 (22")

$

$

Not available

2

Generac 035685

CLAMP HOSE #281.32-2.25

$

$

Not available

3

Generac 0F2857A

RADIATOR 581 X 585 X 70 CPL LH

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$2273.99

$

Usually ships in 2-12 days

0

4

Generac 0F4168

HOSE UPPER RADIATOR C3

$89.99

$

Usually ships in 2-12 days

0

5

Generac 0F4169

HOSE LOWER RADIATOR C3

$83.99

$

Usually ships in 2-12 days

0

6

Generac 0E7854

CLUTCH COOLING FAN

$1234.99

$

Usually ships in 2-12 days

0

7

Generac 0F2820

FAN 22" DIA10 BLADE

$154.99

$

Usually ships in 2-12 days

0

8

Generac 051756

SCREW HHC M10-1.5X 20 G8.8

$

$

Not available

9

Generac 046526

WASHER LOCK M10

$

$

Not available

10

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

11

Generac 052250

TAPE FOAM 1 X 1 (23" LG)

$

$

Not available

12

Generac 0F4412

SPACER FAN 6.8L

$136.99

$

Usually ships in 2-12 days

0

Generac 0F4412A

SPACER FAN 5.4L

$

$

Not available

13

Generac 039253

SCREW HHC M8-1.25X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

14

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

17

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

18

Generac 0C8566

SCREW HHFC M6-1.0X20 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

19

Generac 0F4765

FTG CMPN BLKHD 3/8" OD TUBE BRS

$70.99

$

Usually ships in 2-12 days

0

20

Generac 089685

GROMMET.75X.12X.50

$

$

Not available

21

Generac 0F5589

GUARD FAN C3 CPL

$232.99

$

Usually ships in 2-12 days

0

22

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

23

Generac 055596

BARBED STR 3/8 NPTX 3/8

$

$

Not available

24

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

25

Generac 069860E

HOSE DRAIN ASSY 28"

$59.99

$

Usually ships in 2-12 days

0

26

Generac 045764

SCREW HHTT M4-0.7X8BP
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

27

Generac 065852

SPRING CLIP HOLDER .37-.62

$

$

Not available

28

Generac 080712

BRKT COOLANT RECOVERY TANK

$

$

Not available

29

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

30

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

31

Generac 069811

CAP HEX 1/4 NPT BRASS

Note: ITEM 31 IS INCLUDED WITH ITEM 25.

$

$

Not available

32

Generac 0F4770

TUBE FAN CLUTCH PREHTR LOWR C3

$71.99

$

Usually ships in 2-12 days

0

33

Generac 089514

FTG CMPR 3/8TUBE X 3/8 NPT W/FERL

$

$

Not available

34

Generac 0E2507

PROBE COOLANT LEVEL 3/8NPTF (USE WITH HARN P/N 0F5990 & 0F5991)

Note: FOR H & G PANELS ORDER 0H50530SRV. FOR R-200,R-200A,R-200B, R-200C ORDER 0H50540SRV. FOR EXTERNAL MOUNTED PROBES IN ALUM. BLOCKS & ALL OTHER PRODUCT ORDER 0E2507.

$192.99

$

Usually ships in 2-12 days

0

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF (USE WITH HARN P/N 0H2595 & 0H3072)

$48.99

$

Usually ships in 2-12 days

0

35

Generac 0F4767

TUBE FAN CLUTCH PREHTR UPPR C2

$87.99

$

Usually ships in 2-12 days

0

36

Generac 090283

CAP RADIATOR 13 PSI

$

$

Not available

37

Generac 0F2776A

BRACKET SIGNAL CONDITIONER

$3.99

$

Usually ships in 2-12 days

0

38

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

39

Generac 022132

WASHER FLAT 9/16 ZINC

$

$

Not available

40

Generac 077043J

CONDUIT FLEX 2.0"ID

$

$

Not available

41

085662

TIE WRAP UL 14.6 X.14 BLK

$

$

Not available
