QT05554GNSNA - Generac 55kW Home Standby Generator (SN: 6053259 - 6464714) (2011) Gas Engine Pistons, Rods, And Crank Parts Diagram

55kW Home Standby Generator

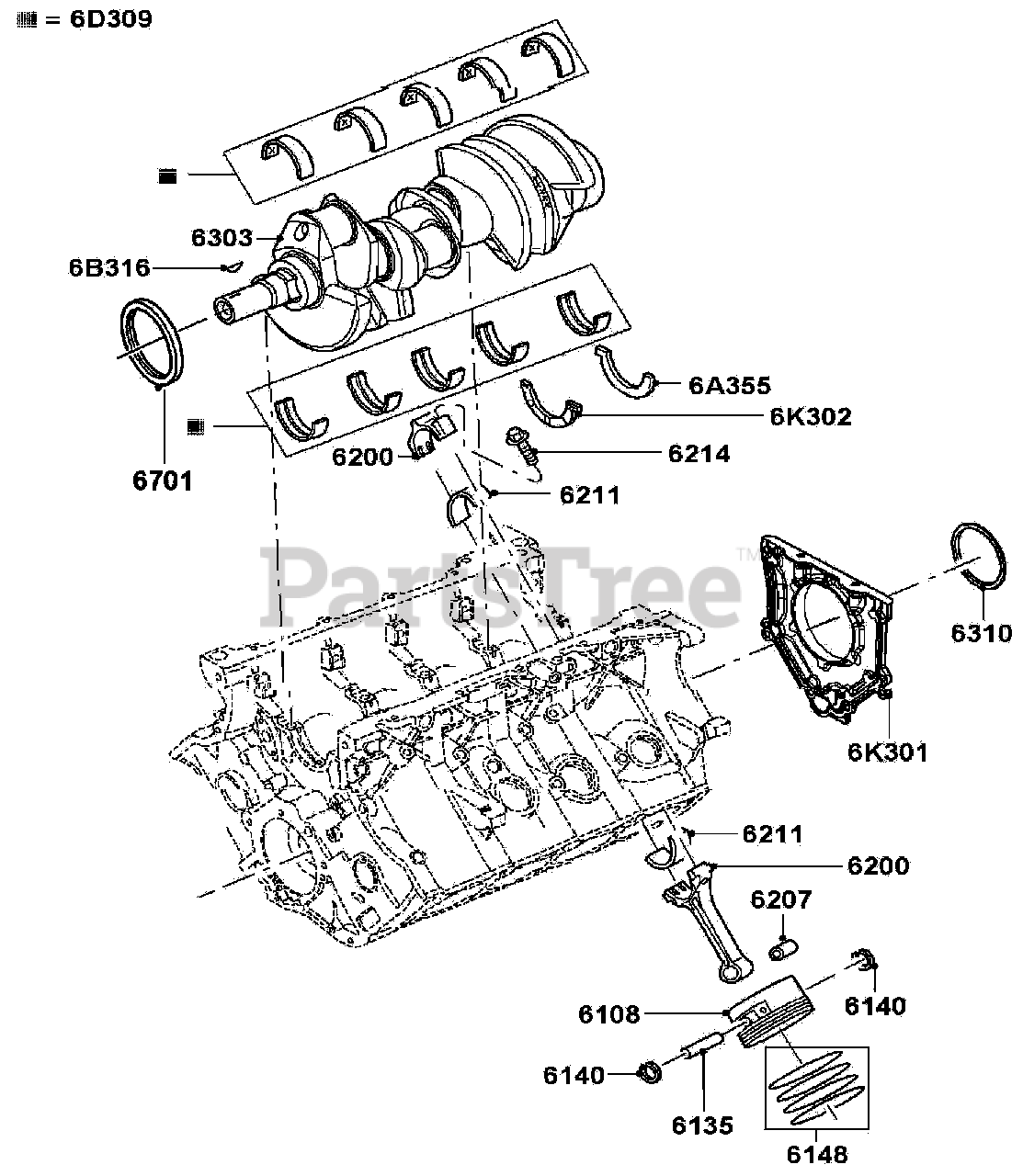

Gas Engine Pistons, Rods, And Crank Parts Diagram

  • Title

6108

Generac 0F1960A115

PISTON, STD GRADE 2

$388.99

$

Usually ships in 2-12 days

0

6108

Generac 0F19600136

PISTON, STD GRADE 3

$674.99

$

Usually ships in 2-12 days

0

6135

Generac 0F19600137

PIN, PISTON

$40.99

$

Usually ships in 2-12 days

0

6140

Generac 0D34540113

RETAINER, PISTON PIN

$7.99

$

Usually ships in 2-12 days

0

6148

Generac 0F19600138

RINGSET, STD

$465.99

$

Usually ships in 2-12 days

0

6148

Generac 0F1960A143

RINGSET, .010"/.25MM OVER SIZE

$570.99

$

Usually ships in 2-12 days

0

6148

Generac 0F1960A144

RINGSET, .020"/.50 MM OVER SIZE

$687.99

$

Usually ships in 2-12 days

0

6200

Generac 0F1960A153

ROD ASSY, CONNECTING

$349.99

$

Usually ships in 2-12 days

0

6207

Generac 0F7316C125

BUSHING, PIN

$44.99

$

Usually ships in 2-12 days

0

6211

Generac 0F73160117

BEARING, ROD STD.

$29.99

$

Usually ships in 2-12 days

0

6211

Generac 0F1960A141

BEARING, ROD, .020"/.50MM, UNDER SIZE

$127.99

$

Usually ships in 2-12 days

0

6214

Generac 0D34540120

BOLT, ROD

$24.99

$

Usually ships in 2-12 days

0

6K301

Generac 0F73160148

RETAINER, REAR OIL SEAL--LESS SEAL

$206.99

$

Usually ships in 2-12 days

0

6K302

Generac 0F1960A155

BEARING, THRUST, LOWER

$33.99

$

Usually ships in 2-12 days

0

6303

Generac 0F1960A177

CRANKSHAFT

$

$

Currently unavailable

6306

Generac 0F73160130

GEAR, CRANK TIMING (NOT SHOWN)

$126.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F19600141

BEARING, MAIN, STD.GRD.1, POS.#1

Note: ORDER 0D34540133 WHICH IS THE SAME FORD BEARING USE 0D34540133 BEARING, STD GR

$95.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A118

BRNG,MAIN, STD.GRD.2, POS#1

$92.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A119

BRNG,MAIN, STD.GRD.3, POS#1

$102.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F19600142

BRNG, MAIN STD. GRD1, POS#2.3,4,& 5

$73.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A120

BRNG, MAIN STD. GRD2, POS#2.3,4,& 5

$90.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A121

BRNG, MAIN STD, GRD3, POS#2,3,4, & 5

$107.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A122

BRNG, MAIN, .010"OR 25MM UNDER SIZE, GRD1, POS#1

$453.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A123

BRNG, MAIN, .010"OR 25MM UNDER SIZE, GRD2, POS#1

$297.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A124

BRNG, MAIN, .010"0R 25MM, UNDR SZ. GRD.3, POS#1

$453.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A125

BRNG, MAIN, .010 OR 25MM, UNDR SZ, GRD 1, POS#2,3,4,&5

$375.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A126

BRNG, MAIN,.010 OR 25MM,UNDR/SZ, GRD 2, POS#2,3,4,&5

$258.99

$

Usually ships in 2-12 days

0

6D309

Generac 0F1960A127

BRNG, MAIN,.010 OR 25MM,UNDR/SZ, GRD.3, POS#2,3,4,&5

$

$

Currently unavailable

6B316

Generac 0F73160147

KEY, CRANKSHAFT, 3/16"X1.40" WOODRUFF

$15.99

$

Usually ships in 2-12 days

0

6A355

Generac 0F1960A116

THRUST WASHER KIT

$168.99

$

Usually ships in 2-12 days

0

6310

Generac 0F19600146

OIL SLINGER, REAR CRANKSHAFT

$80.99

$

Usually ships in 2-12 days

0

6701

Generac 0F8286F152

SEAL, CRANKSHAFT, REAR OIL

$150.99

$

Usually ships in 2-12 days

0
