QT04842JNAN - Generac 48kW Home Standby Generator (SN: 5146214 - 5239478) (2008) Cpl Alternator Direct Excitation (0G5899) Parts Diagram

48kW Home Standby Generator

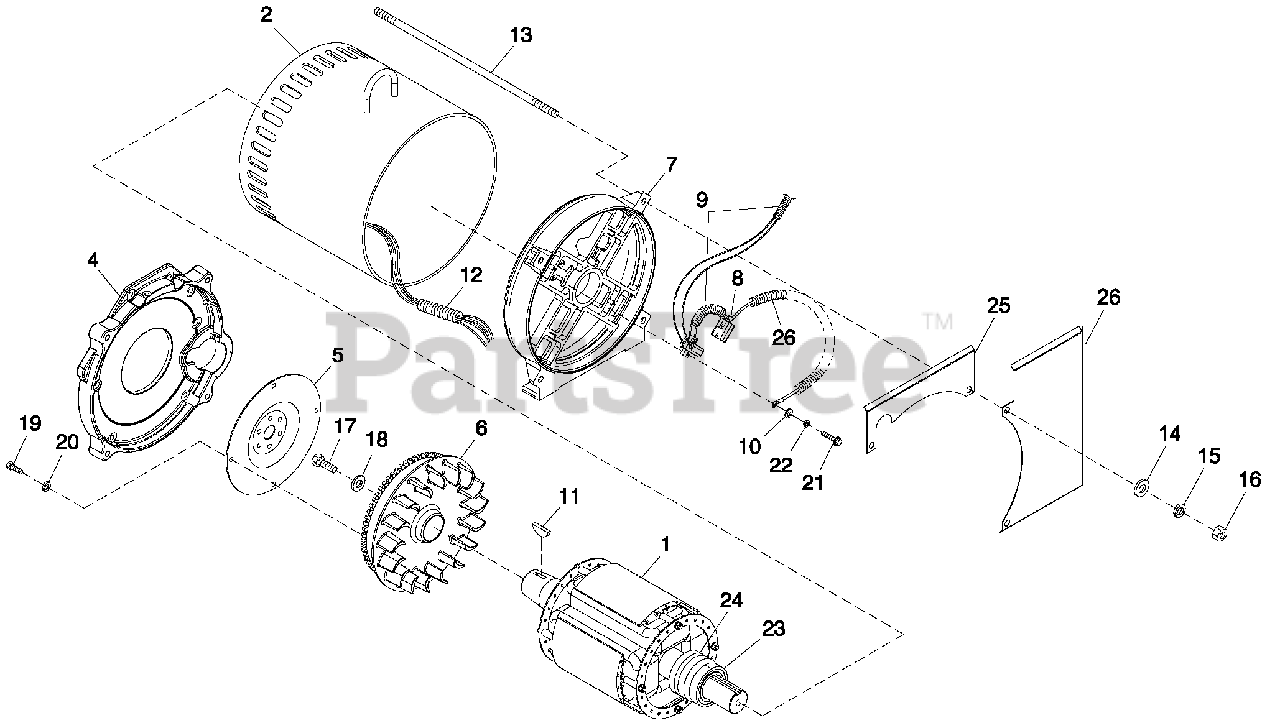

Cpl Alternator Direct Excitation (0G5899) Parts Diagram

  • Title

1

Generac 0G6568

RTR 390 45AD1 CPL

Note: MUST SHIP VIA LTL CANNOT SHIP UPS OR FED EX.

$3398.99

$

Usually ships in 2-12 days

0

Generac 0G6562

RTR 390 35AD1 CPL

$

$

Not available

Generac 0G6564

RTR 390 35KD1 CPL

$

$

Not available

Generac 0G6570

RTR 390 45KD1 CPL

$4418.99

$

Usually ships in 2-12 days

0

2

Generac 0G6569

STR 390 45AD1 CPL

$4418.99

$

Usually ships in 2-12 days

0

Generac 0G6563

STR 390 35AD1 CPL

$

$

Not available

Generac 0G6566

STR 390 35KD1 CPL

$

$

Not available

0G6565

STR 390 35GD1 CPL

$

$

Not available

Generac 0G6572

STR 390 45KD1 CPL

$

$

Not available

Generac 0G6571

STR 390 45GD1 CPL

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$4078.99

$

Usually ships in 2-12 days

0

Generac 0G6365

STR 390 45JD1 CPL

$

$

Not available

3

0C9708

INSTR HYPOT TEST (NOT SHOWN)

$

$

Not available

4

ENGINE ADAPTER

$

$

Not available

5

FLEXPLATE

$

$

Not available

6

Generac 0F5767B

ASSY FLYWHEEL CPL W/40MM FAN B

$1415.99

$

Usually ships in 2-12 days

0

7

Generac 0E5706

REAR BEARING CARRIER 390/DRCT

$922.99

$

Usually ships in 2-12 days

0

8

Generac 0F7874

ASSY BRUSH HOLDER 390/HSB

$193.99

$

Usually ships in 2-12 days

0

9

Generac 077043A

CONDUIT FLEX .38" ID (60")

Note: ON MODELS 0020102 AND 0041643 USE 077043B

$1.99

$

Usually ships in 2-12 days

0

10

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

11

Generac 023454

KEY WOODRUFF #E

$

$

Not available

12

Generac 077043E

CONDUIT FLEX 1.0" ID (35" LG)

$3.99

$

Usually ships in 2-12 days

0

13

Generac 04576100BU

STUD M14-2.0 570 G5ZINC

$63.99

$

Usually ships in 2-12 days

0

14

Generac 052646

WASHER FLAT M14

$

$

Not available

15

Generac 043123

WASHER LOCK M14

$

$

Not available

16

Generac 051779

NUTHEXM14-2.0 G8 YEL CHR

$

$

Not available

17

Generac 0A2601

SCREW HHCM16-2.0X 45 G8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$15.99

$

Usually ships in 2-12 days

0

18

Generac 072879

SPACER .69 X 2.75 X .37 ST/ZNC

$

$

Not available

19

Generac 0F8408

SCREW HHC M10-1.50 X 16 G10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$2.49

$

In Stock, only 1 left!

0

20

Generac 046526

WASHER LOCK M10

$

$

Not available

21

Generac 0C3993

SCREW HHTT M 4-0 .7X 2 5B P

$3.99

$

Usually ships in 2-12 days

0

22

Generac 022264

WASHER LOCK #8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

23

Generac 047248

BALL BEARING-45 MM

Note: ROTOR REPLACEMENT PARTS

$

$

Not available

24

Generac 070892

SLIP RING MACHINED

Note: ROTOR REPLACEMENT PARTS

$

$

Not available

25

Generac 0G0588

GUARD REAR BEARING CARRIER

$

$

Not available

26

Generac 0G0587

GUARD REAR BEARING CARRIER

$79.99

$

Usually ships in 2-12 days

0
