QT04542GNAN - Generac 45kW Home Standby Generator (SN: 4879826 - 5096512) (2008) Engine Common Parts 4.2L G3 (0G5964) Parts Diagram

45kW Home Standby Generator

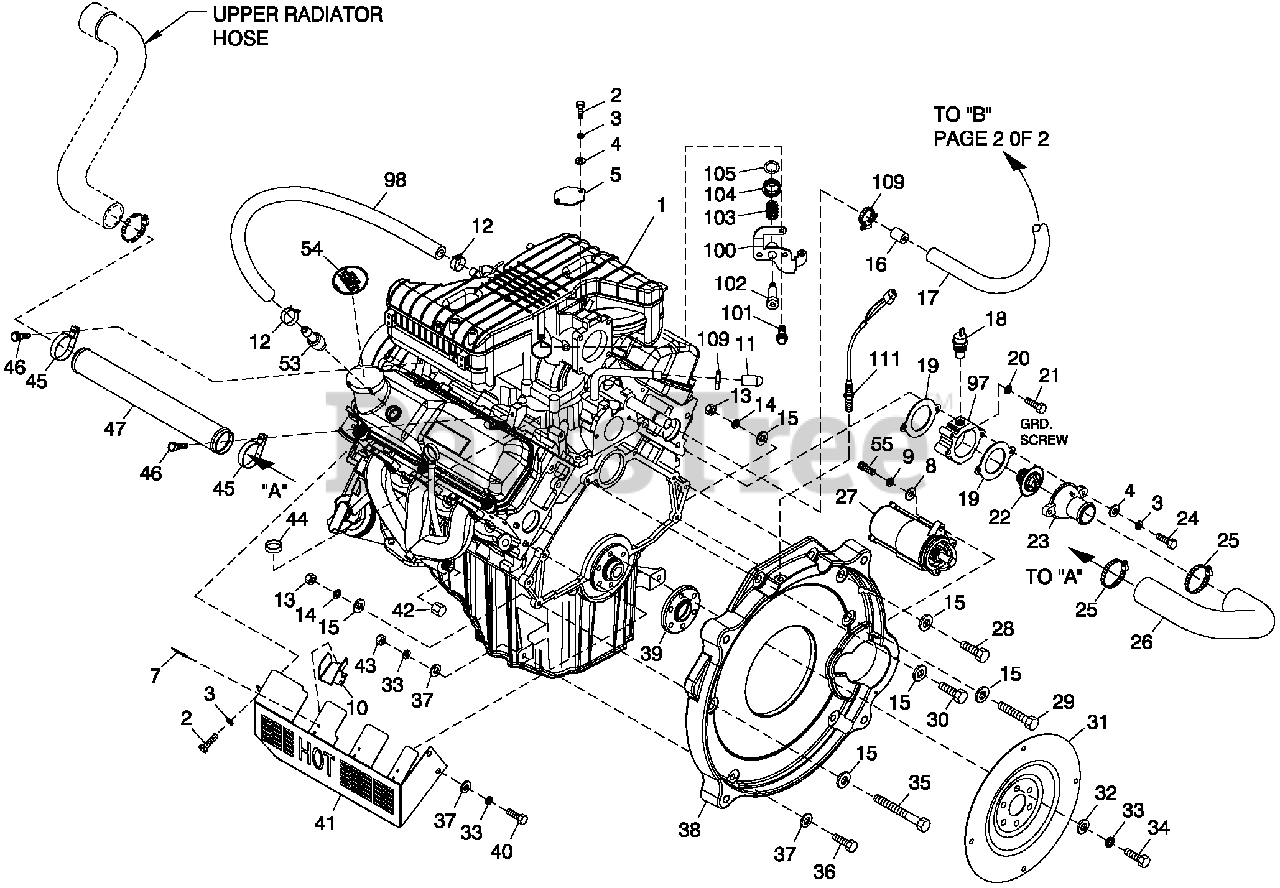

Engine Common Parts 4.2L G3 (0G5964) Parts Diagram

  • Title

1

Generac 0G4969

ENGINE 4.2LG3(FWD)

Note: FOR A FIELD REPLACEMENT ENGINE, PIB14-01-ERPL MUST BE FILLED OUT, SUBMITTED AND APPROVED BEFORE A REPLACEMENT ENGINE CAN BE ORDERED. CONTACT THE SERVICE DEPARTMENT WITH ANY QUESTIONS.

$

$

Not available

2

Generac 047411

SCREW HHCM6-1.0X16C8.8
(Superseded to G047411)

$1.99

$

In Stock, Qty 6

0

3

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

4

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

5

Generac 0E6585

COVER IAC ACTUATOR

$19.99

$

Usually ships in 2-12 days

0

6

Generac 0G6434

SHIELD SPARK PLUG BOOT RH

$24.99

$

Usually ships in 2-12 days

0

7

Generac 036261

RIVET POP .125X.275SS

$

$

Not available

8

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

9

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

10

0G6426

SHIELD SPARK PLUG BOOT LH

$

$

Not available

11

Generac 077996A

CAP ANTIFREEZE 5/8"ID X 2.5"LG

$4.49

$

Usually ships in 2-12 days

0

12

Generac 048031L

CLAMP HOSE BAND 1.0"

$12.99

$

Usually ships in 2-12 days

0

13

Generac 045773

NUT HEX M12-1.75 G8YELCHR

$

$

Not available

14

Generac 051769

WASHER LOCK M12

$

$

Not available

15

Generac 049808

WASHER FLAT M12

$

$

Not available

16

Generac 0G5971

RESTRICTOR COOLANT BYPASS

$977.99

$

Usually ships in 2-12 days

0

17

Generac 0G5474

HOSE COOLANT BYPASS 4.2L

$51.99

$

Usually ships in 2-12 days

0

18

Generac 0A6751

SWITCH HI-TEMP 245D X 3/8NPT

$93.99

$

Usually ships in 2-12 days

0

19

Generac 0G5511

GASKET THERMOSTAT 4.2L

$5.99

$

Usually ships in 2-12 days

0

20

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

21

Generac 074908

SCREW HHTT M5-0.8X10BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

22

THERMOSTAT 192 DEGREE

Note: SUPPLIED WITH ENGINE

$

$

Not available

23

THERMOSTAT HOUSING

Note: SUPPLIED WITH ENGINE

$

$

Not available

24

Generac 020753

SCREW HHCM6-1.0X 60 C8.8

$

$

Not available

25

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

26

Generac 0G5464

HOSE RADIATOR REAR

$42.99

$

Usually ships in 2-12 days

0

27

Generac 0G7461

STARTER MOTOR 12V

Note: ORDER P/N 0G7461RWK AND 1 PC. OF 0G0860. ORDER 0D5418 FOR 0H5610 5.4L ENG (80KW) GEARBOX

$

$

Currently unavailable

28

Generac 052645

SCREW HHC M12-1.75 X 30 C8.8

$

$

Not available

29

Generac 068406

SCREW HHCM12-1.75X 60 C10.9

$

$

Not available

30

Generac 053557

SCREW HHC M12-1.75 X 40 C8.8

$

$

Not available

31

Generac 0F9965D

FLEX PLATE G3

$50.99

$

Usually ships in 2-12 days

0

32

Generac 0F3844

WASHER FLAT .45X1.00

$4.99

$

Usually ships in 2-12 days

0

33

Generac 046526

WASHER LOCK M10

$

$

Not available

34

Generac 0G3757

SCREW HHCM10-1.0X30 C10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$6.99

$

Usually ships in 2-12 days

0

35

Generac 068407

SCREW HHC M12-1.75X 90 C10.9

$

$

Not available

36

Generac 049541

SCREW HHCM10-1.5X35 C8.8

$

$

Not available

37

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

38

Generac 0G5231

ENGINE ADAPTER 4.2L MACHINED

$

$

Currently unavailable

39

Generac 0G5586

SPACER FLEXPLATE 4.2L

$129.99

$

Usually ships in 2-12 days

0

40

Generac 051756

SCREW HHCM10-1.5X20 C8.8

$

$

Not available

41

Generac 0G5730

HEAT SHIELD EXH 4.2L LH

$161.99

$

Usually ships in 2-12 days

0

42

0G5649

CAP TUBE M22-1.5 STEEL

$

$

Not available

43

Generac 045772

NUT HEX M10-1.5 G8 YEL CHR

$

$

Not available

44

Generac 0E0992A

PLUG EXPANSION 14 OD

$3.49

$

Usually ships in 2-12 days

0

45

Generac 055934V

CLAMP VINYL 1.5 X .281 Z

$4.99

$

Usually ships in 2-12 days

0

46

SCREW HHC M6-1.0 X 25 LONG

Note: SUPPLIED WITH ENGINE

$

$

Not available

47

Generac 0F6746

TUBE UPPER COOLANT

$87.99

$

Usually ships in 2-12 days

0

48

Generac 052619

SCREW HHC M5-0.8X 20 G8.8

$

$

Not available

49

Generac 0F2842

IGNITION COIL ASSY

$246.99

$

Usually ships in 2-12 days

0

50

Generac 052618

SCREW HHC M5-0.8X 12 C8.8
(Superseded to G052618)

$0.99

$

Usually ships in 2-12 days

0

51

Generac 0G5843

HARN ENG 4.2L G3 R-200 4P (NOT SHOWN)

$2143.99

$

Usually ships in 2-12 days

0

52

0G6368

BRACKET IGNITION COILS G3 4.2L

$

$

Not available

53

Generac 0G1818

VALVE PCV G3

Note: THIS PVC APPLIES TO THE FOLLOWING ENGINE: 0G1274 4.6L ENG(RWD) G3

$185.99

$

Usually ships in 2-12 days

0

54

Generac 0F5114

DECAL REFER TO OWNERS MANUAL

$0.99

$

Usually ships in 2-12 days

0

55

Generac 049821

SCREW SHC M8-1.25 X 30 G12.9
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

56

Generac 0G54910ST03

WELDMENT IDLER BRACKET 4.2L

$331.99

$

Usually ships in 2-12 days

0

57

Generac 0D8028

PULLEY GROOVED ENGINE IDLER

$114.99

$

Usually ships in 2-12 days

0

58

Generac 0D8025

BOLT HEX FL HD M8-1.25X 28

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$22.99

$

Usually ships in 2-12 days

0

59

Generac 0G1738A

CAP ANTIFREEZE RUBBER 8.5DIA

$3.99

$

Usually ships in 2-12 days

0

60

Generac 048031M

CLAMP HOSE BAND .75

$1.49

$

Usually ships in 2-12 days

0

61

Generac 0G5601

STRAP INTAKE ACTUATOR

$13.99

$

Usually ships in 2-12 days

0

62

Generac 077996

CAP ANTIFREEZE 5/8"IDX 1.2"LG

$

$

Not available

63

Generac 0G55800ST03

BRACKET DC ALTERNATOR LH 4.2L

$83.99

$

Usually ships in 2-12 days

0

64

Generac 0E9868A

ALTERNATOR DC W/OUT PULLEY

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$519.99

$

Usually ships in 2-12 days

0

65

Generac 0G0638A

SPACER ALTERNATOR 4.2L G3

$24.99

$

Usually ships in 2-12 days

0

66

Generac 048031C

CLAMP HOSE BAND .50

$0.99

$

In Stock, Qty 5

0

67

Generac 0E9974

CAP VINYL 3/8"IDX1"DP BLK

$2.49

$

Usually ships in 2-12 days

0

68

Generac 0A8584

SWITCH OIL PRESSURE 10PSI 2P

Note: ON RV 410 AND 760 AND HSB 530 USE 0D9235

$168.99

$

Usually ships in 2-12 days

0

69

Generac 043107

SCREW HHC M8-1.25X 25 C8.8

$

$

Not available

70

Generac 0F3217

SPACER DC ALTERNATOR PULLEY

Note: On 6.8 liter units utilizing a 0F3216D pulley, the following note applies: If the current pulley is black, order a pulley and spacer kit 0F3216DSRV. If the current pulley is silver, this spacer may be used with the existing pulley.

$8.49

$

Usually ships in 2-12 days

0

71

Generac 0F3216B

PULLEY 117 OD DC ALTERNATOR

$34.99

$

Usually ships in 2-12 days

0

72

Generac 0E2808

SCREW HHC M10-1.5X 160 C8.8

$10.99

$

Usually ships in 2-12 days

0

73

SCREW HHC M8-1.25X 115 LONG

Note: SUPPLIED WITH ENGINE

$

$

Not available

74

SCREW HHC M8-1.25X 105 LONG

Note: SUPPLIED WITH ENGINE

$

$

Not available

75

Generac 0G54220ST11

TUBE COOLANT LOWER RADIATOR

$52.99

$

Usually ships in 2-12 days

0

76

Generac 0G5759

O-RING 1-1/2" X 1 -3/4" X 1/8"

$3.99

$

Usually ships in 2-12 days

0

77

Generac 0G5748

PULLEY WATER PUMP 4.2L

$28.99

$

Usually ships in 2-12 days

0

78

Generac 043116

SCREW HHC M6-1.0X12G8.8
(Superseded to G043116)

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$0.99

$

Usually ships in 2-12 days

0

79

SPACER 46.5 O.D. X 15 I.D. X 5 THK.

Note: SUPPLIED WITH ENGINE

$

$

Not available

80

SCREW HHC M14-1.5X 40 LONG GRADE 10.9

Note: SUPPLIED WITH ENGINE, APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

81

Generac 0D3488E

BELT SERPENTINE 71.04"

$141.99

$

Usually ships in 2-12 days

0

82

Generac 0G5258

HARMONIC BALANCER REWORK 4.2L

$999.68

$

Usually ships in 2-12 days

0

83

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

84

Generac 045770

SCREW HHC M5-0.8X 10 C8.8
(Superseded to G045770)

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$0.99

$

In Stock, only 1 left!

0

85

Generac 0G55790ST03

BRACKET DC ALTERNATOR RH 4.2L

$35.99

$

Usually ships in 2-12 days

0

86

Generac 052677

WASHER NYLON .50 X .87 X .06

$

$

Not available

87

Generac 077456

ADAPTER M12-1.75 X 3/8NPT

$

$

Not available

88

Generac 055596

BARBED STR 3/8NPTX 3/8

$

$

Not available

89

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

90

Generac 069860C

HOSE OIL DRAIN ASSY 21"

$55.99

$

Usually ships in 2-12 days

0

91

Generac 080826

SCREW HHC M6-1.0X12SS

$

$

Not available

92

Generac 083896

WASHER LOCK 1/4-M6SS
(Superseded to G083896)

$7.99

$

Usually ships in 2-12 days

0

93

Generac 084929

WASHER FLAT 1/4 SS

$

$

Not available

94

Generac 0G5729

HEAT SHIELD EXH 4.2LRH

$93.99

$

Usually ships in 2-12 days

0

95

Generac 0E6593

CAP VINYL .5"IDX1.0"DP BLK

$1.99

$

Usually ships in 2-12 days

0

96

Generac 048031J

CLAMP HOSE BAND .63

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

97

Generac 0G5515

ADAPTER THERMOSTAT

$67.99

$

Usually ships in 2-12 days

0

98

Generac 0G0321

HOSE COOL 5/8"ID 250#WP (24" LG)

$26.99

$

Usually ships in 2-12 days

0

99

Generac 035579

BSHG RDCR HEX 1/4 TO 1/8

$

$

Not available

100

0G6275

TUBE ASSY EGR OUTLET REWORK

$

$

Not available

101

SCREW HHC M6-1.0X 15 LONG

Note: SUPPLIED WITH ENGINE

$

$

Not available

102

Generac 0G6393

BOLT STRIP 3/8-16X1-1/4

$7.49

$

Usually ships in 2-12 days

0

103

Generac 0G6406

SPRING COMPRESSION .711 X 1.00

$14.99

$

Usually ships in 2-12 days

0

104

Generac 0G6274

PRESSURE RELIEF VALVE

$75.99

$

Usually ships in 2-12 days

0

105

O-RING 29mm I.D. X 36mm O.D. X 3.5mm

Note: SUPPLIED WITH ENGINE

$

$

Not available

106

Generac 0G6382

SPARK PLUG WIRE SET 4.2L

$105.99

$

Usually ships in 2-12 days

0

107

RETAINER SPARK PLUG WIRE - LOOSE TYPE

Note: SUPPLIED WITH ENGINE

$

$

Not available

108

RETAINER SPARK PLUG WIRE - ATTACHED TYPE

Note: SUPPLIED WITH ENGINE

$

$

Not available

109

Generac 057823

CLAMP HOSE#10.56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

110

Generac 0G6542

HARN LOW OIL PRESSURE SWITCH

$106.99

$

Usually ships in 2-12 days

0

111

Generac 0D2244M

ASSY MAGPICKUP(3/8-24 MALE)

Note: FOR INFORMATION ON THIS MAGNETIC PICK-UP REFER TO PIB08-15-S WIB07-08-S

$245.99

$

Usually ships in 2-12 days

0
